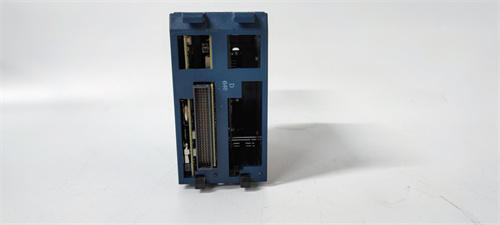

GE IC695CPE310 Product Overview

GE IC695CPE310 is a high-performance central processing unit(CPU)module in the GE Fanuc PACSystem RX3i series.The following is a detailed introduction to GE IC695CPE310.

Main features

Powerful processing power

Equipped with a 1.1 GHz Atom processor,it has high-speed computing and data processing capabilities to meet the requirements of complex control and monitoring tasks.

The Boolean logic execution speed is 0.72 ms/k,which can respond quickly to system instructions.

Large-capacity storage

It has 10 MB of memory for storing information such as applications,data and historical records.

Equipped with battery backup memory to ensure that data is not lost in the event of a power outage.

Multiple communication interfaces

Support Ethernet interface,support two connection rates of 10Mb/s and 100Mb/s,to achieve data exchange and communication with other devices and systems.

Equipped with RS-485 and RS-232 serial ports,it supports multiple communication protocols such as Modbus RTU slave,SNP,serial I/O,etc.

Scalability and Programmability

Functional expansion and customized configuration through expansion modules or interface cards.

Supporting programming languages​​such as ladder diagram,structured text,C or function block diagram,users can program and configure according to their needs.

System status indication

The LED indicator light with labels on the device housing can be green,red,off or flashing,which is convenient for users to verify system status and improve troubleshooting efficiency.

Application scenarios

GE IC695CPE310 is mainly used for real-time control of machines,processes and material handling systems.It communicates with I/O and intelligent option modules through dual-purpose PCI and serial backplanes to achieve precise control and monitoring of industrial processes.

Technical parameters

Processor:1.1 GHz Atom processor.

Memory:10 MB.

Communication interface:Ethernet(10/100 Mb/s),RS-485,RS-232.

I/O capacity:can accommodate up to 32 K bits of discrete input and discrete output signals,and 32 K words of analog input and output capacity.

Number of blocks:Supports up to 512 blocks,each up to 128 KB.
