ABB CP410M 1SBP260181R1001 Control Panel
Item Number:CP410M 1SBP260181R1001
Brand:ABB
Lead Time: In stock
Description:Control Panel
Payment: T/T
Product Description

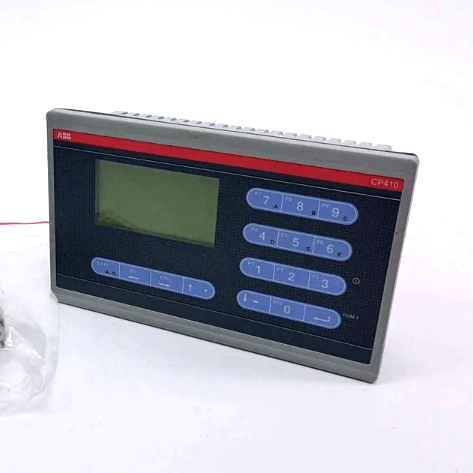

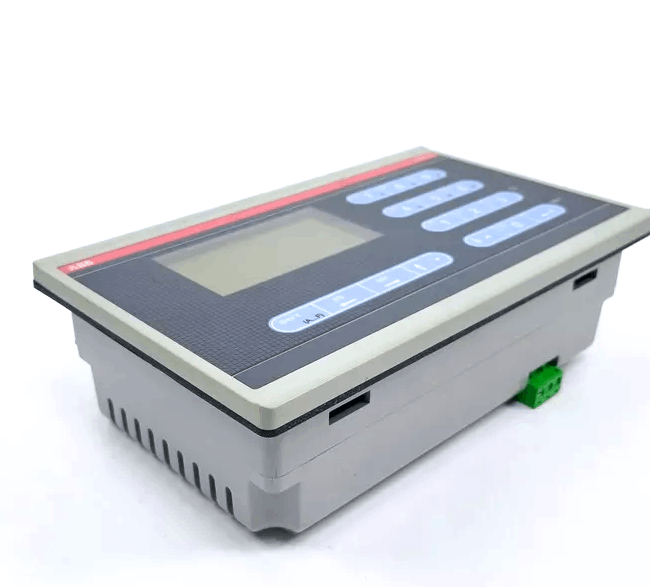

ABB CP410M 1SBP260181R1001 control panel is a human-machine interface (HMI) device with a 3-inch STN LCD display (supports backlight display, suitable for low-light environments), physical button design, and easy operation with gloves.
Its functions include creating parameter displays, alarm lists, control buttons, etc. It has an IP65/NEMA 4X protection level, is waterproof and dustproof, and is suitable for a variety of ABB drives (such as ACS series inverters) and control systems.
Fuctions & Features

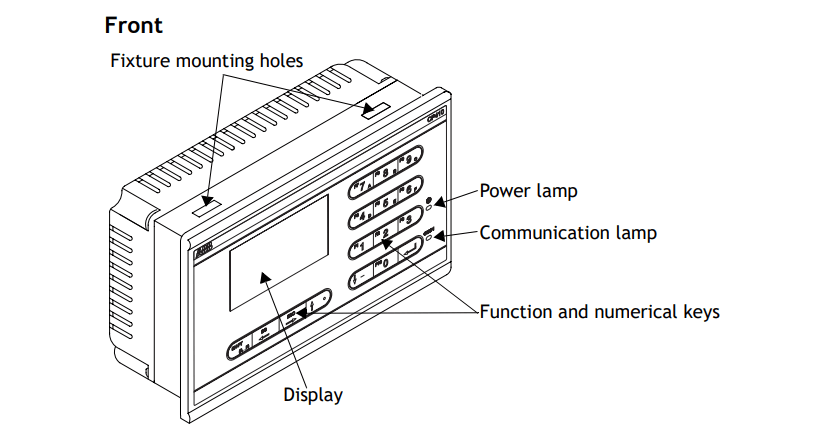

Display and operation:

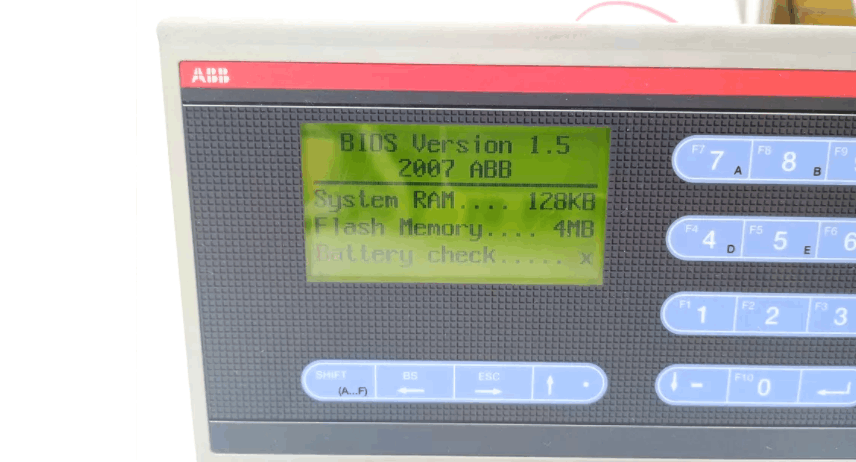

3-inch STN monochrome LCD screen (160×80 pixels, 16 grayscale levels).
16 function keys support fast parameter setting and operation.
Text + graphic display, each screen supports 10 lines of text. Widescreen ratio (2:1).
Communication and interface:
Communication protocols are Modbus RTU, AC500 Modbus ASCII, etc. (depending on the drive model).

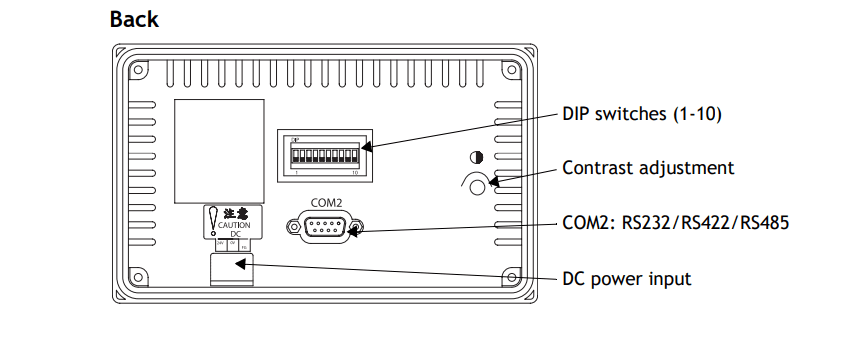

Serial interface: 2×RS232/RS422/RS485 (configurable).
USB/Profibus is not supported.
Software and programming:
Development tool: CP400Soft (supports macro and ladder logic).
User memory: 4 MB ROM (can store 4000 kB application).
Security features: 9 levels of password protection.
Specifications
|
Parameter |
CP410M |
|
Front panel, W x H x D |
173.0 x 105.5 x 7.8 mm |
|
Mounting depth |
51.8 mm |
|
Cut - out dimensions |
160.8 x 93.3 mm |
|
Front panel protection |
IP 65/NEMA 4X (indoor use only) |
|
Keypad specifications |
16 mechanical switches. Lifetime of each switch is over 500,000 activations. Membrane overlay is resistant to most solvents and chemicals. |
|
Weight |
0.37 kg |
|
Communication ports |
RS232/RS422/RS485 |
|
Flash ROM |
4 MB |
|
RAM |
128 KB |
|
CPU |
32-bit RISC |
FAQs
Q: What is the brand?
A:ABB
Q: What is the type?
A: Control Panel
Q: What is the warranty period?
A: 1 year.
Q: What is the delivery time?
A:in stock
Q: Where is the shipping location?
A: Xiamen.
Q: What is the payment method?
Answer: T/T (Telegraphic Transfer).
