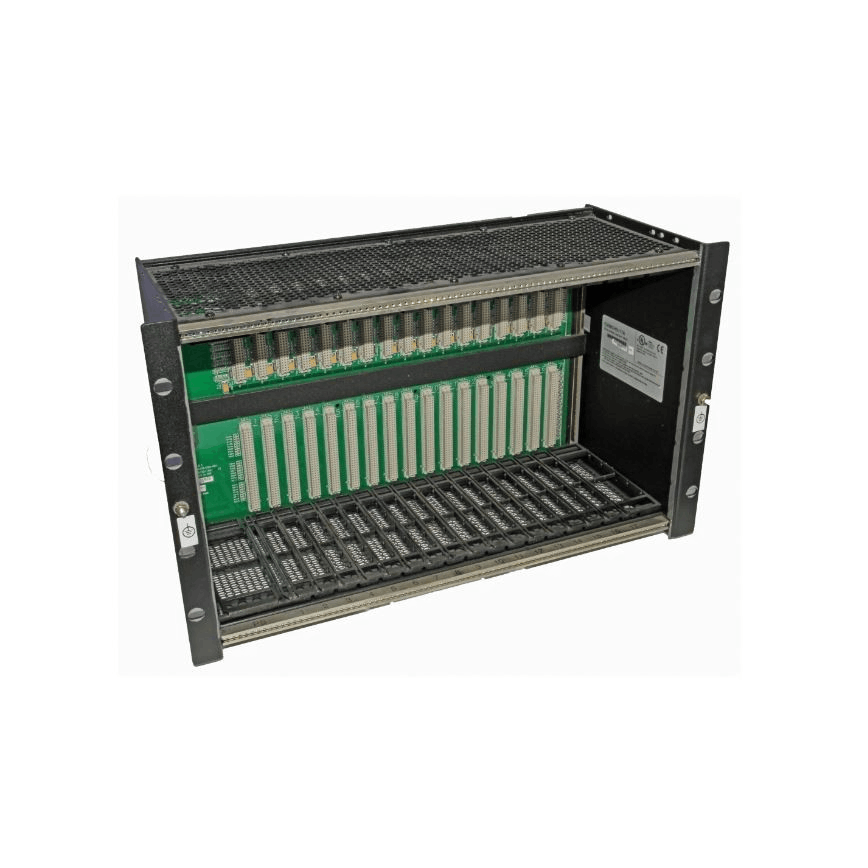

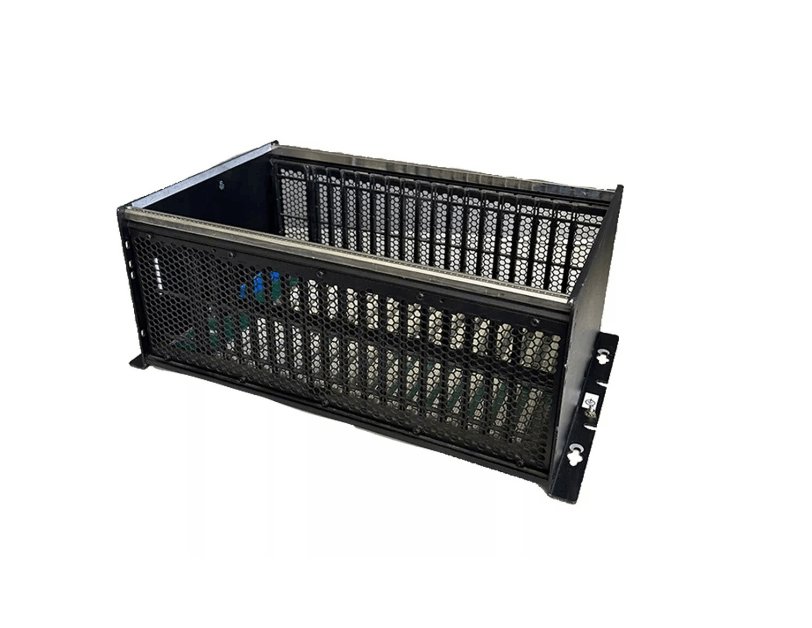

General Electric IC698CHS117 17-slot Rack
Item Number:IC698CHS117
Brand: GE
Lead Time: In stock
Description:17-slot Rack
Payment: T/T
Product Description
GE IC698CHS117 is a 17-slot rack for the PACSystems RX7i series that supports mixed configurations of RX7i CPUs, I/O modules, Series 90-70 I/O, and VME modules. Its backplane connector spacing is 0.8 inches (20.3 mm) and can accommodate single-width RX7i modules, VME modules, and single-width Series 90-70 modules (double-width Series 90-70 modules occupy two slots).
This rack is an open device and must be installed in an enclosure with a protection level of at least IP54. The rear-mounted rack is suitable for 10-inch (254 mm) deep enclosures, and the front-mounted rack can be installed in a standard 19-inch (483 mm) rack.
Function & Features
- The GE IC698CHS117 accommodates both single-width modules (0.8-inch pitch) and double-width Series 90-70 modules (occupying two slots).
- The GE IC698CHS117 provides slot sensing, allowing I/O modules to be addressed without jumpers or DIP switches.
- The GE IC698CHS117 automatically daisy-chains interrupt acknowledge and bus grant signals, eliminating the need for a blank slot jumper (IC697ACC772).
- The GE IC698CHS117 is equipped with a J2 backplane connector that supports high-speed VME transmission of up to 64 bits of data per cycle.
Specifications
|
Parameter |
Details |
|
Product Name |
IC698CHS117 |
|
Number of Slots |
17 slots on 0.8" centers + power supply slot. (CPU installed in slot 1). |
|
Maximum Current (RX7i Power Supplies) |
|
|
-100W Supply |
|
|
+5V |
20 amps (Total output power: 100W) |
|
+12V |
2 amps |
|
-12V |
1 amp |
|
- 350W Supply |
|
|
+5V |
60 amps (Total output power: 350W) |
|
+12V |
12 amps |
|
-12V |
4 amps |
|
I/O References |
User-configurable via programming/configuration software. |
|
Dimensions |
|
|
-Height × Width × Depth |
11.15" × 19.00" × 7.5" (283mm × 483mm × 190mm) |
FAQ
Q: What is the brand?
A: GE
Q: What is the type?
A: 17-slot Rack
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
