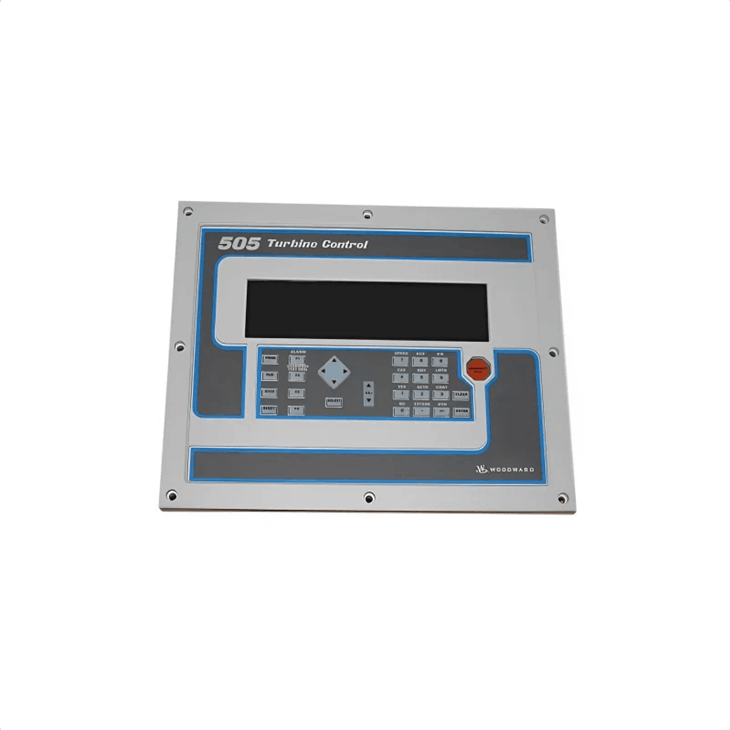

Woodward 9907-162 505 Turbine Control Module

Woodward 9907-162 505 Steam Turbine Control Module is a steam turbine digital controller. It manages the start, operation, shutdown and load of the turbine. It provides full digital speed and load control, automatically adjusting for optimal operation based on feedback. It supports multiple control modes such as speed, load and pressure control for users to choose according to the situation. It automatically handles the start and stop of the turbine by adjusting the valve opening, steam flow and speed. In addition, it has built-in comprehensive protection functions, including overspeed, underspeed, overload protection and other key parameter abnormality detection.

Fuctions & Features

• Speed ​​and load control: Woodward 9907-162 has a fully digital speed and load control function, which can automatically adjust the speed and load of the turbine based on real-time feedback to keep the turbine in optimal operating condition.

• Multiple control modes: Woodward 9907-162 supports multiple operating modes, including speed control, load control, pressure control, etc. Users can select the most appropriate control mode through control methods according to different operating conditions.

• Automatic start and stop function: Automatically manage the start and shutdown process of the turbine. Woodward 9907-162 automatically adjusts the valve opening, steam flow and turbine speed according to the preset operation sequence.

• Built-in protection function: Woodward 9907-162 is equipped with comprehensive protection functions, such as overspeed protection, underspeed protection, overload protection and abnormal detection of other key parameters.

Specification

Appilications

• Paper machine drive steam turbine
• Ship steam turbine propulsion system
• Blast furnace blower drive
• Natural gas compressor drive steam turbine
