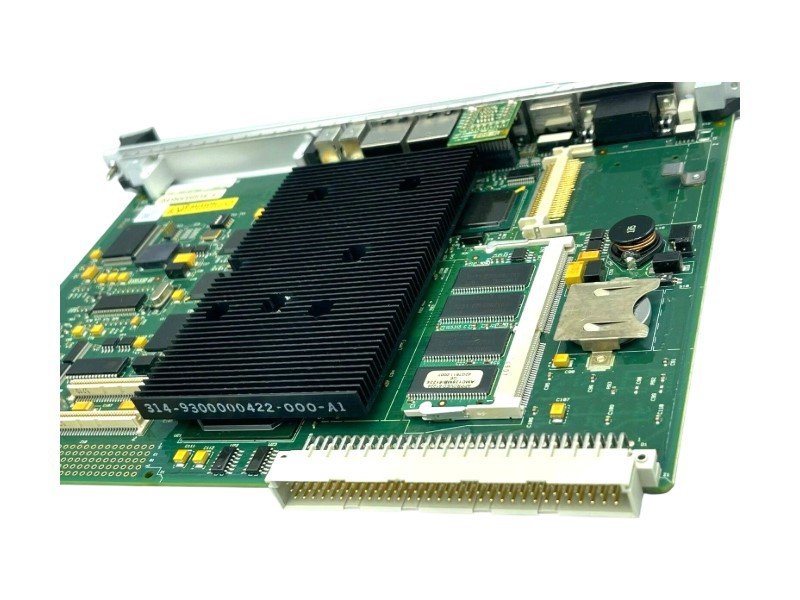

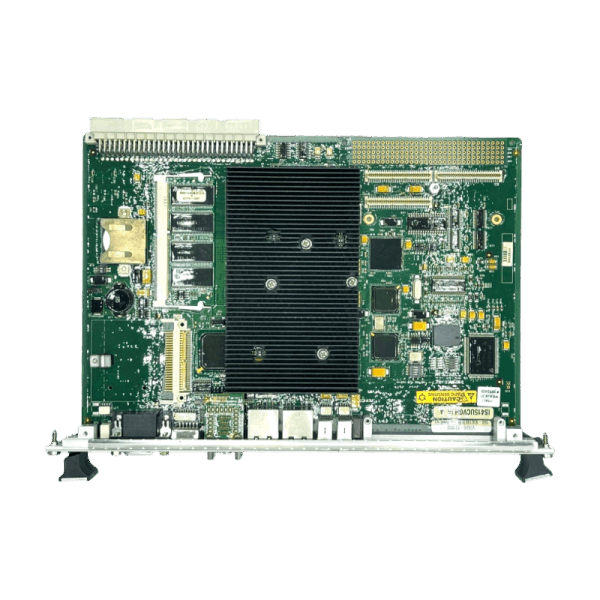

General Electric IS415UCVGH1A VME Controller Card
Product Description
GE IS415UCVGH1A is a VME controller card, a core processing unit powered by a 650 MHz Intel Ultra Low Voltage Celeron processor.
The IS415UCVGH1A network architecture features dual Ethernet ports: one port is dedicated for peer-to-peer communication and configuration with the Universal Data Hub (UDH), while the other can be used for a dedicated Ethernet Global Data (EGD) network or to run Modbus on a separate logical subnet.
Function & Features
Communication Links:
The IS415UCVGH1A provides the communication links between the controller, I/O boards, and the IONet system control network.
ID Management:
The IS415UCVGH1A manages the IDs of all boards in the rack and their corresponding terminal boards.
Multi-Ports:
The IS415UCVGH1Ahas three IONet ports, one for each channel (R, S, and T).
Specifications
|
Parameter |
Details |
| Series | IS415UCVGH1A |
|
Product Type |
|
| Processor Frequency | 650 MHz |
| Flash Memory | 128 MB |
| Ethernet Functionality |
- Port 1: Used for UDH (Universal Data Hub) peer-to-peer communication and configuration
- Port 2: Configurable for private EGD network or Modbus TCP |
| Status Indicators |
- P (Power): Green: Power indicator
- B (Booting): Red: BIOS booting status - I (IDE Activity): Yellow: Storage access activity - R (Board Reset): Red: Board reset status |
| Dimension | 303*210(MM) |
| Weight | 830g |
FAQ
Q: What is the brand?
A: GE
Q: What is the type?
A:VME Bus Master Controller Board
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
