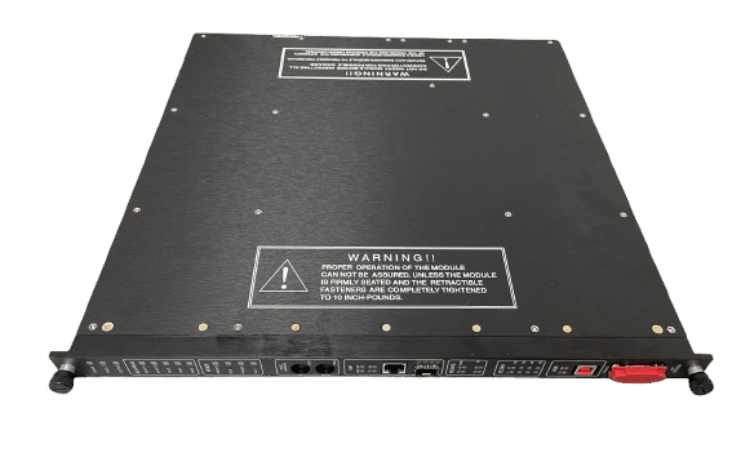

3009 | Tricnoex | Main Processor
Product Description
Triconex 3009 main processor is a module designed for the Tricon v11.x system. It is equipped with a dedicated I/O processor, responsible for data exchange with I/O modules, and adopts a triple module redundant (TMR) architecture.
The TriBus bus (triple redundant communication bus) connects each chassis through the backplane to achieve cross-chassis data synchronization. Its hardware design is based on the high-performance QorIQ P1021 dual-core processor, equipped with multi-level cache, isolated communication bus and multiple diagnostic mechanisms.
Function&Features
- Data synchronization: Input data is collected through the I/O bus, stored in the memory table of the main processor, and synchronized to other MPs through TriBus.
- Fault handling: Modules are automatically isolated, hot-swappable replacement is supported, and the system operates in a downgraded state (fault tolerance mode).
- Comprehensive hardware self-test: firmware memory verification, RAM static test, CPU instruction set and floating-point unit verification.
Specifications
|
Parameter |
Value |
|
Main Processor |
QorlQ P1021, Dual - core processor, 800 MHz |
|
Cache |
32 KB L1 Cache, 2 MB L2 Cache |
|
Memory |
256 MB DRAM (without battery backup) 2 MB SRAM (with battery backup) 128 MB Flash PROM |
|
Communication Interface - Protocol |
RS-485 |
|
Communication Interface - Baud rate |
2 Mbps |
|
I/O Interface - Protocol |
RS-485 |
|
I/O Interface - Baud Rate |
375 Kbps |
|
Logic power |
14 Watts |
FAQs
Q: What is the brand?
A: Triconex
Q: What is the type?
A:Main Processor
Q: What is the warranty?
A: 1 year
Q: Where is the shipping lovation?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
