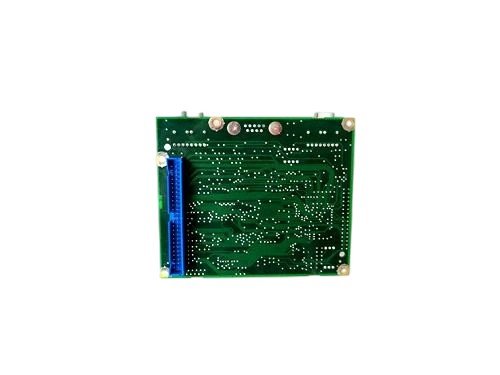

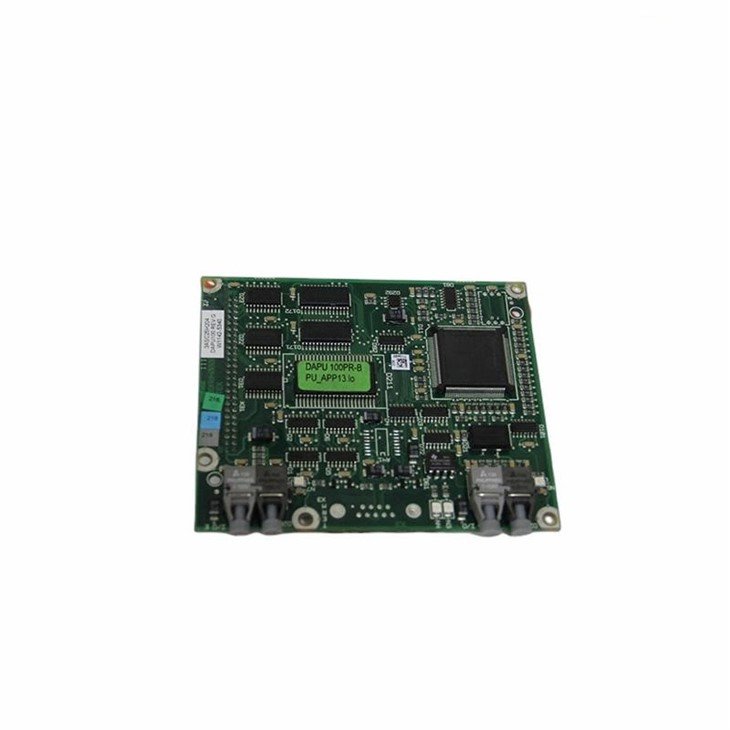

ABB DAPU 100 3ASC25H204 Control Board
Product Description
ABB DAPU 100 (3ASC25H204) control board is part of the ABB inverter spare parts series. This control board is mainly responsible for:
Core Control: Executing algorithms for soft start and soft stop, and controlling the triggering angle of the thyristor (SCR).
System Communication: Serving as a communication hub, connecting the upper-level control system, other soft starters, and local input/output modules.
Function & Features
- -X5 Interface: The ABB DAPU 100 (3ASC25H204) provides a universal serial programming port that supports multipoint RS-485 bus connections (using the DADT 114/124 modules).
- Vertical Communication: The ABB DAPU 100 (3ASC25H204) can be connected to an upper-level TCP/IP controller (via the appropriate conversion module), enabling the soft starter to connect to industrial networks.
- Horizontal Communication: The ABB DAPU 100 (3ASC25H204) can be set to dynamic horizontal communication mode, allowing data exchange with other ASTAT soft starters. This can be used to coordinate the start/stop sequence of multiple motors.
Specifications
| Parameter | Details |
|---|---|
| Product Model | DAPU 100 |
| Part Number | 3ASC25H204 |
| Electrostatic Discharge (ESD) | ±8 kV (Contact Discharge) |
| Radio Frequency Electromagnetic Field | 10 V/m |
| Fast Transient Burst | ±2 kV (Power Supply Lines) |
| Surge | ±1 kV (Line-to-Line), ±2 kV (Line-to-Ground) |
| Weight | 0.3kg |
FAQ
Q: What is the payment method?
A: T/T
Q: Is technical support available?
A:Yes, we have a professional technical team to address technical issues.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
