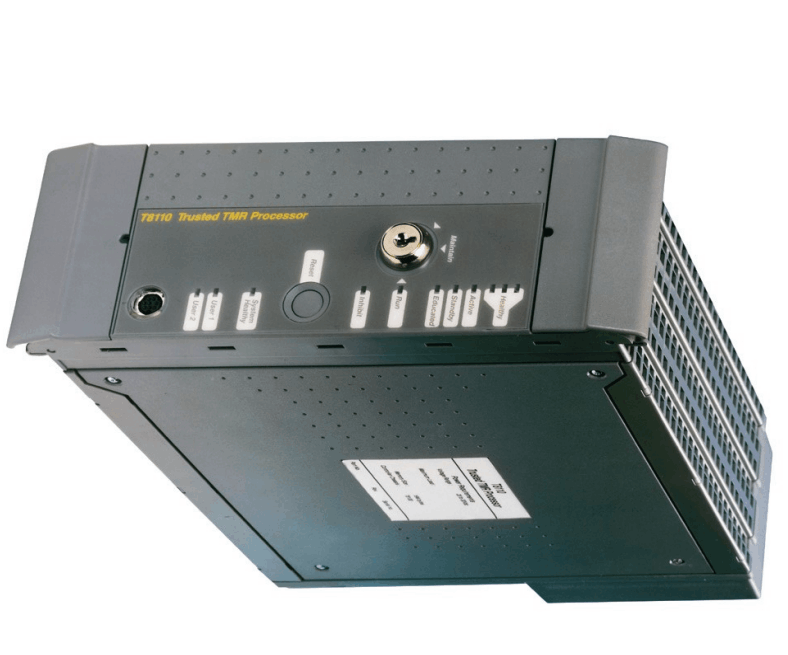

ICS Triplex T8110B Trusted TMR Processor

ICS Triplex T8110B Trusted TMR processor is based on a triple modular redundant (TMR) architecture. The T8110B contains three processor fault isolation regions (FCRs), each housing a Motorola Power PC processor and its associated memory. The processors are configured in lockstep, using a two-out-of-three mechanism to eliminate computational divergence.

ICS Triplex T8110B module also features a fault isolation region on the front panel, housing non-critical simplex functions such as a diagnostic port, a maintenance enable switch, serial communication drivers, and an IRIG-B interface.

Function & Features

Three independent processing units (FCRs):

1. Motorola PowerPC series processors
2. Dedicated memory system
3. Independent power conversion circuitry

The T8110B can detect multiple fault types:

1. Detects transient faults
2. Intermittent faults
3. Permanent faults

Hierarchical handling strategy:

1. All faults are logged in the system fault history (with timestamps);
2. Permanent faults trigger a front panel LED alarm;
3. The fault handler automatically performs a resynchronization process.

Specifications

FAQ

Q: What is the brand?

A:ICS Triplex(Rockwell)

Q: What is the type?

A:Trusted TMR Processor

Q: What is the warranty?

A: 1 year

Q: Where is the shipping location?

A: Xiamen

Q: What is the payment method?

A: T/T
