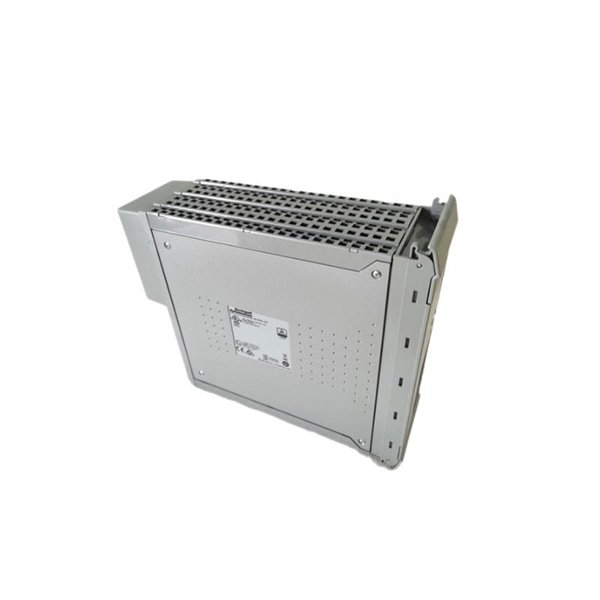

ICS Triplex T8846 Speed ​​Monitor Input Field Termination Assembly

The ICS Triplex T8846 Speed Monitor Input Field Termination Assembly is an essential component for industrial monitoring systems. This field termination assembly is designed to provide high-integrity, fault-tolerant connections between field devices and the control system, specifically for speed monitoring applications. It is used in conjunction with ICS Triplex safety systems to monitor and safeguard critical machinery like turbines, motors, and generators, ensuring that they operate within their safe operational limits.

The T8846 is a modular component that interfaces directly with the ICS Triplex Tricon controller, offering reliable data transmission from field sensors to the system. It supports multiple input types, ensuring that it can be used with a wide range of industrial speed sensors and other monitoring devices.

Product Specifications

Applications

The ICS Triplex T8846 Speed Monitor Input Field Termination Assembly is primarily used for applications where machinery speed needs to be monitored, and safe operational limits must be maintained. Its high-integrity design makes it ideal for critical control systems in various industrial sectors. Some of the key applications include:

• Turbine Monitoring: Used to monitor the speed of turbines in power plants, ensuring they operate within the specified limits to prevent over-speed or failure.
• Motor Control: Provides real-time speed data for motors in automation systems, helping to maintain optimal performance.
• Generator Protection: Monitors the speed of generators to ensure they operate within safe ranges, preventing damage from over-speeding.
• Safety Instrumented Systems (SIS): Integrates into safety-critical systems that require high-availability, fault-tolerant monitoring of critical machinery.
• Pump and Fan Monitoring: Ensures the safety and efficiency of pumps and fans by monitoring their operating speed and providing alerts for any deviations.
• Compressor Systems: Used in air and gas compressor systems to monitor rotational speed and protect against malfunction or damage.
• Oil & Gas: Monitors rotating equipment in oil and gas fields to maintain operational safety and performance.

Advantages

• High-Integrity Design: The T8846 is part of the Triple Modular Redundant (TMR) architecture, providing a fault-tolerant solution that ensures continuous data monitoring and system reliability.
• Wide Input Compatibility: The module supports a variety of signal types, including frequency inputs and analog signals (4-20 mA), making it suitable for a wide range of monitoring devices.
• Signal Conditioning: It includes built-in filtering and amplification to ensure accurate data transmission, reducing noise and improving signal quality.
• Rugged and Reliable: Designed to operate in harsh industrial environments, with an extended operating temperature range of -40°C to +70°C and IP20 protection.
• Easy Integration: Seamlessly integrates with the ICS Triplex Tricon controller, simplifying setup and configuration.
• Safety and Compliance: The module meets UL, CE, and ATEX certifications, ensuring its suitability for hazardous environments in industries such as oil & gas, chemical processing, and power generation.
• Compact Design: The module is compact and can be easily mounted on a DIN rail, saving space in control panels and cabinets.
