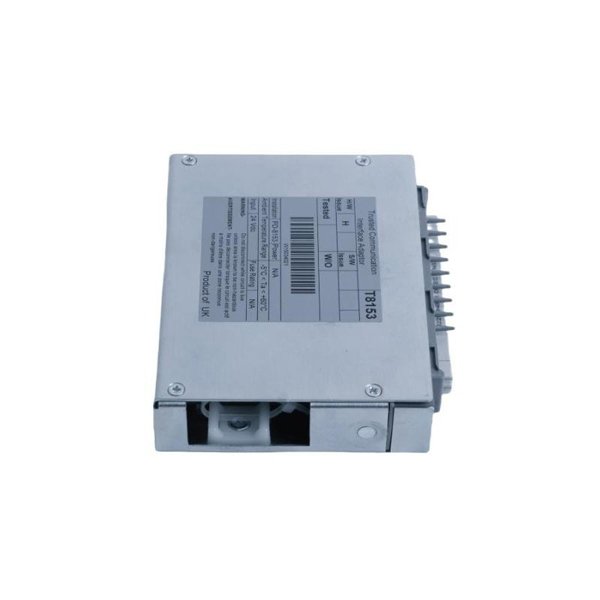

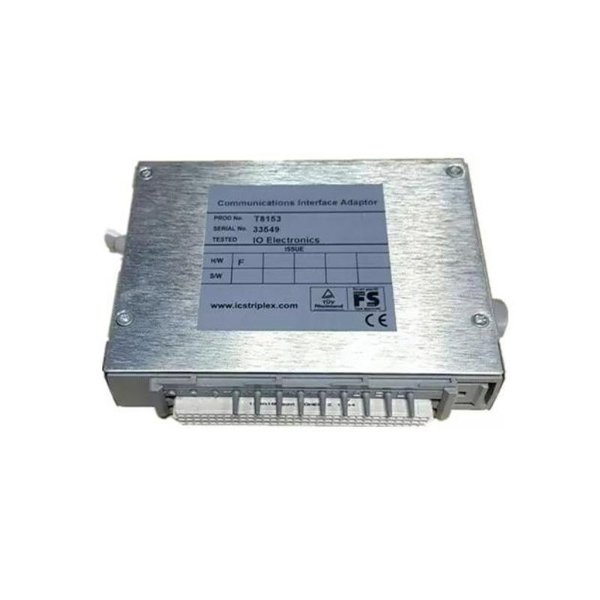

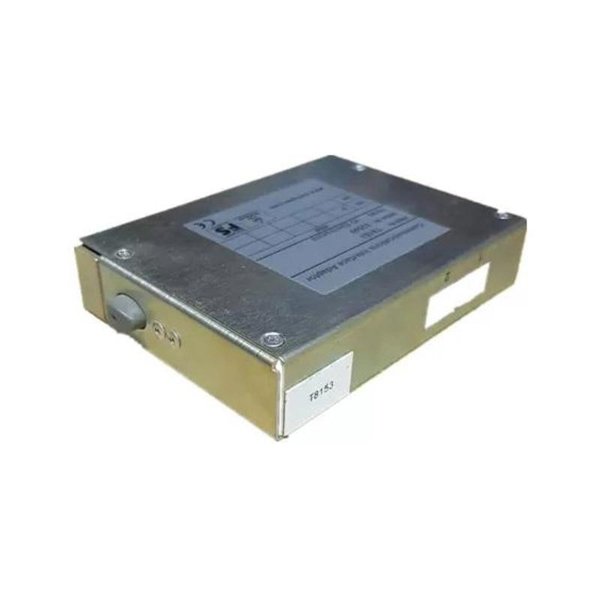

ICS Triplex T8153 Communications Interface Adapter

The ICS Triplex T8153 is a high-performance safety and control module designed for use in critical industrial applications where reliability, fault tolerance, and high availability are essential. As part of the Trusted TMR (Triple Modular Redundant) system, this module provides advanced fault-tolerant control for industries such as oil & gas, power generation, chemical processing, and manufacturing.

With a robust and modular architecture, the T8153 integrates seamlessly into the ICS Triplex Trusted System, ensuring a high level of operational safety. It is widely used in process automation, emergency shutdown systems (ESD), fire & gas (F&G) protection, and turbine control systems. The module employs triple modular redundancy (TMR) technology, allowing continuous operation even in the presence of hardware faults, making it an industry-leading choice for mission-critical applications.

Technical Specifications

Product Applications

The ICS Triplex T8153 module is widely used in industries that demand high-reliability safety and control systems. Key applications include:

• Oil & Gas: Used in offshore platforms, pipelines, and refineries for safety shutdown systems.
• Power Generation: Monitors and controls turbine operations, ensuring safe shutdown in emergencies.
• Chemical & Petrochemical: Provides process safety for hazardous chemical handling and storage.
• Manufacturing: Used in large-scale industrial automation to maintain fail-safe operations.
• Pharmaceuticals: Ensures precise control of batch processes and regulatory compliance.
• Water Treatment: Controls and monitors pumps, valves, and filtration processes in treatment plants.

Key Advantages

The ICS Triplex T8153 offers several advantages that make it a preferred choice for industrial safety applications:

1. Triple Modular Redundancy (TMR): Ensures continuous operation even if a fault occurs in one module.
2. High-Speed Processing: Fast response times for critical control applications.
3. Rugged Industrial Design: Built for harsh environments with high vibration and shock resistance.
4. Certified Safety Compliance: Meets SIL3 (IEC 61508), ATEX, CE, and UL standards.
5. High Availability & Reliability: Designed to operate 24/7 without interruptions.
6. Easy Integration: Seamless compatibility with the ICS Triplex Trusted System and other industrial networks.
7. Scalable & Expandable: Modular architecture allows adding more I/O modules as needed.
8. Low Maintenance Requirements: Self-diagnostics and predictive maintenance capabilities reduce downtime.
9. Efficient Power Consumption: Optimized to operate with minimal energy usage.
10. Remote Monitoring Capabilities: Supports modern SCADA and DCS systems for real-time data analysis.

Frequently Asked Questions (FAQ)

1. What is the ICS Triplex T8153 used for?

   • It is a TMR digital output module used in high-reliability control and safety systems.

2. What industries commonly use the T8153?

   • It is widely used in oil & gas, power plants, chemical processing, and industrial automation.

3. What is Triple Modular Redundancy (TMR)?

   • TMR is a fault-tolerant design where three redundant processors ensure system reliability.

4. Does the T8153 require special installation?

   • Yes, it must be rack-mounted within an ICS Triplex Trusted System.

5. What voltage does the module operate on?

   • It operates on 24V DC.

6. What is the weight of the T8153?

   • The module weighs 0.418 kg.

7. Can this module be integrated with SCADA systems?

   • Yes, it supports SCADA and DCS systems for remote monitoring.

8. What is its environmental rating?

   • It is rated IP20 and operates in temperatures from -25°C to +70°C.

9. Does the T8153 have SIL certification?

   • Yes, it is certified SIL3 (IEC 61508) for safety applications.

10. How many output channels does the module have?

• The exact number varies, but it supports multiple isolated digital outputs.
