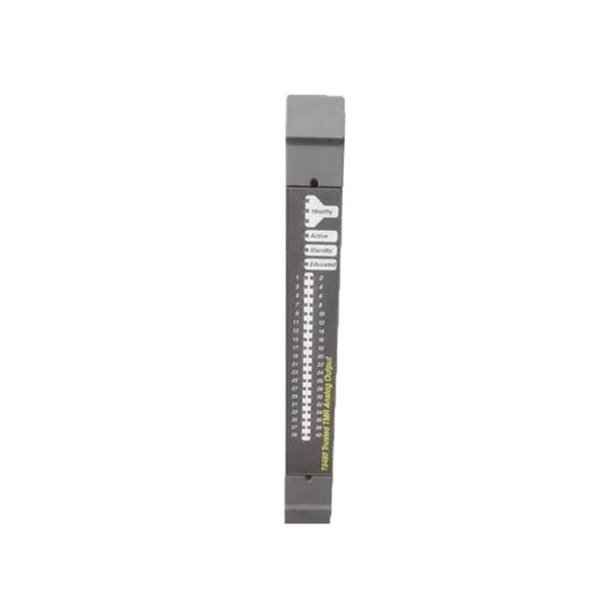

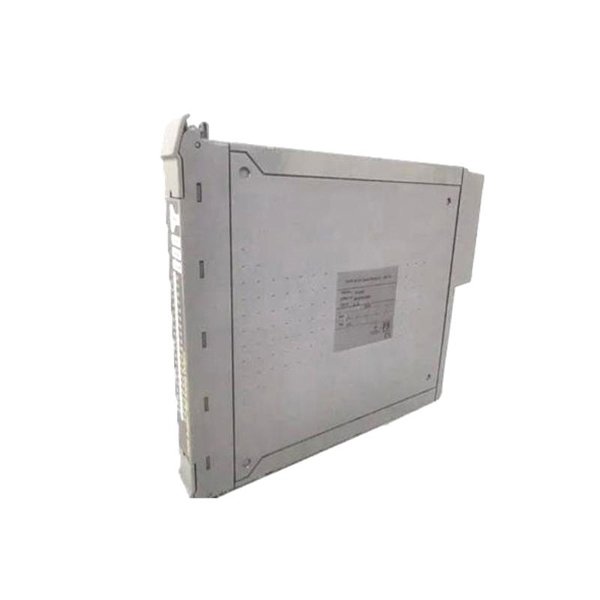

ICS Triplex T8480 Trusted TMR Analogue Output Module

The ICS Triplex T8480 Trusted TMR Analogue Output Module is designed for high-reliability applications where analogue signals need to be precisely controlled. With Triple Modular Redundancy (TMR), this module provides enhanced fault tolerance, ensuring that the system continues to operate even in the event of a failure in one of the modules. The T8480 module is commonly used in industries like oil & gas, chemical processing, nuclear power, and water treatment, where precision and safety are paramount.

The module features three independent output channels and utilizes diverse voting mechanisms to maintain integrity. Its robust design and flexible configuration options make it ideal for mission-critical control systems, delivering reliable performance even in the harshest of environments.

Product Specifications

Product Applications

The ICS Triplex T8480 Trusted TMR Analogue Output Module is widely utilized in critical process control systems where analogue signals are required to control actuators, valves, and other equipment with high precision. Its key applications include:

1. Safety Instrumented Systems (SIS) – Used in critical control loops where safety and reliability are crucial.
2. Oil and Gas Industry – Controlling actuators for safety valves and flow regulation systems in upstream and downstream operations.
3. Power Generation – Ensuring safe and reliable output for controlling turbines, boilers, and pumps.
4. Chemical Processing – Providing precise output control for chemical reactors and distillation columns.
5. Nuclear Power Plants – Managing critical control loops for reactor safety and cooling systems.
6. Water Treatment – Controlling dosing pumps and valves in water and wastewater treatment plants.
7. Manufacturing Automation – Precise control of machines, including robotic systems and automated lines.
8. Pipeline Control Systems – For controlling flow control valves and pressure regulators in pipelines.

The T8480 module’s Triple Modular Redundancy (TMR) ensures that the system maintains optimal functionality, even under harsh operating conditions.

Product Advantages

1. Triple Modular Redundancy (TMR) – Ensures continuous operation even in the event of module failure, providing high fault tolerance for critical systems.
2. Precise Output Control – With 16-bit resolution and ± 0.05% accuracy, it ensures reliable and accurate analogue output.
3. High Isolation – Provides 1500V isolation between output channels, increasing system reliability by preventing electrical interference.
4. Fast Response Time – The module offers a response time of less than 1 millisecond, making it suitable for high-speed control loops.
5. Wide Temperature Range – Operates reliably in temperatures ranging from -40°C to +70°C, making it suitable for extreme environments.
6. Space-saving Design – The compact 266 x 31 x 303 mm size allows for easy integration into tight spaces, ideal for dense control systems.
7. Easy Installation – Designed for 35mm DIN rail mounting, simplifying integration and reducing setup time.
8. Low Power Consumption – Consumes only 1.5W per channel, improving energy efficiency in large systems.
9. IP20 Protection – Provides a solid level of protection from dust and direct contact with electrical components in industrial environments.
10. Versatile and Flexible – Supports a wide range of industrial applications, ensuring it is a reliable choice for mission-critical systems across various sectors.
