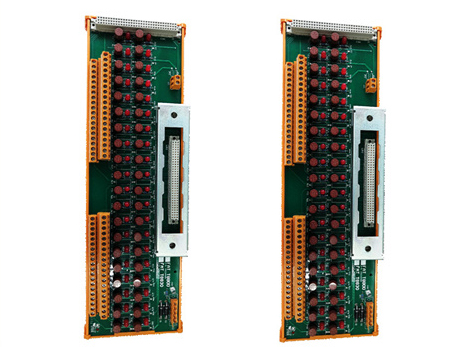

ICS Triplex T8800 Product Overview

ICS T8800 is a safety-critical digital input module produced by ICS Triplex Technologies and is part of the T8000 series.The ICS T8800 module is used to convert digital signals from field devices into signals that can be understood by the control system.It is often used to monitor the status of various devices and sensors and convert this information into digital data for use by the control system.

The module has a redundant design that ensures high reliability and availability and is suitable for a variety of industrial applications,including industrial control systems,process control systems,discrete manufacturing systems,and building automation systems.

Product parameters

Number of channels:40 channels

Input type:dry contact

Input voltage range:24 V DC

Input impedance:2kΩ

Accuracy:0.1%

Resolution:16 bits

Update rate:250 milliseconds

Power supply voltage:24 V DC

Power consumption:5 W

Operating temperature:-40°C to 85°C

Storage temperature:-55°C to 125°C

Relative humidity:5%to 95%(non-condensing)

Protection level:IP65

Vibration:5 g to 2 kHz

Shock:30 g

Product specifications

Dimensions:110 mm x 60 mm x 30 mm

Weight:200 g

Connector:D-SUB connector

Indicator:module status,channel status

Product features

Redundant design:ensure high reliability and availability.

Multi-channel design:with 40 digital input channels,it can receive multiple digital signals at the same time to improve the monitoring capability of the system.

High-speed data processing:It can quickly process the received digital signals and convert them into a data format recognizable by the control system to ensure the real-time performance and response speed of the system.

Easy to configure and integrate:It has a simple configuration and integration process,which can be easily connected and integrated with the existing automation system.

Fault diagnosis and alarm function:When an abnormal input signal is detected or the module itself fails,an alarm signal can be issued in time to help users quickly locate and solve the problem.

Powerful communication capabilities:It supports a variety of communication protocols and interfaces,and can communicate with the host computer,PLC or other intelligent devices to achieve data transmission and sharing.

Application fields

ICS T8800 modules can be used in various industrial fields,including manufacturing,process industries,energy and utilities,transportation,and construction.It is particularly suitable for safety-critical applications that require high reliability and availability,such as automation control systems in food and beverage,packaging,automotive,pharmaceuticals and other industries
