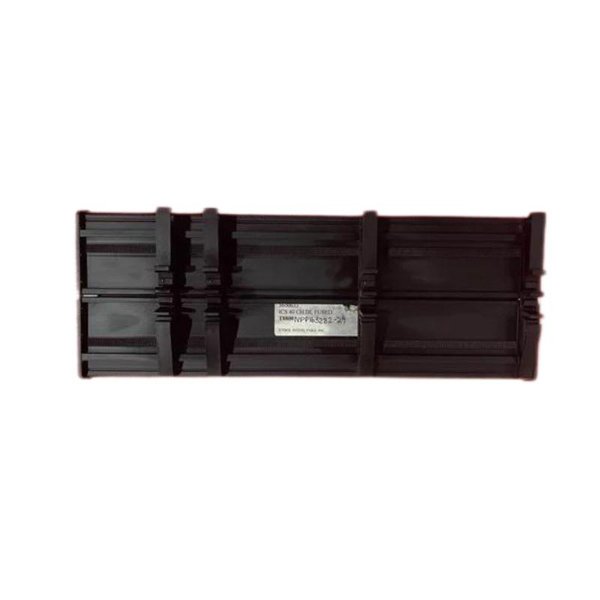

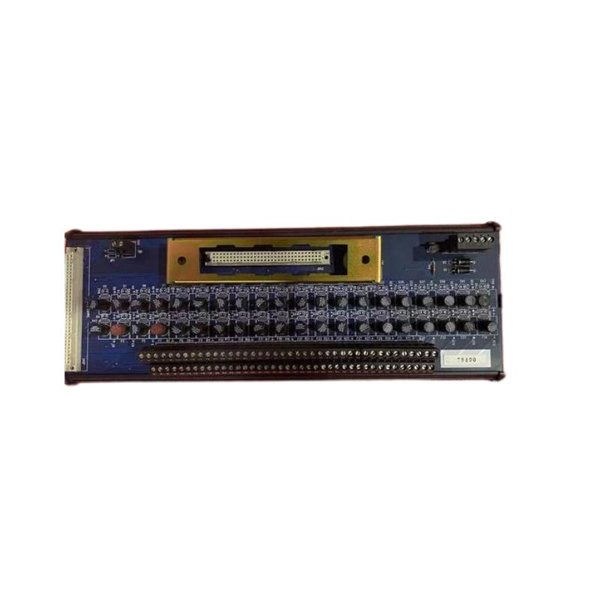

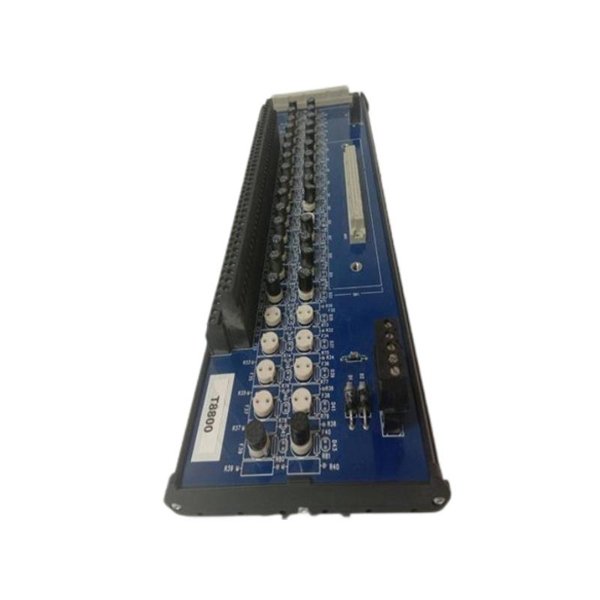

The ICS Triplex T8800 Digital Input Module is an essential component of the ICS Triplex system, designed to offer precise and reliable digital input processing for critical industrial applications. As part of the ICS Triplex family of high-performance, fault-tolerant I/O modules, the T8800 is engineered for use in demanding environments, including industrial automation, process control, and safety-critical systems.

With a wide range of input compatibility and high electromagnetic interference (EMI) immunity, the T8800 guarantees reliable operation in harsh environments. Whether it is controlling safety systems in the oil and gas industry, managing real-time data in manufacturing facilities, or ensuring the protection of critical infrastructure, this module plays a vital role in improving system efficiency, reliability, and safety.

Product Specifications

Applications

The ICS Triplex T8800 Digital Input Module is suitable for a wide array of industrial and safety-critical applications. It is designed to operate reliably in a variety of industries, including:

1. Power Generation: Used in turbine control and generator protection systems to ensure safe and reliable operation.
2. Oil and Gas: For monitoring field signals and ensuring process safety in hazardous environments.
3. Chemical and Petrochemical Plants: Handles safety-critical applications for monitoring hazardous processes and ensuring safe operation.
4. Water Treatment Facilities: Integrates with distributed control systems (DCS) to manage sensors, alarms, and actuators for water treatment and distribution.
5. Manufacturing: Ensures that automated production lines are monitored, with high levels of input signal reliability.
6. Industrial Safety: Commonly used in emergency shutdown (ESD) systems, fire and gas detection systems, and other safety instrumented systems (SIS).
7. Transportation: Applied in controlling signals for transportation systems like railways, airports, and automated logistics.
8. Mining: Vital in ensuring safety and equipment monitoring in the mining sector, especially in remote or hazardous conditions.
9. HVAC Systems: Used for managing input signals from various HVAC systems to optimize climate control in large buildings.
10. Environmental Monitoring: Useful in monitoring environmental parameters like air quality, temperature, and other factors critical to public health and safety.

Advantages

1. High Reliability: The T8800 offers exceptional reliability, ensuring that it performs in mission-critical environments where failure is not an option.
2. Wide Input Compatibility: The module supports various input types, including dry contacts, pulse signals, and voltage signals, making it versatile for a range of industrial processes.
3. Advanced Isolation: With 2500 V RMS isolation between input channels and the backplane, the T8800 minimizes the risk of signal contamination from electrical noise and surges.
4. Built-in Diagnostics: The module comes with built-in diagnostic features that allow for real-time monitoring of the system, improving uptime and reliability.
5. Extended Operating Temperature Range: With an operating temperature range of -20°C to +60°C, the T8800 is suitable for use in challenging environments where temperature fluctuations can be extreme.
6. Compact and Efficient Design: The module’s compact size (111 x 335 x 51 mm) allows it to be easily integrated into existing systems without occupying significant space.
7. Low Power Consumption: The module is energy-efficient, drawing just 300 mA of power under typical conditions, which reduces the overall power demands of the system.
8. Wide Industry Compatibility: Whether it’s used in power plants, chemical plants, or safety-critical applications, the T8800 is compatible with a wide range of industrial systems.
9. Protection Against EMI: Designed with high immunity to electromagnetic interference (EMI), the module maintains signal integrity even in high-noise environments.
10. Compliance with Global Standards: Certified for use in hazardous environments (ATEX), and compliant with UL and CE, ensuring that it meets global safety and performance standards.

Frequently Asked Questions (FAQ)

1. What is the voltage input range for the ICS Triplex T8800 module?

   • The module supports 24 V DC input with a range of 19.2 to 30 V DC.

2. How many inputs does the T8800 module support?

   • The T8800 module supports 32 digital inputs.

3. Is the T8800 suitable for use in hazardous environments?

   • Yes, the T8800 module is ATEX certified, making it suitable for use in hazardous areas.

4. What is the operating temperature range of the T8800?

   • The module operates within a temperature range of -20°C to +60°C.

5. What type of input signals can the T8800 handle?

   • The module can handle dry contact, pulse, and voltage input signals.

6. Does the T8800 offer any built-in diagnostics?

   • Yes, the T8800 includes built-in diagnostic features for real-time fault detection and system health monitoring.

7. What is the power consumption of the T8800?

   • The T8800 has a typical power consumption of 300 mA.

8. How is the T8800 protected against electrical noise?

   • The module is equipped with 2500 V RMS isolation between input channels and the backplane, ensuring protection from electrical surges and EMI.

9. What certifications does the T8800 have?

   • The T8800 is certified with UL, CE, and ATEX for safety and performance compliance.

10. Can the T8800 be mounted on a DIN rail?

    • Yes, the T8800 module can be mounted on a DIN rail or directly on a panel.
