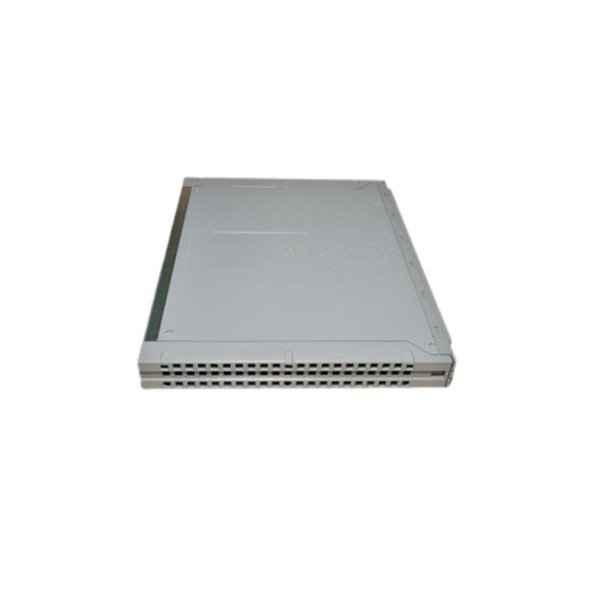

The ICS Triplex T8431 Analog Input Module is a high-performance component designed for industrial automation systems, particularly within the Trusted® Triple Modular Redundant (TMR) architecture. This module interfaces with up to 40 sourcing field input devices, acting as a current sink for each. It is engineered to ensure fault tolerance and reliability in critical industrial applications, making it an essential part of safety and control systems.

Product Specifications

Below is a detailed table outlining the key specifications of the T8431 module:

Applications

The T8431 Analog Input Module is utilized across various industries due to its reliability and precision. Key applications include:

• Process Control Systems: Monitoring and controlling variables such as temperature, pressure, and flow in industries like oil and gas, chemical processing, and pharmaceuticals.

• Power Generation: Managing and monitoring critical parameters in power plants to ensure efficient and safe operations.

• Manufacturing Automation: Integrating with automated systems to monitor machinery performance and product quality.

• Safety Instrumented Systems (SIS): Implementing in safety-critical applications where reliable data acquisition is paramount to prevent hazardous situations.

Advantages

The T8431 module offers several advantages that make it suitable for demanding industrial environments:

1. Triple Modular Redundancy (TMR): Ensures fault tolerance by using three parallel modules to compare and validate data, enhancing system reliability.

2. High Channel Density: Supports up to 40 input channels per module, allowing for efficient use of space and resources.

3. Comprehensive Diagnostics: Performs automatic diagnostic tests on each input channel to detect and report faults promptly.

4. Selectable Line Monitoring: Offers configurable line monitoring per channel to detect open and short circuit conditions in field wiring.

5. Robust Isolation: Features a 2500V impulse withstand opto/galvanic isolation barrier, protecting the system from electrical noise and surges.

6. Fast Update Rate: Provides a sample update time of 0.5 ms, ensuring timely data acquisition for real-time control applications.

7. High Resolution and Accuracy: Delivers a resolution of 3.9 µA and safety accuracy of ±1% full scale, suitable for precise measurements.

8. Hot-Swappable: Allows for module replacement without shutting down the system, minimizing downtime.

9. Wide Operating Range: Designed to operate in a broad temperature range and high humidity conditions, making it versatile for various environments.

10. Compact Design: Its dimensions and weight make it easy to integrate into existing systems without requiring significant space.
