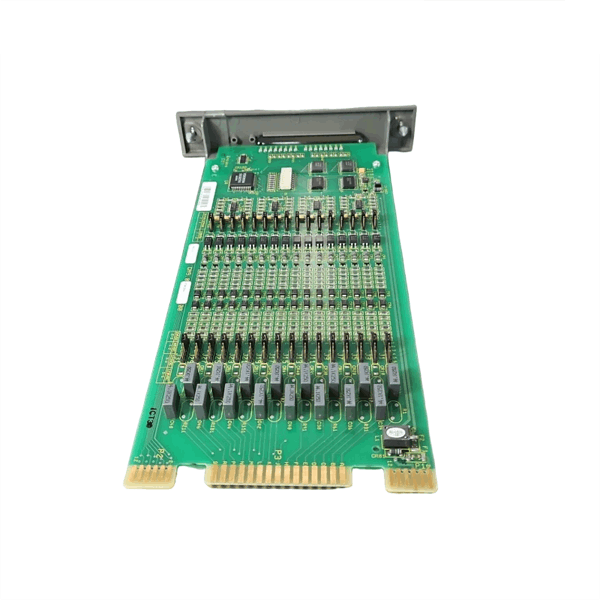

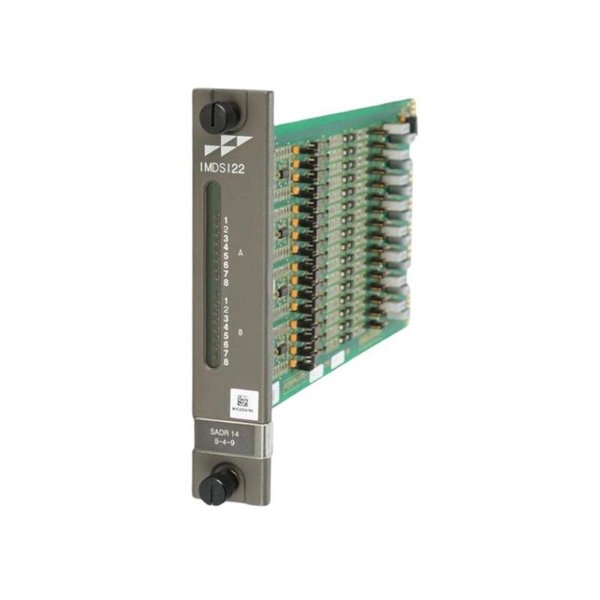

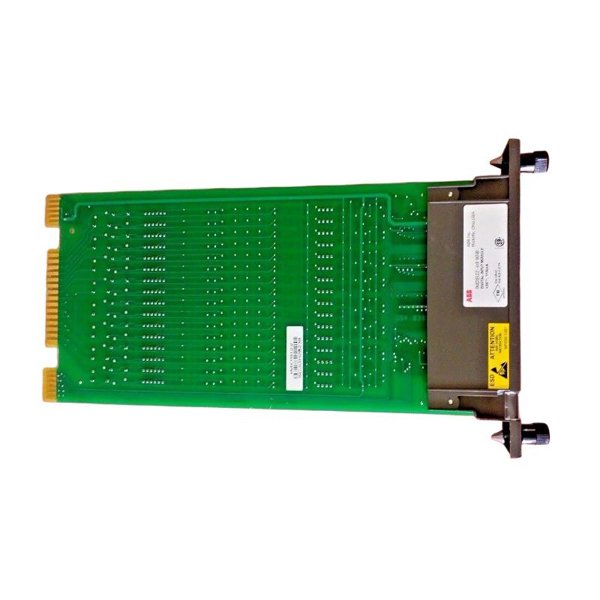

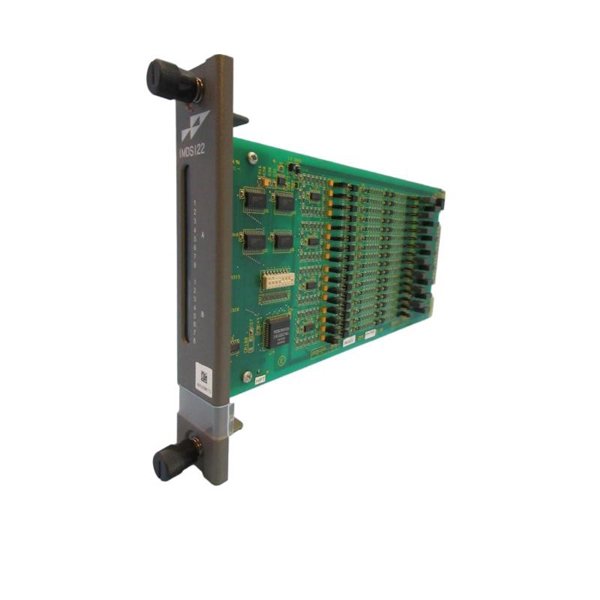

ABB Bailey IMDS122 Digital Input Modules

The ABB Bailey IMDS122 is a high-performance Industrial Measurement and Control Device that forms an essential part of ABB’s comprehensive control systems. Designed for seamless integration into industrial operations, this device is engineered to provide reliable and precise measurements for various industrial processes. It is part of ABB’s Bailey Infi90 family, which is widely respected for its robust performance in control applications.

Product Specifications

Below is a detailed table outlining the technical specifications of the ABB Bailey IMDS122:

Applications

The ABB Bailey IMDS122 is ideal for applications in various industries where precise measurement and control are required. Some of the primary fields of application include:

• Process Automation: Widely used in chemical plants, water treatment facilities, and power plants for real-time process monitoring and control.

• Energy Management: Used for controlling electrical systems and monitoring energy consumption.

• Manufacturing: Applied in industrial settings for quality control and performance optimization.

• Automation Systems: Integrated into SCADA (Supervisory Control and Data Acquisition) systems for monitoring and controlling automated equipment.

Advantages of ABB Bailey IMDS122

• High Precision: Offers high accuracy in data measurement, providing reliable real-time results.

• Flexible Inputs and Outputs: Capable of handling multiple types of input (voltage, current, RTD, thermocouple), making it highly versatile in various industrial applications.

• Robust Design: Built to withstand harsh industrial environments, ensuring durability and reliability.

• Advanced Communication Protocols: Supports Modbus, Profibus, and HART communication standards, allowing easy integration with other control systems.

• Compact Size: Its compact and efficient design makes it easy to install in systems with space constraints.

• Energy Efficient: Low power consumption ensures reduced operating costs and better energy management.

FAQ – ABB Bailey IMDS122

1. What types of input can the IMDS122 handle?

   • The IMDS122 supports multiple types of inputs including voltage, current, RTD, and thermocouple signals.

2. Is the IMDS122 compatible with other ABB systems?

   • Yes, the IMDS122 is fully compatible with ABB’s Infi90 system and integrates well with other ABB products.

3. What is the temperature range of the IMDS122?

   • The device can operate in environments with temperatures ranging from -40°C to 85°C.

4. What are the mounting options for the IMDS122?

   • The IMDS122 can be easily mounted on a DIN rail, which is a standard for industrial installations.

5. What communication protocols are supported by the IMDS122?

   • It supports Modbus, Profibus, and HART protocols for seamless communication and integration.

6. What are the power requirements for the IMDS122?

   • The IMDS122 requires a 24V DC power supply with a maximum consumption of 10W.

7. Can the IMDS122 be used in hazardous environments?

   • Yes, it is ATEX certified, making it suitable for use in explosive atmospheres.

8. What certifications does the IMDS122 hold?

   • It holds CE, UL, and ATEX certifications, ensuring compliance with international standards.

9. How does the IMDS122 improve system reliability?

   • Its high-precision measurements and robust design ensure the reliability and longevity of the system it is integrated into.

10. What is the weight of the IMDS122?

    • The device weighs 0.45 kg.
