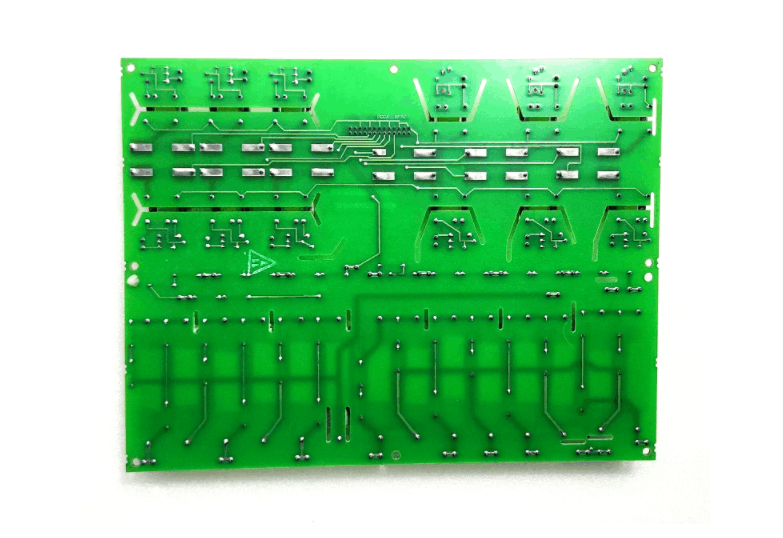

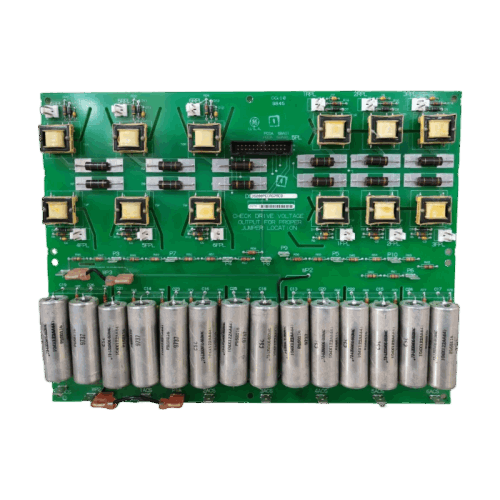

General Electric DS200PCCAG7A/DS200PCCAG7ACB Power Connect Card
Item Number: DS200PCCAG7A/DS200PCCAG7ACB
Brand: GE
Lead Time: In stock
Description: Power Connect Card
Payment: T/T
Product Description
GE DS200PCCAG7A/DS200PCCAG7ACB is a power connection card that connects the driver's control circuitry to the thyristor (SCR) power bridge. This card provides isolated gate drive pulse signals to the SCR power bridge via a pulse transformer, thereby controlling the SCR's on and off state.
In low- and medium-power controllers, the DS200PCCAG7A's snubber circuits are used to suppress voltage spikes. In high-power controllers, some or all of the snubber circuits may be located elsewhere in the system.
Function & Features
- Model Grouping: The DS200PCCAG7A/DS200PCCAG7ACB board has ten groupings. The specific grouping to use is determined by the system voltage, controller frame size, and power conversion type.
- Gate Drive Signal Output: The DS200PCCAG7A/DS200PCCAG7ACB sends forward and reverse gate pulse signals to the SCR power bridge via 12 plug-in connectors (1RPL-6RPL and 1FP-6FPL).
- Board Components: The DS200PCCAG7A/DS200PCCAG7ACB board primarily consists of configurable jumpers and wiring plug connectors.
Technical Specifications
|
Parameter |
Description |
|
Model |
DS200PCCAG7A/DS200PCCAG7ACB |
|
Type |
Power Connect Card |
|
Gate Pulse Output |
12 units |
|
Power / Communication Interface |
1 unit |
|
Configuration Jumper Interface |
Multiple stab terminals (P1A, P1B, P2A, P2B, P3 - P10) |
|
Communication Interface |
Communicates with the power supply board through 1 5PL connector |
|
Dimension |
229.56mm*198.25mm |
|
Weight |
0.35kg |
