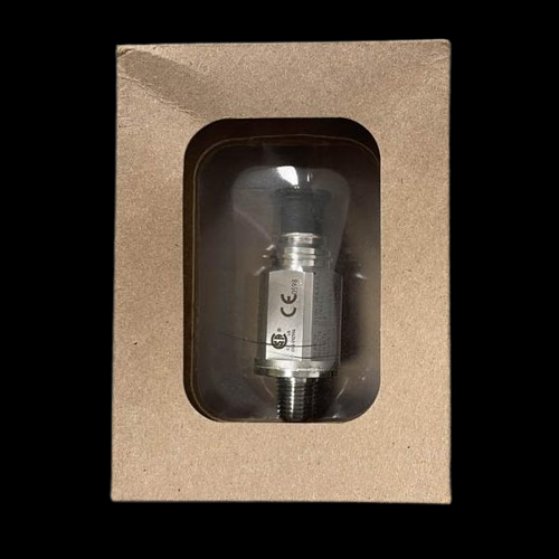

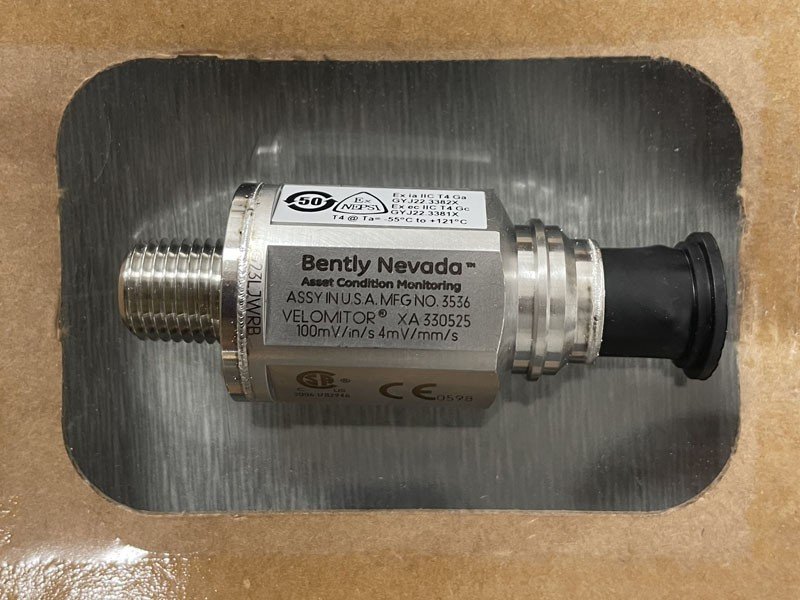

Bently Nevada 330525-00 XA Piezo-Velocity Sensor
Item Number: 330525-00
Brand:Bently Nevada
Lead Time: In stock
Description: XA Piezo-Velocity Sensor
Payment: T/T
Product Description
The Bently Nevada 330525-00 XA Piezo-Velocity Sensor is a velocity sensor in the Bently Nevada 3300 series. It belongs to the Velomitor XA (Extended Application) sensor family and is a ruggedized version of the 330500 Velomitor sensor. It features a 316L stainless steel housing and waterproof connector and cable assembly.
Function & Features
- Measurement Principle: The 330525-00 uses the piezoelectric effect to directly detect mechanical vibration velocity (units: mm/s or in/s).
- 330525-00 Application Scenario: Common faults such as rotor imbalance, shaft misalignment, bearing wear, and mechanical looseness.
- Installation Requirements: The 330525-00 sensor must be in close contact with the machine housing to accurately transmit rotor vibration. Improper installation may result in data distortion.
- Installation Location: The 330525-00 sensor must be installed in a housing location that reflects rotor vibration (avoid installation in a vibration-isolating area).
Specifications
|
Parameter |
Details |
|
Model |
330525-00 |
| Related products | 330525-CN/330525-05 |
|
Velocity Range |
1270 mm/s (50 in/s) peak. |
|
Transverse Sensitivity |
Less than 5% of sensitivity. |
|
Amplitude Linearity |
±2% to 152 mm/s (6 in/s) peak. |
|
Mounted Resonant Frequency |
Greater than 12 kHz. |
|
Broadband Noise Floor (4.5 Hz to 2 kHz) |
0.004 mm/s (160 min/s) rms, nominal. |
|
Power Requirements |
DC Voltage: -22 to -30 V₍₍DC₎₎; Bias Current: 2.5 to 6.0 mA |
|
Dynamic Output Impedance |
Less than 2400 Ω |
