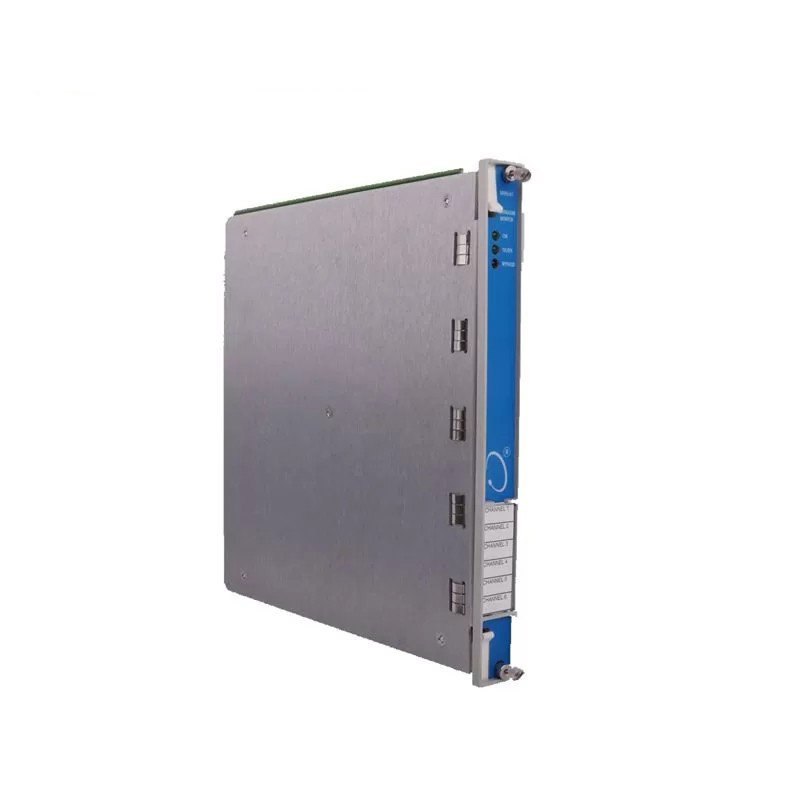

Bently Nevada 145988-02 3500/65 Temperature Monitor

The Bently Nevada 145988-02 is a 16-channel temperature monitor that accepts both resistance temperature detector (RTD) and isolated tip thermocouple (TC) temperature inputs. It conditions these inputs and compares them against user-programmable alarm setpoints. The monitor is programmed using the 3500 Rack Configuration Software.

Key Features

• 16 channels of temperature monitoring
• Accepts RTD and TC inputs
• User-programmable alarm setpoints
• Ethernet communication
• 19-inch rack mount

Technical Specifications

• Input range: RTD: -200°C to 800°C (-328°F to 1472°F); TC: -200°C to 1800°C (-328°F to 3272°F)
• Accuracy: ±0.1% of full scale
• Resolution: 0.01°C (0.02°F)
• Alarm setpoint accuracy: ±0.2% of full scale
• Communication: Ethernet 10BASE-T/100BASE-TX
• Power requirements: 24 VDC
• Operating temperature: -40°C to 70°C (-40°F to 158°F)
• Storage temperature: -55°C to 85°C (-67°F to 185°F)
• Humidity: 0% to 95% non-condensing
• Dimensions: 19 inches (483 mm) x 7 inches (178 mm) x 3.5 inches (89 mm)
• Weight: 17 pounds (7.7 kg)

Applications

The Bently Nevada 145988-02 is used in a variety of applications, including:

• Industrial machinery
• Power generation
• Oil and gas
• Chemical processing
• HVAC

Benefits

• Provides reliable and accurate temperature monitoring for a wide range of applications.
• User-programmable alarm setpoints help to prevent equipment failures.
• Ethernet communication allows for easy integration into plant control systems.
