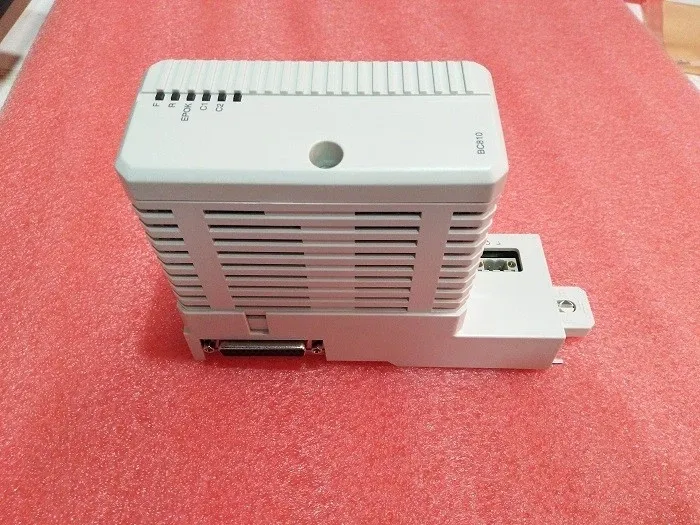

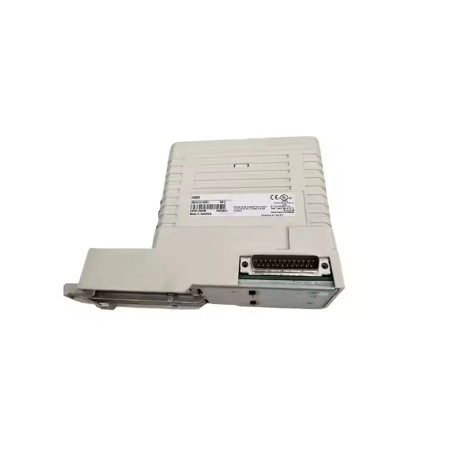

ABB BC820K01 3BSE071501R1 CEX-Bus Interconnection Unit
Item Number:BC820K01 3BSE071501R1
Brand: ABB
Description：CEX-Bus Interconnection Unit Lead Time: In stock
Payment: T/T
Product Description
ABB BC820K01 3BSE071501R1 CEX bus interconnection unit is the communication module of ABB 800xA control system. It can establish communication connection, connect various devices, expand communication ports, increase the number of interfaces, and support redundant communication interfaces. It can divide the CEX bus into two independent network segments, and the maximum length of each segment is 200 meters, providing sufficient distance.
Function & Features
- BC820K01 divides CEX-Bus into two independent segments (maximum distance 200 meters), extending RCU-Link and CEX-Bus cables to 200 meters.
- BC820K01 is compatible with PM858, PM862, PM866 (PR.F and above) and PM866A controllers.
- BC820K01 is a dual redundant communication interface, a single device supports up to 6 CEX-Bus interfaces.
- Fiber connection: Use LC duplex OM3 fiber to establish RCU data link
- Copper cable connection: Use RJ45 crossover cable to connect control link
Specifications
1.Basic data
|
Category |
Parameter |
Specification |
|
Electrical |
Power Supply Voltage |
24 V nominal (19.2-30 V DC range) |
|
Power Consumption (+24V) |
120 mA typical (200 mA max) |
|
|
Power Dissipation |
2.9 W typical |
|
|
Mechanical |
Width |
59 mm (2.9 in) |
|
Height |
185 mm (7.3 in) |
|
|
Depth |
127.5 mm (5.0 in) |
|
|
Weight (including base) |
1.4 kg (3.1 lbs) |
2.Necessary cables
|
Cable Type |
Technical Specifications |
Maximum Length |
|
RCU Control Link |
Shielded twisted-pair RJ45 crossover cable (EIA/TIA-568 standard: T568A ↔ T568B wiring) |
200m |
|
RCU Data Link |
LC Duplex OM3 multimode fiber (50/125μm, ANSI TIA/EIA-60-10 compliant) |
200m |
FAQ
Q: What is the brand?
A: ABB
Q: What is the type?
A:CEX-Bus Interconnection Unit
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
