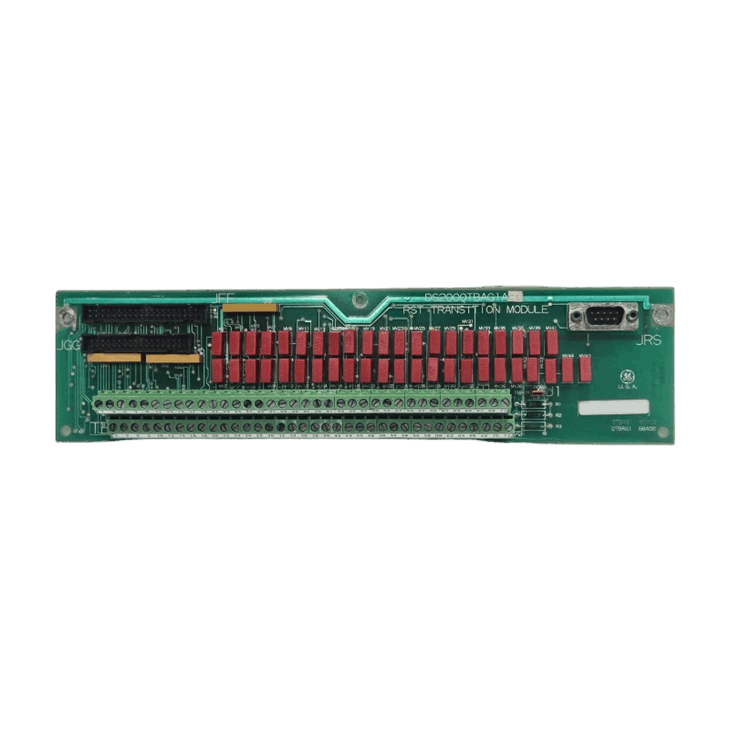

General Electric DS200QTBAG1ACB RST Termination Board
Item Number:DS200QTBAG1ACB
Brand:GE
Lead Time: In stock
Description:RST Termination Board
Payment: T/T
Product Description
The GE DS200QTBAG1ACB is an RST termination board, a component in R1, R2, S, and T control systems. It serves as an interface board, integrating and distributing various signals related to gas turbine operation. It processes input signals such as pulse frequency and megawatt-class sensors, and also transmits output signals such as LVDT/R excitation and servo valves.
Note: The DS200QTBAG1ACB does not perform voting for input/output signals; this is handled by the subsequent processor board.
Function & Features
- Signal Collection and Transmission: The GE DS200QTBAC1ACB terminal board collects input signals from pulse frequency and megawatt sensors and transmits them to the TCQC board for processing.
- Connection Monitoring Support: The GE DS200QTBAG1ACB terminal board provides connectivity to the Terminal Interface Monitor (TIMN) for monitoring the internal network.
- Power Loss Protection: In the event of a power outage, the bypass relay on the GE DS200QTBAG1ACB terminal board ensures that CoreBus communications remain active.
- Signal Management: This terminal board does not perform voting functions for input and output (I/O) signals. Instead, it focuses on signal management and maintaining communication capabilities within the R1, R2, and R3 system cores.
Specifications
|
Parameter |
Details |
|
Model |
DS200QTBAG1ACB |
|
Related models |
DS200QTBAG1A DS200QTBAG1ABB |
| Input Signals |
-Power feedback: Power signal from a megawatt transducer. -Speed feedback: Pulse frequency input signal.- Other analog quantities: Milliamp input signal. |
| Output Signals | -Servo drive: Signal for controlling the servo valve.- Sensor excitation: Provides excitation power for sensors such as LVDT/R. |
| Board Type | RST Termination Board (interface and communication termination board) |
FAQ
Q: What is the payment method?
A: T/T
Q: Is technical support available?
A:Yes, we have a professional technical team to address technical issues.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
