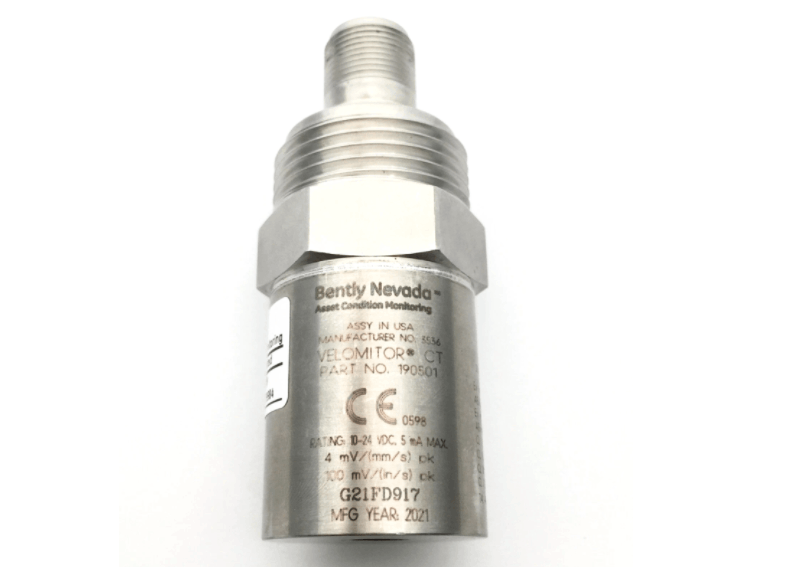

Bently Nevada 190501-21-00-04 Velomitor CT Transducer
Item Number: 190501-21-00-04
Brand: Bently Nevada
Lead Time: In stock
Description: Velomitor CT Transducer
Payment: T/T
Product Description
Bently Nevada 190501-21-00-04 Velomitor CT vibration velocity sensor is a low-frequency vibration monitoring device designed for low-speed rotating equipment. It is a low-frequency version of the standard Velomitor piezoelectric velocity sensor.
It is mainly used to measure the shell vibration velocity of cooling tower fans and air-cooled heat exchanger fan units, with a typical operating speed range of 100 to 300 rpm (minimum 90 rpm). The sensor can accurately capture the vibration amplitude and frequency signals generated by fans, motors and reducers when running at low frequencies, and effectively identify common mechanical faults such as rotor imbalance and misalignment.
Function & Features
- Low-frequency optimization: 190501-21-00-04 is customized for ultra-low-speed (≥90 rpm) equipment to solve the problem of insufficient sensitivity of traditional sensors in the low-frequency band.
- Multifunctional vibration detection: 190501-21-00-04 can simultaneously measure the vibration velocity amplitude and vibration frequency, covering the characteristic frequencies generated by the fan rotor, motor and reducer.
- Rotor fault sensitive monitoring: 190501-21-00-04 indirectly reflects the rotor state (such as imbalance and misalignment) through the vibration of the housing. The sensor installation position must be able to effectively transmit the rotor vibration signal to the housing.
Specification
|
Parameter |
Specification |
|
Model |
190501-21-00-04 |
|
Sensitivity |
3.94 mV/mm/s (100 mV/in/s) ±5%. |
|
Frequency Response |
3.0 Hz to 900 Hz (180 to 54,000 cpm) ±1.0 dB; 1.5 Hz to 1.0 kHz (90 to 60,000 cpm) ±3.0 dB |
|
Transverse Response |
Less than 5% of the axial sensitivity. |
|
Amplitude Linearity |
±2% to 63.5 mm/s pk (2.5 in/s pk) |
|
Mounted Resonant Frequency |
9 kHz, minimum (stud mounted, except quick disconnect) |
|
Output Bias Voltage |
10.1 Vdc ± 1.0 Vdc, Pin A referenced to Pin B |
|
Weight |
<297 g (10.5 oz.), typical. |
|
Mounting Surface |
33 mm diameter (1.3 in diameter). |
|
Height |
82 mm (3.2 in). |
Typical application scenarios
Cooling tower fan
Air-cooled heat exchanger (A-frame heat exchanger)
Note: It must be installed on the rigid part of the bearing seat or equipment housing to avoid signal attenuation or false vibration data due to improper installation.
FAQ
Q: What is the brand?
A: Bently Nevada
Q: What is the type?
A: Velomitor CT Transducer
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
