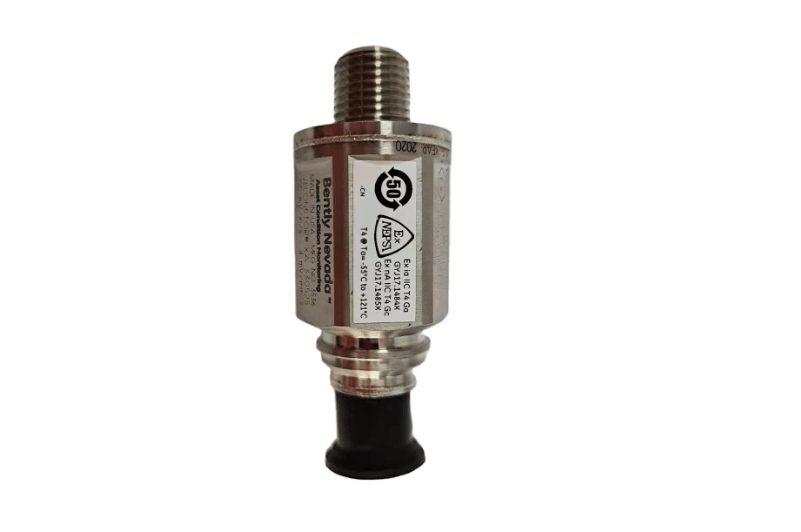

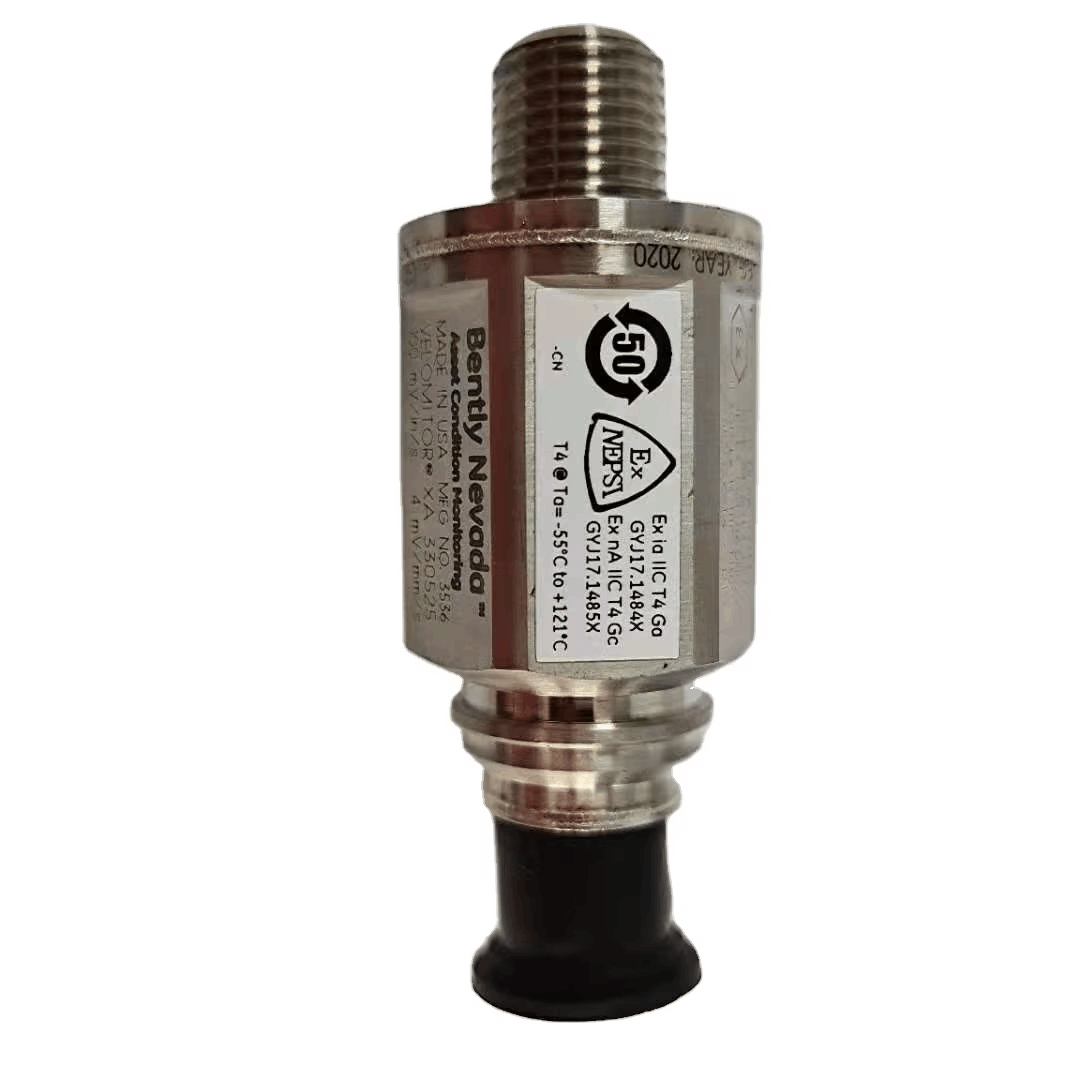

Bently Nevada 330400-02-05 Accelerometer Acceleration Transducers

Bently Nevada 330400-02-05 accelerometer is designed for critical machinery applications to measure housing acceleration, such as gear mesh monitoring. Designed to comply with API Standard 670, it can accurately monitor acceleration changes during machinery operation, aiding equipment maintenance and fault diagnosis. With CE, CSA, ATEX and IECEx certifications (for models ending in -05), it can be used in environments with different safety regulations.

Ordering Information：

A: Mounting Thread Option 02(M8 X 1 integral stud)

B: Agency Approval Option 05(Multiple approvals (CSA, ATEX, IECEx,))

Features

• Precise measurement: With an amplitude range of 50 g peak and a sensitivity of 100 mV/g, it can accurately capture the acceleration signal of the casing and provide data for the evaluation of the mechanical operation status.

• Frequency response: The frequency response range is 10Hz to 15kHz, which can effectively cover common mechanical vibration frequencies and fully collect vibration information.

• Compliance and adaptation: It meets the requirements of the American Petroleum Institute Standard 670 for acceleration sensors and is suitable for various key machinery in the petroleum, chemical and other industries that follow this standard.

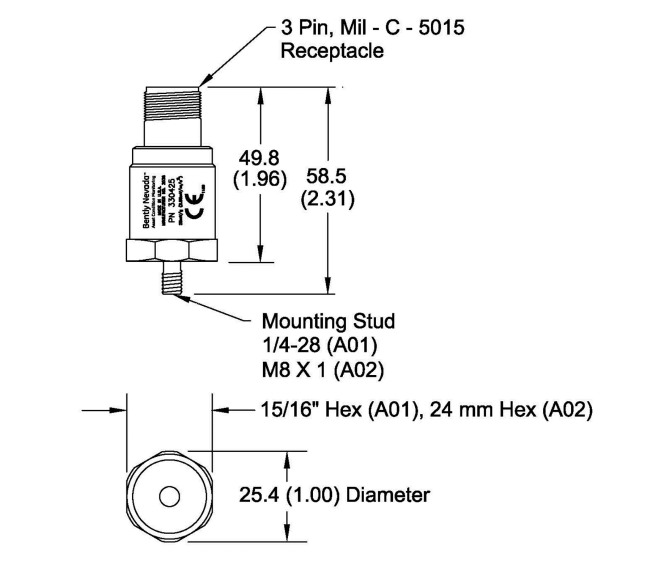

• Easy installation: Equipped with M8 x 1 integral studs, it is easy to install in locations such as bearing seats or casings.

Specification
