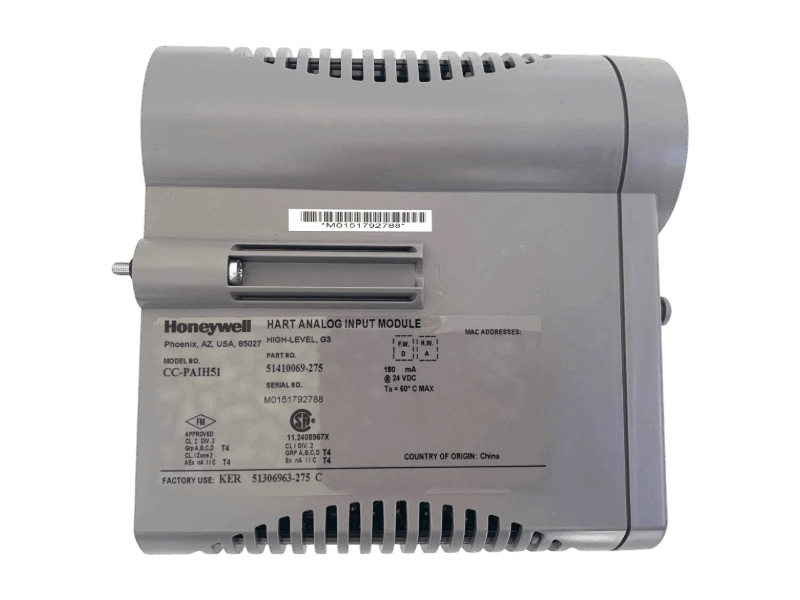

Honeywell CC-PAIH51 Analog Input With HART
Item Number: CC-PAIH51
Brand:Honeywell
Lead Time: In stock
Description: Analog Input with HART
Payment: T/T
Product Description
Honeywell CC-PAIH51 is an analog input module for the Experion Series-C system. It features Highway Addressable Remote Transducer (HART). This module receives current signals from transmitters and converts them into digital values for use by the DCS controller.
The CC-PAIH51 collects analog signals and acts as a HART master, enabling bidirectional digital communication with smart instruments.
Function & Features
- HART Communication: The CC-PAIH51 can simultaneously collect process variables and read multivariable information from devices using the HART protocol (for example, a multivariable flowmeter can simultaneously output flow, temperature, and pressure).
- Device Management: The CC-PAIH51 supports remote configuration, range adjustment, and calibration of HART smart devices, eliminating the need to physically visit hazardous or difficult-to-reach locations.
- Non-incendive Field Power: The CC-PAIH51 module directly provides intrinsically safe power to field transmitters.
- Signal Type Restrictions: The CC-PAIH51 module does not support differential or voltage inputs and only accepts high-level current input signals. When selecting a model, ensure that the signal type of the field device matches yours.
Specifications
| Parameter | Details |
|---|---|
| Product Model | CC-PAIH51 |
| Input Type | Current (2-wire or self-powered transmitters) |
| Input Channels ¹ | 16 Channels (ALL Single Ended) |
| Common Mode Rejection Ratio, dc to 60 Hz (500 Ω source imbalance) | 70 dB |
| Common Mode Voltage, dc to 60 Hz | -6 to +5 V peak |
| A/D Converter Resolution | 16 bits |
| Normal Mode Filter Response | Single-pole RC, -3 dB @ 6.5 Hz |
| Crosstalk, dc to 60 Hz (channel-to-channel) | -60 dB |
| Input Scan Rate | 50 ms |
FAQ
Q: What is the payment method?
A: T/T
Q: Is technical support available?
A:Yes, we have a professional technical team to address technical issues.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
