ABB INNIS01 Network Interface Slave Module
Item Number:INNIS01
Brand: ABB
Lead Time: In stock
Description:Network Interface Slave Module
Payment: T/T
Product Description

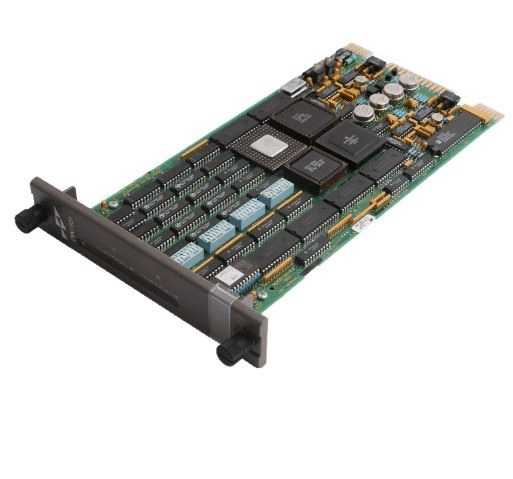

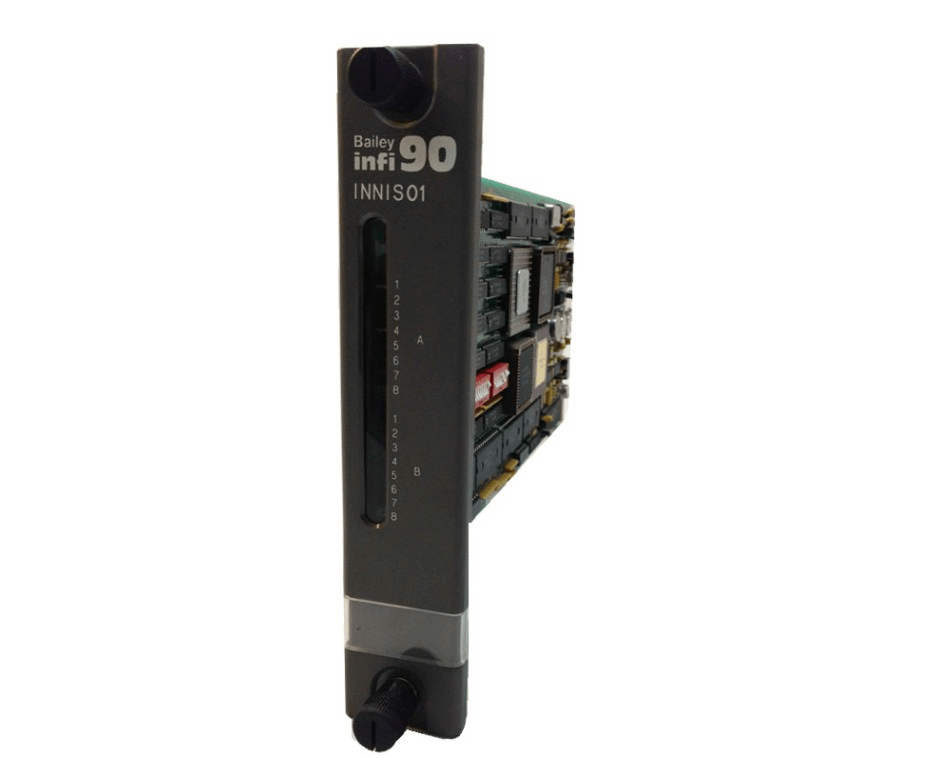

ABB INNIS01 is a network interface slave module (NIS) that forms a process control unit interface with the INNPM11 network processing module (NPM). The INNIS01 module is a separate printed circuit board that occupies a slot in the module mounting unit, has two locking screws on the panel for fixing, and 16 indicator lights to display error codes and event/error counts.
Function & Features
- ABB INNIS01 is used with INNPM11 (NPM) to form a complete process control unit interface, suitable for INFI 90® OPEN system.
- ABB INNIS01 supports INFI-NET® communication network, as a slave module (Slave), working with the master station.
- ABB INNIS01 is the front end of all Cnet communication interfaces, allowing any node in the system to communicate with other nodes.
- ABB INNIS01 is connected to the Cnet communication network through the cable of the NTCL01 terminal unit interface, and then connected to the coaxial cable or twinaxial cable for node-to-node communication.
Specifications
|
Property |
Characteristic/Value |
|
INNIS01-Memory |
208 kbytes RAM 64 kbytes ROM |
|
INNIS01-Power requirements |
+5 VDC at 900 mA; 4.50 W nominal +15 VDC at 5 mA; 0.08 W nominal -15 VDC at 200 mA; 3.00 W nominal |
|
INNIS01-System capability |
62,500 nodes in the system; 250 nodes on a loop. Any combination of PCU, MCS, OIS or ICI interfaces |
|
INNIS01-Communication rates |
10 Mbaud or 2 Mbaud |
|
INNIS01-Mounting |
Occupies one slot in standard INFI 90 OPEN module mounting uni |
FAQ
Q: What is the brand?
A: ABB
Q: What is the type?
A:Network Interface Slave Module
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
Q: Why choose us?
A: We are the supplier for industrial automation spare parts,We speciaized in PLC DCS and TSl system modules and spare parts for 10 years, With our professional expertise and extensive experience, we are well-equipped to meet your requirements.
