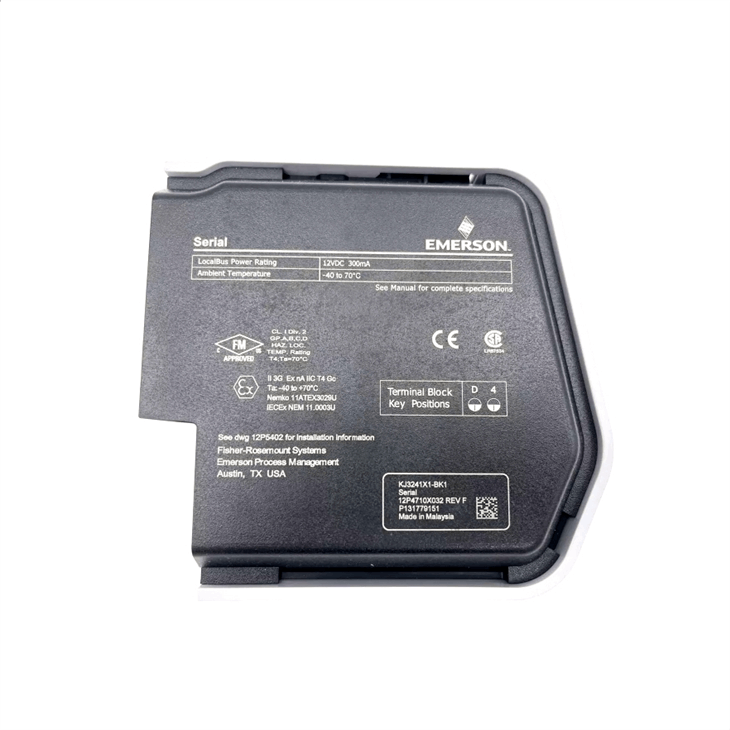

Emerson KJ3241X1-BK1 S-series Serial Interface Card
Item Number:KJ3241X1-BK1
Brand:Emerson
Lead Time: In stock
Description:S-series Serial Interface Card
Payment: T/T
Product Description
Emerson KJ3241X1-BK1 S-series Serial Interface Card is an interface card for connecting DeltaV systems with other devices that support serial protocols such as Modbus or Allen-Bradley's Data Highway Plus. The card comes preloaded with a Modbus software driver, and other drivers are available to allow a variety of devices to be integrated directly into the I/O subsystem of the DeltaV controller. Data can be used by the control module or transferred as SCADA tags to a workstation for display and/or historical storage.
Function & Features
- Information Interface: The Emerson KJ3241X1-BK1 card provides a comprehensive view of plant-wide information via the DeltaV system's serial interface. All serial information from third-party systems, analyzers, PLCs, and more can be displayed on the operator interface.
- 1:1 Redundancy: The Emerson KJ3241X1-BK1 serial interface card can be added as a simplex card or as a redundant pair. For slave devices that support redundant serial ports, the interface automatically detects the presence of redundant terminal blocks, and the system automatically identifies them as a redundant pair.
- Ports and Speed: The Emerson KJ3241X1-BK1 serial interface card includes two serial communication ports supporting RS232 and RS422/485 half-duplex or RS422/485 full-duplex signals. These ports are individually configurable to support data rates ranging from 300 baud to 115 kbaud.
Specifications
|
Parameter |
Details |
|
Model |
KJ3241X1-BK1 |
|
Number of serial ports |
2 |
|
Number of data sets per Serial Interface card |
32 (16 per port) |
|
Port types |
RS232, RS422/485 half duplex, RS 422/485 full duplex |
|
Each port is isolated from the system and from the other. These ports must be externally grounded. |
|
|
Baud rate |
300, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
|
Parity |
Even, Odd, None |
|
Data bits |
7 or 8 |
|
Stop bits |
1 or 2 |
|
Retry count |
0–255 |
|
Shock |
10 g ½-sine wave for 11 ms |
|
3 mm peak-to-peak from 5 to 13 Hz; 0.5 g from 13 to 150 Hz |
FAQ
Q: What is the brand?
A: Emerson
Q: What is the type?
A:KJ3241X1-BK1
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
