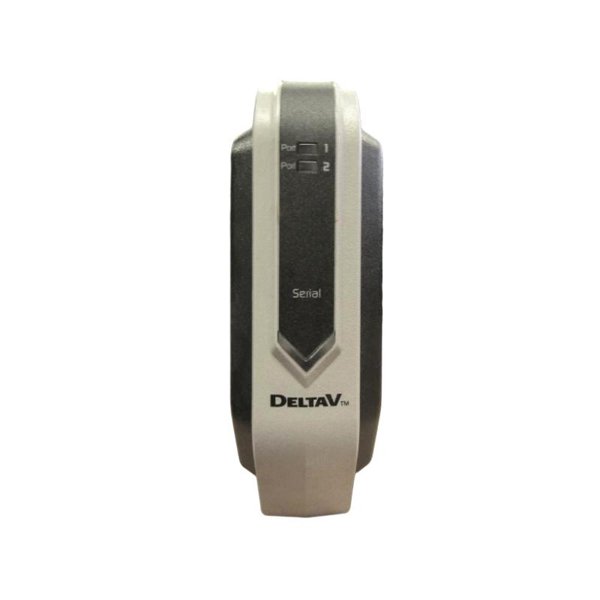

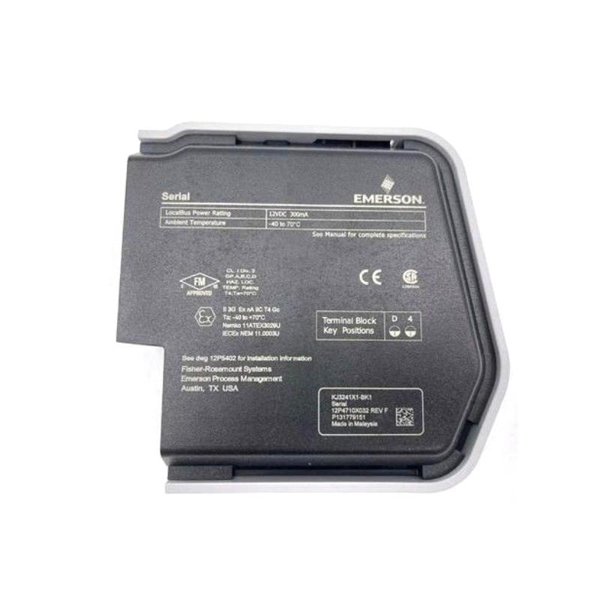

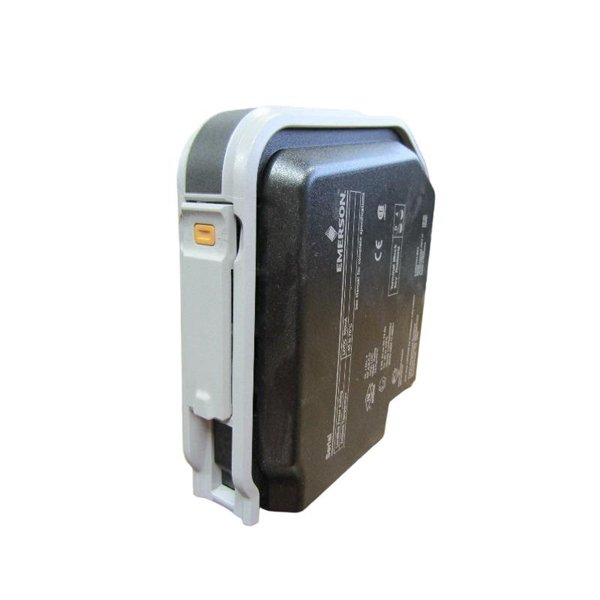

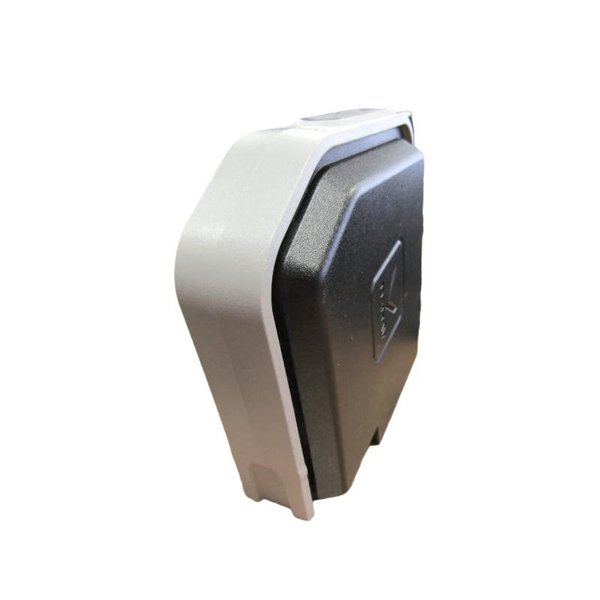

The Emerson SE4006P2 KJ3241X1-BK1 Serial Interface Card is a high-reliability communication module designed for industrial distributed control systems (DCS). This module facilitates seamless serial data communication between Emerson DCS controllers and multiple field devices. It supports protocols including Modbus RTU, RS-232, and RS-485, enabling the integration of analog and digital devices into centralized control architectures.

Engineered for industrial environments, the SE4006P2 ensures robust and precise data exchange even under conditions of electrical noise or high device density. The module includes extensive diagnostic functions to monitor communication quality, detect errors, and support troubleshooting, improving system reliability and reducing downtime.

Product Parameters

Product Applications

The SE4006P2 KJ3241X1-BK1 is deployed in environments that require reliable serial communication and integration of multiple field devices:

• Power Generation – Communication with turbine monitoring devices, generator controllers, and auxiliary sensors.

• Oil & Gas – Serial interfacing for remote pressure, flow, and temperature sensors in pipelines and refinery equipment.

• Chemical & Petrochemical – Integration of pumps, reactor sensors, and automated equipment into control systems.

• Water & Wastewater Treatment – Connection to SCADA systems and remote telemetry devices.

• Manufacturing & Process Automation – Linking PLCs and industrial machinery to the central DCS.

• Food & Beverage Processing – Serial communication with temperature, pressure, and flow sensors in production lines.

Product Advantages

• Robust Serial Communication – Reliable data transfer with error checking and retries.

• Multi-Protocol Support – Modbus RTU/ASCII and Emerson proprietary protocols for flexibility.

• High Device Capacity – Supports multiple devices per network without performance degradation.

• Electrical Isolation – Protects control systems and peripheral devices from electrical faults.

• Comprehensive Diagnostics – Detects communication errors, monitors device responses, supports troubleshooting.

• Seamless DCS Integration – Fully compatible with Emerson DeltaV and Ovation systems.

• Configurable Communication Settings – Adjustable baud rate, data format, and port type to match field requirements.

FAQ

1. Which protocols are supported by the SE4006P2 KJ3241X1-BK1?

   The module supports Modbus RTU, Modbus ASCII, and Emerson proprietary serial protocols.

2. How many devices can be connected simultaneously?

   Up to 32 devices can be connected on an RS-485 network.

3. Is the module compatible with RS-232 communication?

   Yes, ports are configurable for RS-232 or RS-485 operation.

4. What range of data rates is supported?

   Data rates from 1200 bps to 115200 bps are supported.

5. Does the module provide diagnostics?

   Yes, it continuously monitors communication errors, device responses, and performs self-tests.

6. How is electrical isolation achieved?

   Isolation is provided between each port and between ports and the system to prevent ground faults.

7. Can the module operate in electrically noisy industrial environments?

   Yes, it is designed with isolation and filtering to maintain reliable communication in high-noise conditions.

8. Is the data format configurable?

   Yes, it supports configurable 8-bit data, stop bits, and parity settings.

9. What is the module’s power requirement?

   It consumes approximately 4 W from the Emerson system backplane.

10. Which DCS systems are compatible with this module?

    Compatible with Emerson DeltaV and Ovation distributed control systems.
