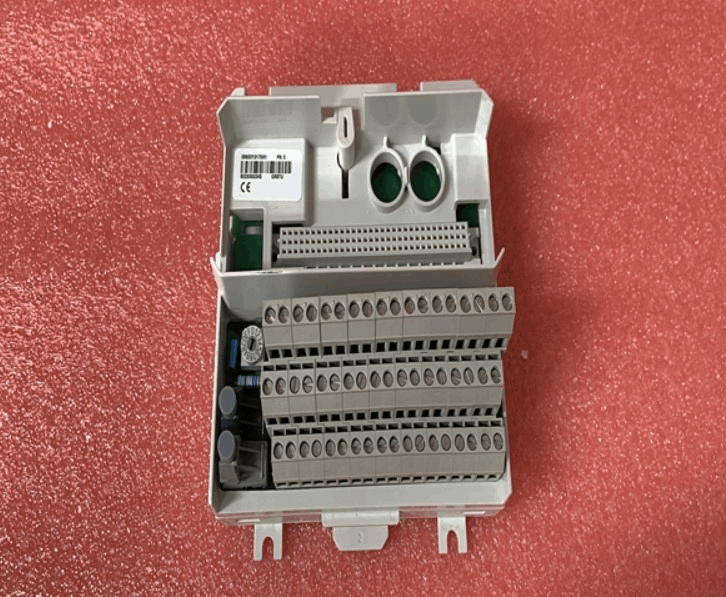

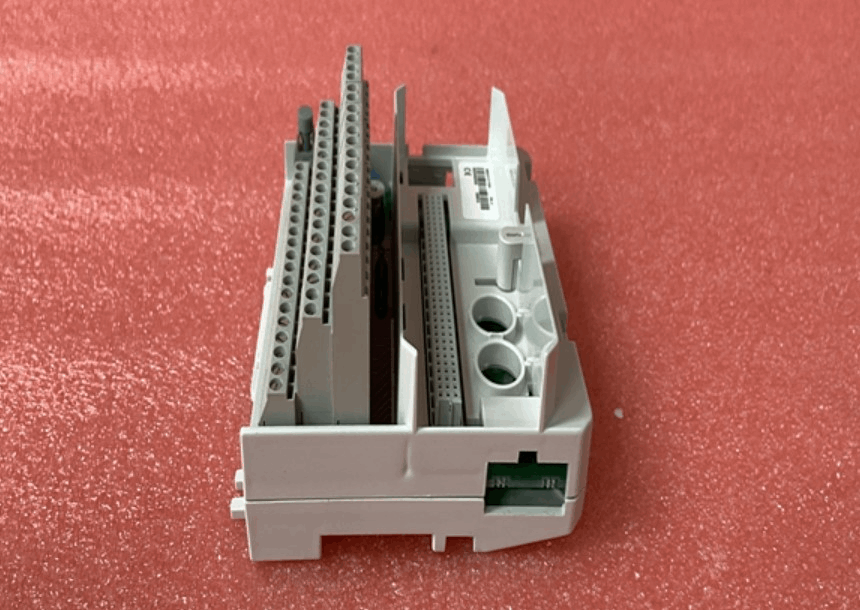

ABB GRBTU-01 3BSE013175R1 Module Termination Unit

ABB GRBTU-01 3BSE013175R1 modular terminal unit is designed for use with ABB's LD GRB-01 Gray encoder board. Its product ID is 3BSE013175R1 and its type name is GRB-TU.

The terminal unit enables the correct connection and terminal processing of encoder signals and plays a key role in the configuration and function realization of the encoder system. It has signal access functions, can accurately connect to the encoder board output port, and can also pass configuration information.

Fuctions & Features

• ★ Connection and terminal functions: ABB GRBTU-01 is a terminal module specifically for LD GRB-01 Gray encoder board, which can realize the correct connection and terminal processing of encoder signals in the system.

• ★ Signal access: LD GRB-01 Gray encoder board will generate various encoding signals when working, which represent physical quantity information such as position and speed. ABB GRBTU-01 modular terminal unit has specific interface circuits and pin configurations, which can be accurately connected to the output port of the encoder board.

• ★ Configuration information transfer: During the configuration of the encoder system, the ABB GRBTU-01 modular terminal unit is able to receive configuration information sent from the system controller or other configuration devices, and accurately pass this information to the LD GRB-01 Gray encoder board.
