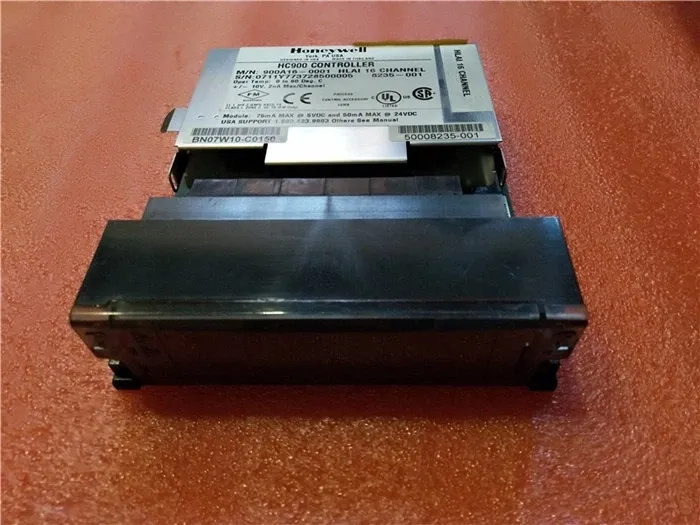

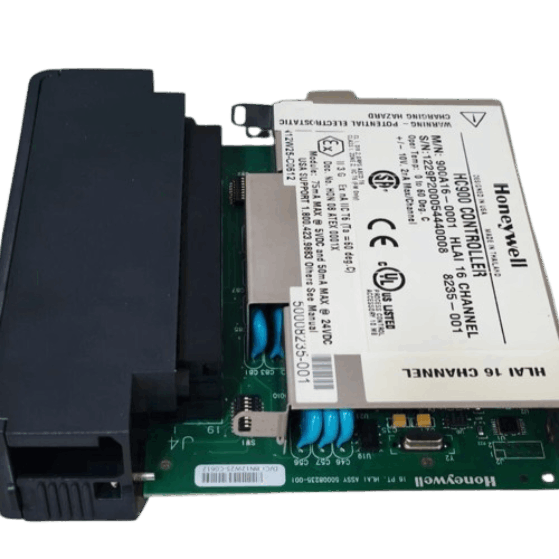

Honeywell 900A16-0001 High Level Analog Input Module

Honeywell 900A16-0001 High Level Analog Input Module is a 16-channel analog input module that supports point-by-point configuration of voltage or current signals and provides point-to-point isolation and backplane isolation. The module performs analog-to-digital conversion synchronously with the CPU control execution, eliminating data exchange delays. All analog input modules are processed in parallel, and there is no increase in scan time when adding modules.

Function & Features

• Shunt Resistors: The 900A16-0001 module has a 250 ohm shunt resistor on each input, which can be flexibly activated via a DIP switch, providing convenience for applications such as current measurement.

• Status Light Content: The green flashing status LED on the 900A16-0001 module indicates that the module is being scanned, the amber flashing LED indicates that the input channel is forced, and the red LED indicates that module diagnostic information exists.

• Synchronous A/D conversion: The 900A16-0001 is synchronized with the CPU control cycle, eliminating data delays.

Specifications
