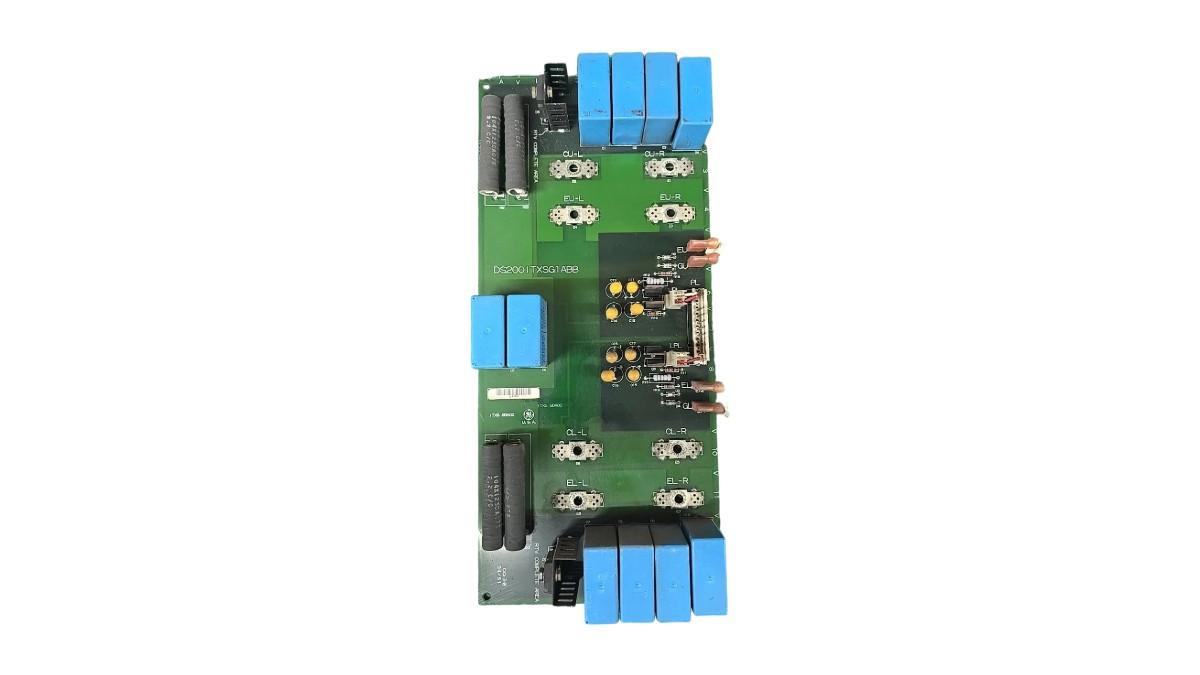

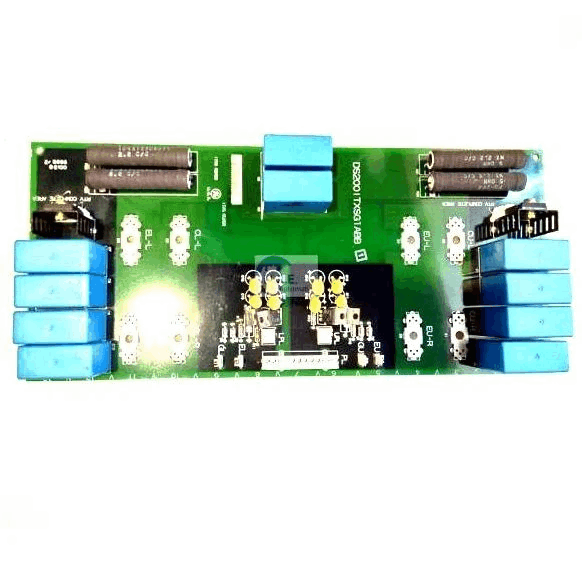

General Electric DS200ITXSG1ABB Inverter Snubber Board
Item Number:DS200ITXSG1ABB
Brand:GE
Lead Time: In stock
Description:Inverter Snubber Board
Payment: T/T
Product Description
GE DS200ITXSG1ABB inverter absorption board is an interface board primarily designed to reduce inductance between the power module and subsequent suppression circuitry. One board is provided for each phase leg (A, B, C) in a three-phase application and must be directly mounted onto the corresponding power module. In a three-phase system, three such DS200ITXSG1ABB boards are required simultaneously.
Note: The interface logic of the DS200ITXSG1ABB board strictly corresponds to the three-phase system and must not be mixed or swapped.
Function & Features
- Reduce Inductance: The DS200ITXSG1ABB minimizes parasitic inductance by directly mounting on the power module, shortening the electrical path between the power module and the suppression circuit. This shortening helps reduce voltage spikes and energy loss during the switching process.
- Three-Phase Application: The DS200ITXSG1ABB board is used in three-phase systems and connects to the corresponding phase legs through specific onboard connectors to protection for each phase.
- Connector Details:APL connector corresponds to the A phase leg and connects to the A phase power module;BPL connector corresponds to the B phase leg and connects to the B phase power module;CPL connector is used for the C phase.
Specifications
| Parameter | Details |
|---|---|
| Model Number | GE DS200ITXSG1ABB |
| Type | Inverter Snubber Board |
| Version Info | Function Version 1A/2B, Design Version B |
| Connectors | APL/BPL/CPL Connectors |
| Dimension | 28.27*8.3(cm) |
| Weight | 0.48kg |
FAQ
Q: What is the payment method?
A: T/T
Q: Is technical support available?
A:Yes, we have a professional technical team to address technical issues.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
