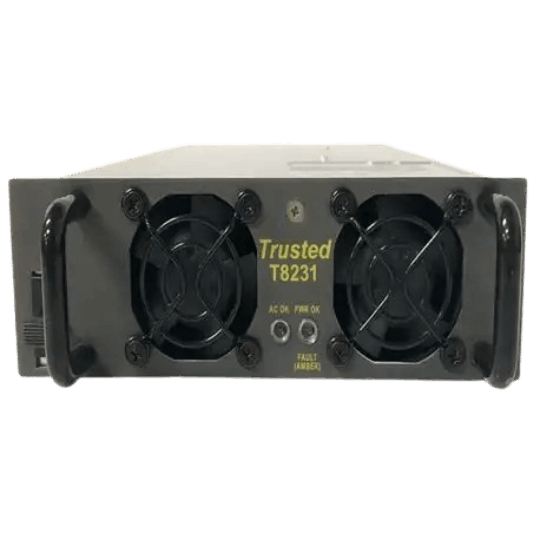

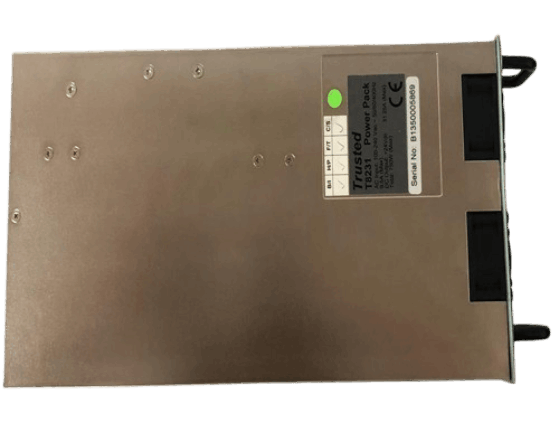

ICS Triplex T8231 Trusted Power System
Item Number:T8231
Brand:ICS Triplex
Price:$1
Lead Time: In stock
Description:Trusted Power System
Payment: T/T
Product Description
ICS Triplex T8231 Trusted Power System is a power system that converts 110V AC or 240V AC main power to 24V DC (for Trusted series products) or 28V DC (adjustable field power supply). T8231 optional power supply controller monitors up to 12 power modules (4 racks) and remotely configures voltage/current. It can be applied to nuclear power plant ESD and oil and gas pipeline SCADA.
Function & Features
- The T8231 uses a 1U power shelf that can accommodate up to three 750W power packs. The maximum power output of a single power shelf is 2250W, and it supports load sharing.
- The T8231 has a current sharing function, and multiple power packs can share the load evenly.
- The T8231 supports current limiting and power factor correction.
- The T8231 can be equipped with an optional rack-mounted power controller, which is connected through the power port to configure the output voltage and current and monitor up to 12 power packs in 4 power racks.
Specifications
|
Parameter |
Specification |
| Model | T8231 |
|
Input |
90 Vac to 264 Vac |
|
Output |
24 Vdc to 28 Vdc |
|
Frequency Range |
47 Hz to 63 Hz |
|
Inrush Current |
50 A Max per Pack |
|
Power Factor |
0.95 min, 0.99 typical |
|
Efficiency |
78 % – 84 % |
|
Output Power |
750 W per Power Pack |
|
Power Hold - up Time |
20 ms |
FAQ
Q: What is the brand?
A:ICS Triplex(Rockwell)
Q: What is the type?
A:Trusted Power System
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
