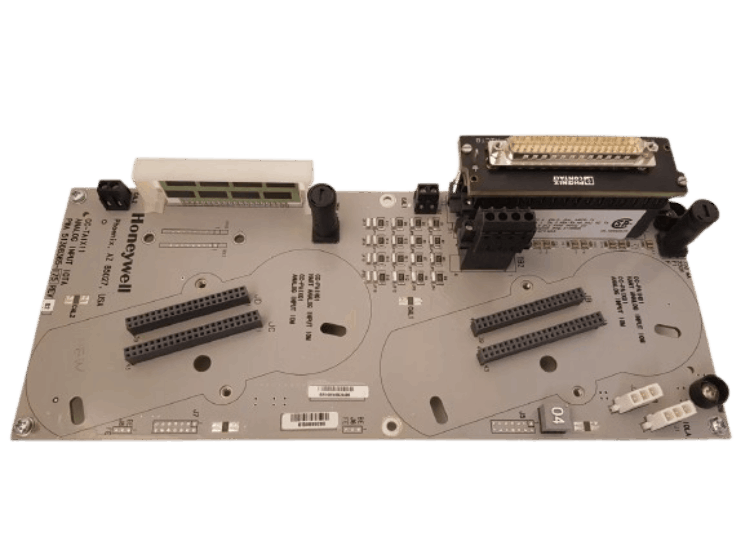

Honeywell CC-TAIX11 High Level Analog Input /HART Input Module
Item Number: CC-TAIX11
Brand:Honeywell
Lead Time: In stock
Description: High Level Analog Input /HART Input Module
Payment: T/T
Product Description
Honeywell CC-TAIX11 is a 16-point advanced analog input / HART input module in the Experion series C I/O. It supports high-level analog input and HART input, provides a signal input interface for related devices, and can receive signals from traditional devices and HART devices and transmit them to the control system for processing and monitoring.
Function & Features
Functional Positioning
CC-TAIX11 supports the mixed access of high-level analog input and HART protocol devices, and can read the secondary variables (Secondary Variable) and tertiary variables (Tertiary Variable) of HART devices.
HART protocol support
While transmitting 4-20mA analog signals, obtain device status, configuration information and multivariable data through HART protocol
Specifications
|
Parameter |
Specification |
| Model | CC-TAIX11 |
|
Input Channels<sup>(1)</sup> |
16 Channels (12 Single Ended / 4 Differential) |
|
Common Mode Rejection Ratio (dc to 60 Hz, 600 Ω source imbalance) |
70 dB |
|
Common Mode Voltage (dc to 60 Hz) |
-6 to +5 V peak |
|
A/D Converter Resolution |
16 bits |
|
Normal Mode Rejection Ratio (at 60 Hz) |
19 dB |
|
Normal Mode Filter Response |
Single-pole RC, -3 dB @ 6.5 Hz |
|
Maximum Normal Mode Input (differential inputs, no damage) |
±30 V |
|
Crosstalk (dc to 60 Hz, channel-to-channel) |
-60 dB |
|
Input Impedance (voltage inputs) |
>10 MΩ (powered) |
|
Maximum Input Voltage (any input referenced to common, no damage) |
±30 V |
|
Input Scan Rate |
50 ms |
