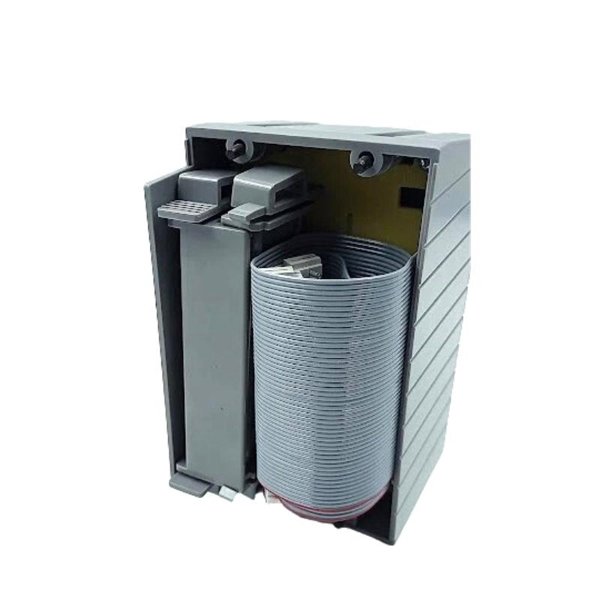

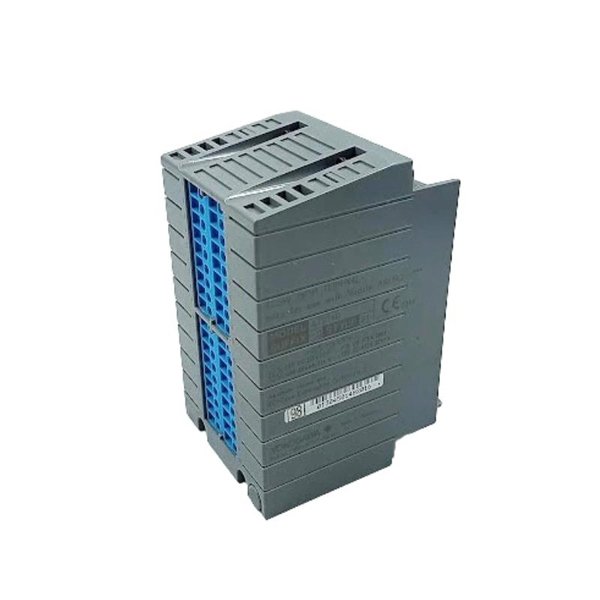

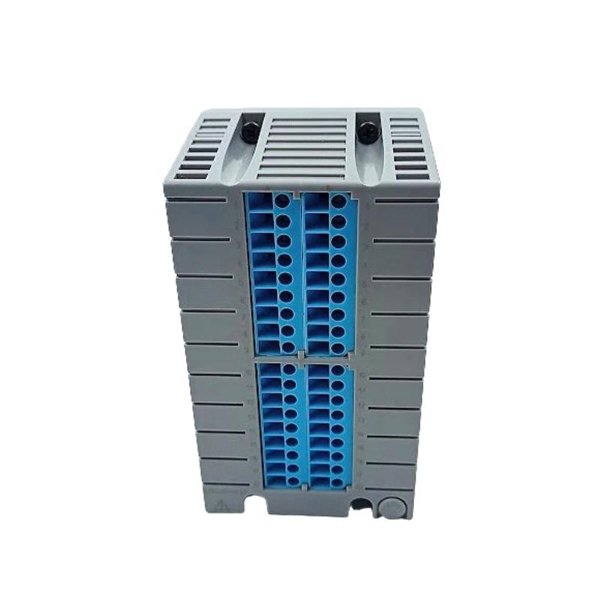

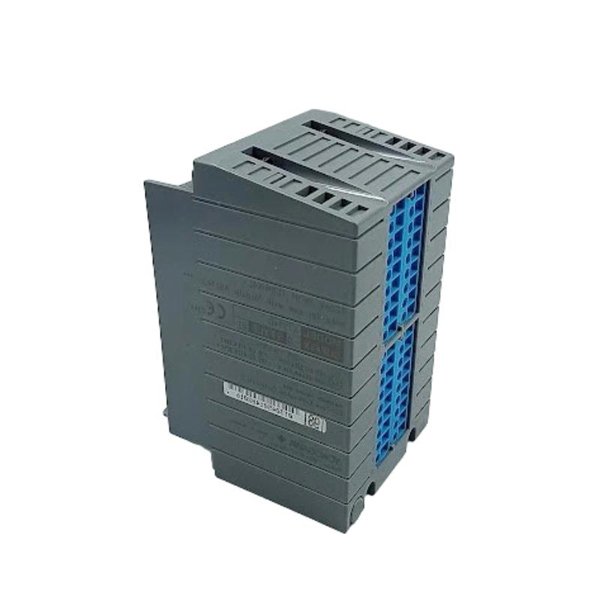

Yokogawa ATSR3D Dual Redundant Pressure Clamp Terminal Block

The Yokogawa ATSR3D is a dual-redundant pressure clamp terminal block designed for high-reliability industrial applications. It provides secure and stable connections for RTD (Resistance Temperature Detector) and potentiometer (POT) inputs, ensuring accurate signal transmission in critical control systems. The dual-redundant architecture allows continuous operation even if one connection path fails, making it ideal for safety-critical and high-availability systems such as Distributed Control Systems (DCS), safety instrumented systems (SIS), and process automation networks.

The ATSR3D integrates a tool-free pressure clamp mechanism, which guarantees strong contact, prevents loosening under vibration, and simplifies installation. Its compact, flame-retardant housing and corrosion-resistant contacts deliver long-term reliability in harsh industrial environments.

Product Specifications

Product Applications

• Distributed Control Systems (DCS): Reliable RTD/POT input wiring for temperature and process control.

• Safety Instrumented Systems (SIS): Maintains dual-redundant paths for high-availability measurement signals.

• PLC Panels: Provides secure sensor connections for automation control modules.

• Process Control Cabinets: Supports high-density wiring with safe and compact design.

• Industrial Equipment: Ensures stable electrical connections in vibration-prone environments.

• Energy and Utility Systems: Facilitates accurate measurement input for power generation and distribution.

Product Advantages

• Dual Redundancy: Continuous operation even if one connection fails.

• Tool-Free Installation: Simplifies wiring and reduces installation time.

• Vibration Resistant: Maintains stable electrical contact in harsh environments.

• High Electrical Safety: Excellent insulation and dielectric strength.

• Compact Design: Saves panel space while supporting multiple channels.

• Durable Materials: Flame-retardant housing and corrosion-resistant contacts ensure long-term reliability.

FAQ

1. What is the main function of the ATSR3D terminal block?

   The ATSR3D provides dual-redundant pressure clamp connections for RTD and POT sensors, ensuring uninterrupted signal transmission in critical control systems.

2. Which types of sensors are supported?

   It supports Resistance Temperature Detectors (RTDs) and potentiometers (POTs), commonly used in temperature and process measurement circuits.

3. Does it support both AC and DC signals?

   Yes. The terminal block is rated for up to 250 V AC or DC, suitable for a wide range of industrial sensor wiring.

4. What is the maximum current per terminal?

   Each terminal supports 10 A, which allows safe transmission of signals from multiple sensors without overheating.

5. How does the dual-redundant design improve system reliability?

   It provides two parallel connection paths for each channel, so if one path fails, the secondary path continues to transmit the sensor signal, preventing process interruptions.

6. Is a special tool required for installation?

   No. The pressure clamp mechanism allows tool-free wiring, simplifying installation and reducing the risk of wiring errors.

7. How does it perform under vibration or mechanical stress?

   The pressure clamp ensures a stable, vibration-resistant connection, maintaining signal integrity even in harsh industrial environments.

8. What are the insulation and dielectric ratings?

   It has an insulation resistance ≥100 MΩ at 500 V DC and a dielectric strength of 1500 V AC for 1 minute, providing high safety against voltage spikes.

9. What mounting options are available?

   The ATSR3D supports DIN rail and panel mounting, providing flexibility for integration into various control panels.

10. Which certifications and standards does it comply with?

    It meets CE, RoHS, and UL standards, ensuring safety, environmental compliance, and suitability for industrial automation applications worldwide.
