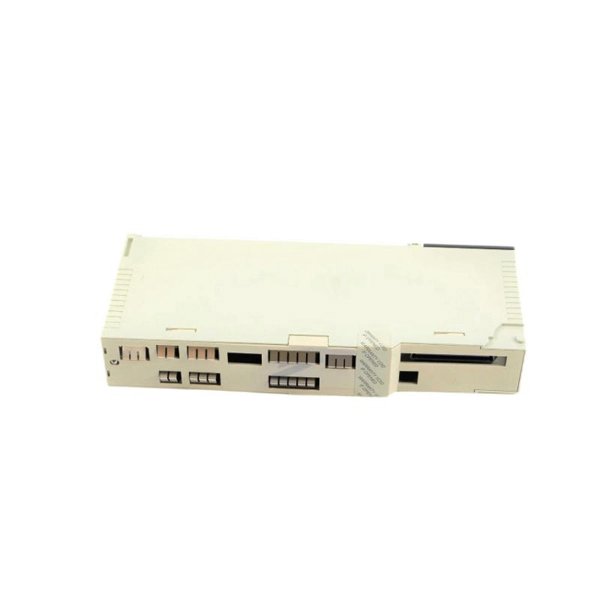

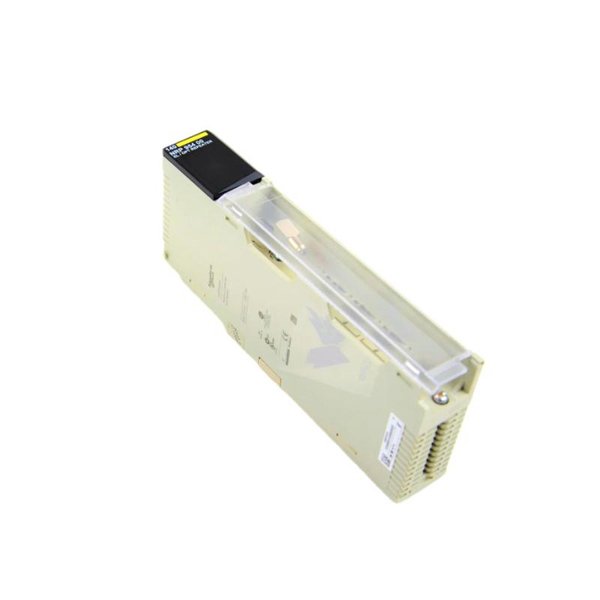

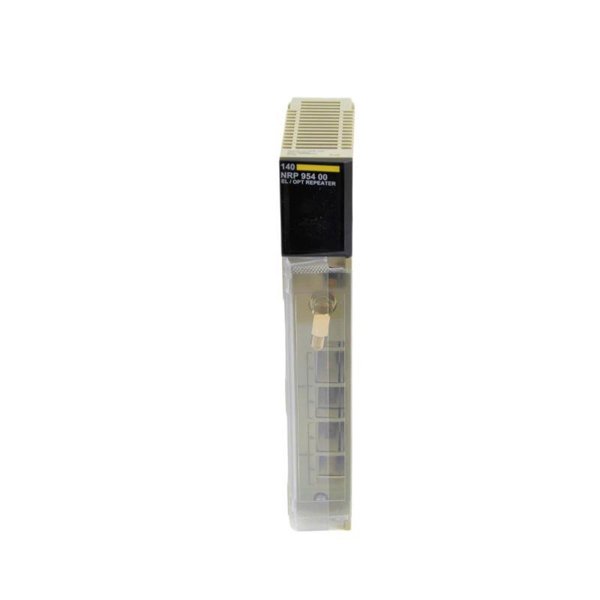

Schneider 140NRP95400 Fibre Optic Repeater

The Schneider Electric 140NRP95400 is a Fibre Optic Repeater Module designed to extend and enhance communication across Quantum Remote I/O (RIO) networks. As part of the robust and scalable Modicon Quantum family, this repeater enables long-distance communication via fiber optics, significantly reducing signal degradation and electromagnetic interference (EMI).

Ideal for industrial environments where distance, noise, and reliability are critical, the 140NRP95400 allows two RIO segments to be connected using a fiber optic link, effectively increasing the network range while maintaining high-speed data integrity. Its modular construction and DIN-rail mounting make it an easy addition to automation control panels.

Technical Specifications

Product Applications

The Schneider 140NRP95400 is primarily used in distributed industrial control networks where reliable, long-distance communication is essential. It is an excellent fit for the following applications:

• Process Automation Plants: Extending RIO networks between control rooms and field instrumentation areas.

• Oil & Gas Facilities: Maintaining communication integrity across remote wellheads and processing units.

• Power Generation Sites: Interfacing between central PLC units and I/O modules in turbine or generator control systems.

• Water and Wastewater Treatment: Providing noise-free data transfer between remote pumping stations.

• Automotive Manufacturing: Supporting large factory floor layouts with minimal latency.

• Pharmaceutical Production Lines: Ensuring precision and compliance in data-critical environments.

By using fiber optic technology, the 140NRP95400 eliminates grounding problems, reduces signal loss, and ensures data transmission is unaffected by industrial electrical noise.

Product Advantages

• Long-Distance Communication: Capable of transmitting data up to 2 km without the need for signal regeneration.

• High Immunity to EMI/RFI: Fiber optic technology ensures reliable operation in electrically noisy environments.

• Enhanced Network Segmentation: Supports complex automation networks by breaking them into manageable optical segments.

• Reduced Maintenance: Fiber connections do not corrode, and the module is highly durable under normal industrial conditions.

• Easy Integration: Mounts seamlessly into existing Quantum racks, using standard connectors and wiring protocols.

• Compact and Modular: Small form factor allows space-saving deployment inside automation panels.

• Fast Diagnostic Feedback: LED indicators provide immediate visual status of power and signal activity.

• Reliability: Built to Schneider Electric’s high industrial quality standards for mission-critical systems.

FAQ

1. What is the main function of the 140NRP95400 module?

   It extends the communication range of Quantum RIO networks using fiber optics, allowing for greater distances and EMI immunity.

2. Which type of fiber optic cable does it support?

   It is designed for multimode fiber optics, ideally 62.5/125 µm cables with ST connectors.

3. Can this module be used to connect different Quantum racks across buildings?

   Yes, it is suitable for long-distance inter-building communication in industrial networks.

4. Is the module hot-swappable?

   Yes, Quantum modules including 140NRP95400 support hot-swapping when installed in compatible backplanes.

5. How is it powered?

   The module receives 5V DC power directly from the Quantum rack backplane.

6. Does it support redundant configurations?

   While it does not inherently offer redundancy, it can be used in parallel with other communication modules for failover paths.

7. What is the maximum communication distance it supports?

   It supports up to 2 kilometers with appropriate multimode fiber.

8. What diagnostics are available on the module?

   It has front-facing LED indicators for signal integrity and power status.

9. Can it be used with non-Schneider devices?

   It is optimized for Schneider Quantum systems and may not function properly with third-party PLCs or RIO protocols.

10. What maintenance is required for fiber connections?

    Regular cleaning of fiber connectors and inspection for physical damage are recommended.
