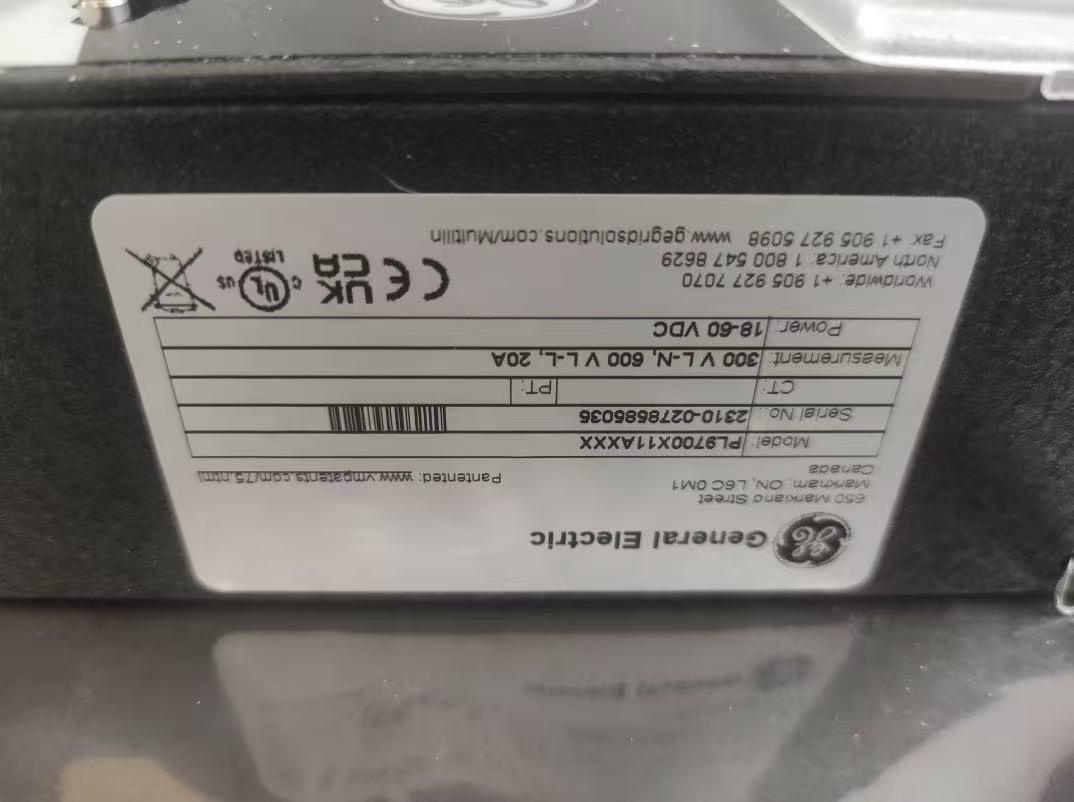

General Electric Multilin EPM 9700 PL9700X11AXXX Power Quality Meter
Item Number: PL9700X11AXXX
Brand:GE Multilin
Lead Time: In stock
Description:Power Quality Meter
Payment: T/T
Product Description
The PL9700X11AXXX is a power quality monitoring and analysis meter in the GE Multilin™ EPM 9700 series. Designed for power quality incident investigation, bill settlement and verification, and professional power quality reporting, this power quality meter provides a comprehensive view of the power system, enabling users to make power-related analyses and decisions, and records data for billing and incident investigation.
Note: This model is also a direct upgrade replacement for the older EPM 9450/9650 models.
Keywords：PL9700-X-1-1-A-X-X-X#PL9700#Multilin EPM 9700
Function & Features
- Precision Metering: The PL9700X11AXXX achieves energy measurement accuracy up to 0.06%, exceeding ANSI Class 0.2 accuracy standards.
- Advanced Harmonic Analysis: The PL9700X11AXXX can measure voltage and current harmonics up to the 511th order.
- High-Resolution Waveform Recording: The PL9700X11AXXX supports waveform capture at up to 1024 samples per cycle.
- Preconfigured Log: The PL9700X11AXXX comes preconfigured with automatic logging of 142 basic parameters.
Specifications
|
Category |
Details |
|
Model Number |
PL9700X11AXXX/PL9700-X-1-1-A-X-X-X |
|
Voltage Input Range |
(20 to 720) V AC; Pickup voltage: 5 V AC |
|
Measurement Method |
Up to 1024 samples per cycle (programmable); 16 Bit A/D resolution – multiple simultaneous converters; Multi - Gain™ sensing method; True RMS |
|
Current Input Range |
Supports Class 2 and Class 20 in one input configuration; Programmable to any CT ratio; Fault current recording to +/- 80 A peak; Pick - up current: 1 mA |
|
Dimension |
14"×10"×6" (35.6cm × 25.4cm × 15.2cm) |
|
Weight |
2.2kg Displays and I/O modules ship in separate containers |
FAQ
Q: What is the payment method?
A: T/T
Q: Is technical support available?
A:Yes, we have a professional technical team to address technical issues.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
