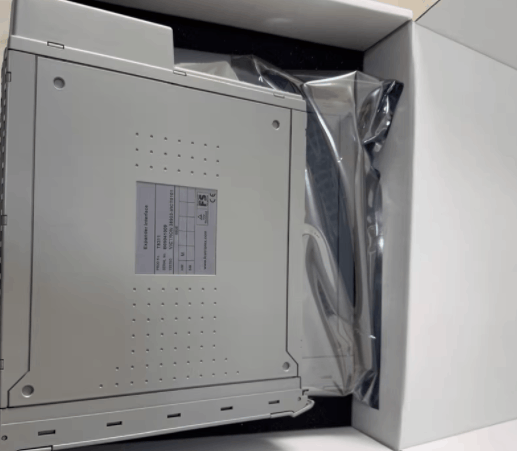

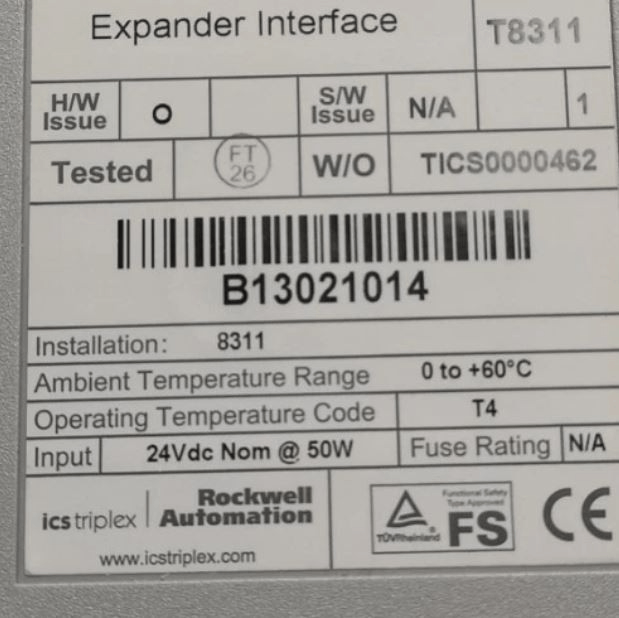

ICS T8311 Trusted TMR Expander Interface Board
Item Number:T8311
Brand:ICS Triplex
Price:$1
Lead Time: In stock
Description:Trusted TMR Expander Interface Board
Payment: T/T
Product Description
The ICS T8311 Trusted TMR Expander Interface Module is a control system module that is usually installed in a Trusted Controller chassis. It serves as the primary interface to connect the Inter-Module Bus (IMB) and the Expander Bus in the chassis, supporting the expansion of multi-chassis systems via Unshielded Twisted Pair (UTP).
Function & Features
- TMR Fault-Tolerant Architecture: The T8311 utilizes a triple-module redundant (TMR) architecture in a lockstep configuration, achieving redundancy through three independent fault containment zones (FCR A, B, and C). Each zone includes an expander bus interface, an inter-module bus (IMB) interface, active/standby mode interfaces, control logic, communication transceivers, and power supplies.
- Inter-Module Bus (IMB): The T8311 communicates with the TMR processor via the controller chassis backplane. All transactions are voted on, localizing faults to the IMB.
- Expander Bus: The T8311 utilizes a triple point-to-point architecture to communicate with the TMR expander processor in the expander chassis. Each bus channel contains independent command and response media, and a voting mechanism at the interface is tolerant to cable failures.
Specifications
|
Parameter |
Specification |
| Model | T8311 |
|
Voltage Range |
20 to 32V dc |
|
Maximum Load |
40W |
|
Heat Dissipation |
40W |
|
Use with Chassis |
T8300 |
|
Module Clocks |
50MHz |
|
Expander Bus Data Rate |
250Mbps |
|
I/O Interface |
Expander Chassis backplane |
|
Expander Comms Max Distance - Using TC - 301 copper cable |
30m |
|
Expander Comms Max Distance - Using fibre converters |
10km |
|
Dimensions - Height |
266mm (10.5ins) |
|
Dimensions - Width |
31mm (1.2ins) |
|
Dimensions - Depth |
303mm (12.0ins) |
|
Weight |
1.14kg (2.5lbs.) |
FAQ
Q: What is the brand?
A:ICS Triplex(Rockwell)
Q: What is the type?
A:Trusted TMR Expander Interface Board
Q: What is the warranty?
A: 1 year
Q: Where is the shipping location?
A: Xiamen
Q: What is the payment method?
A: T/T
