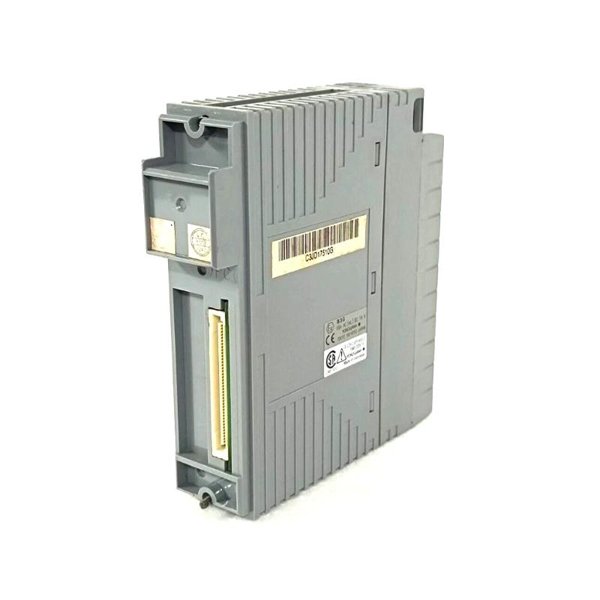

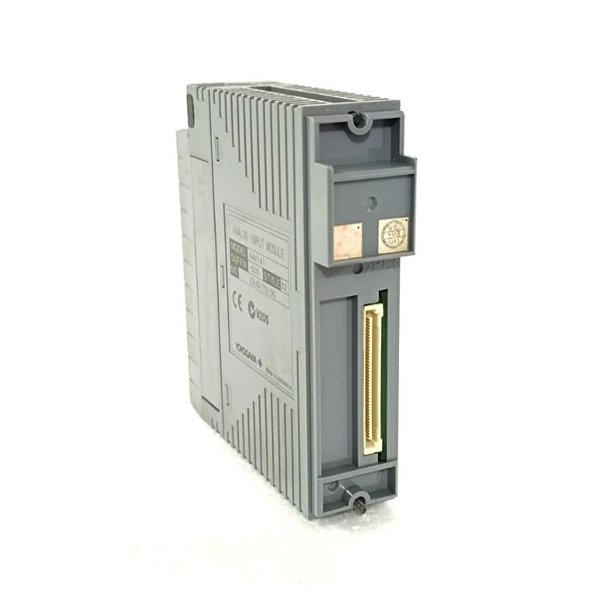

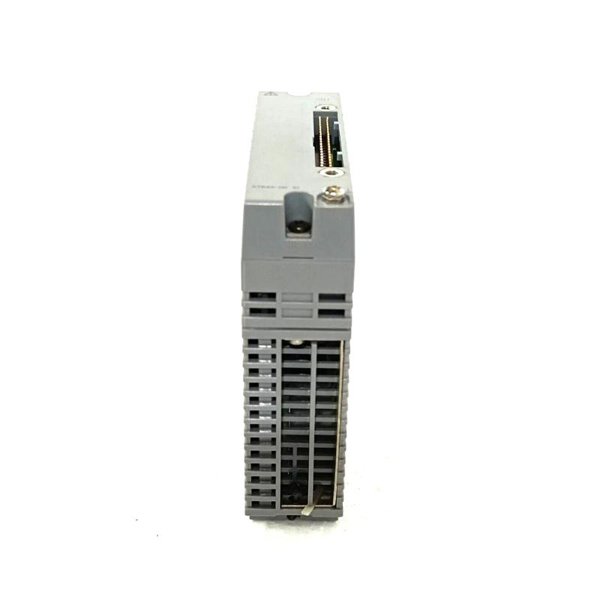

Yokogawa AAV544 Voltage Output Module

The Yokogawa AAV544 is a voltage output module designed to provide precise analog voltage signals from Yokogawa controllers to field devices. It is ideal for controlling actuators, valves, and other field instrumentation in automated process systems.

Key Features

• Provides accurate and stable voltage output for field devices

• Supports multiple output ranges for flexible application

• Compatible with Yokogawa S and ESB series controllers

• Compact design suitable for DIN rail or panel mounting

• High reliability in harsh industrial environments

• Monitors module status and supports diagnostic feedback

Technical Specifications

Industry Applications

• Oil & Gas – valve and actuator control

• Power Generation – turbine and generator control

• Petrochemical & Chemical – process instrumentation and control

• Water & Wastewater – pump and valve actuation

• Manufacturing – machine automation and process control

• Food & Beverage – automated process control systems

Advantages

• Provides precise and stable voltage signals for field devices

• Compact design for flexible installation

• Robust construction ensures reliability in industrial environments

• Compatible with a wide range of Yokogawa controllers and modules

• Supports diagnostic monitoring for preventive maintenance

• Enables accurate control of actuators, valves, and other devices

Frequently Asked Questions (FAQ)

Q1: What is the main function of the AAV544?

It provides accurate voltage output signals from Yokogawa controllers to field devices.

Q2: How many channels does it support?

It supports 4 channels.

Q3: What is the output voltage range?

0–10 VDC, configurable per application.

Q4: What is the required load resistance per channel?

Each channel requires ≥ 1 kΩ load resistance.

Q5: What is the response time?

Less than 10 ms.

Q6: What are its dimensions and weight?

107.5 mm × 130 mm × 32.8 mm, approximately 0.2 kg.

Q7: Can it be mounted on a DIN rail?

Yes, it supports DIN rail or panel mounting.

Q8: Is it suitable for industrial environments?

Yes, it is designed for robust industrial conditions.

Q9: Does it provide diagnostic feedback?

Yes, it supports module status monitoring and diagnostics.

Q10: Which industries commonly use this module?

Oil & Gas, Power Generation, Petrochemical, Water & Wastewater, Manufacturing, and Food & Beverage.
