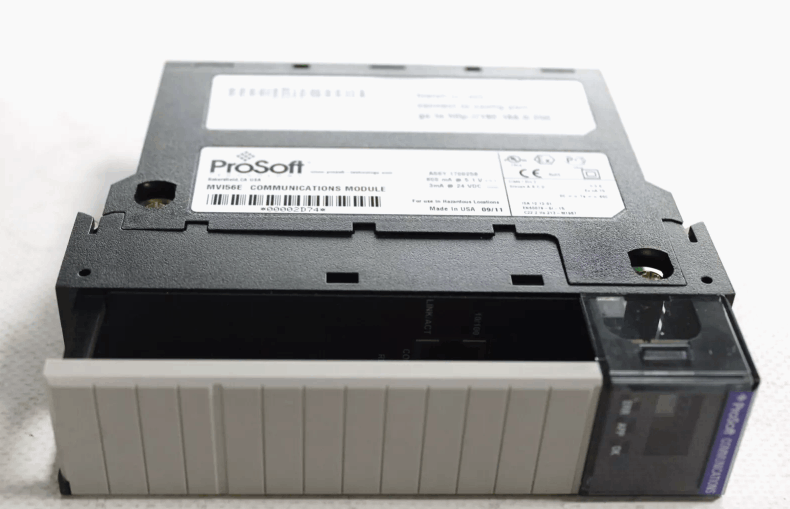

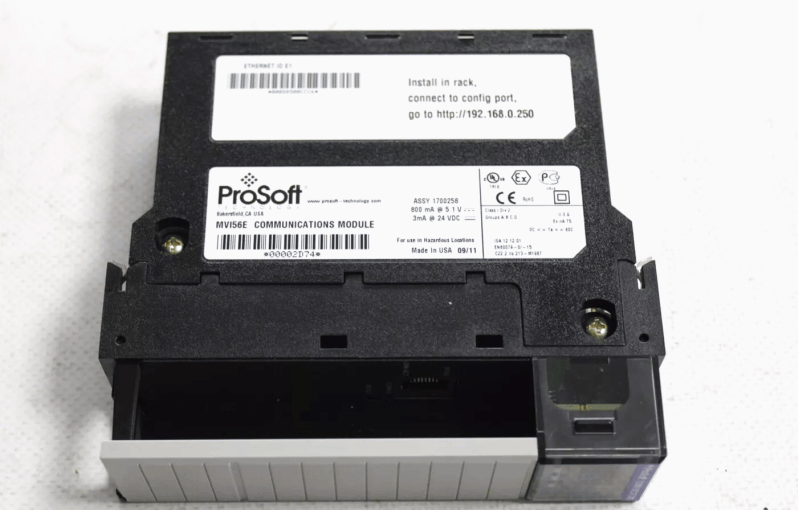

Allen-Bradley MVI56E-MNET Modbus TCP/IP Interface Module

Allen-Bradley MVI56E-MNET is a Modbus TCP/IP client/server enhanced network interface module developed by ProSoft Technology for Allen-Bradley, connected to the ControlLogix controller, the module provides a TCP/IP interface between the ControlLogix processor and devices on the Ethernet, enabling the ControlLogix system to act as a MODBUS master or MODBUS client via a TCP/IP connection.The following is a detailed description of the MVI56E-MNET:

Fuctions & Features

• The Allen-Bradley MVI56E-MNET supports ladder logic programs and configuration files for existing MVI56 series projects, allowing direct replacement of older modules without reprogramming.

• The Allen-Bradley MVI56E-MNET supports configuration upload/download via the module Ethernet port or CIPconnect®.

• The Allen-Bradley MVI56E-MNET also supports ProSoft Discovery Services (PDS) to automatically locate the MVI56E module on Ethernet and assign a temporary IP address.

• The Allen-Bradley MVI56E-MNET has one available 5000 Word, 16-bit register for custom data.

Specification
