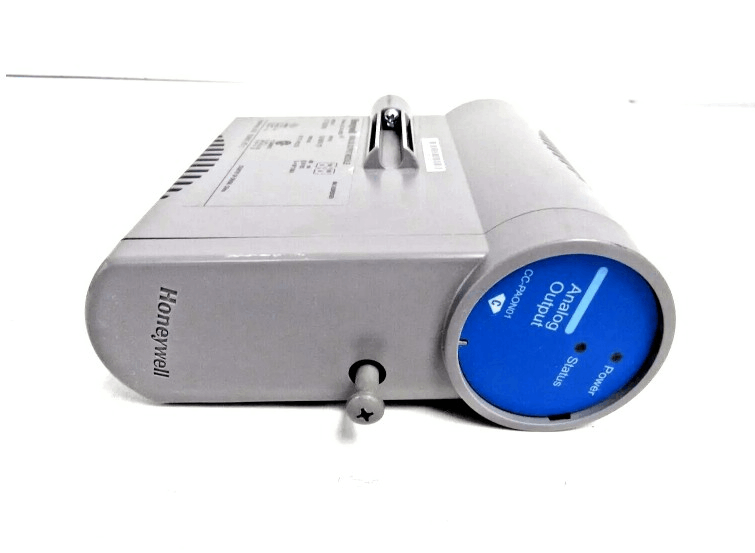

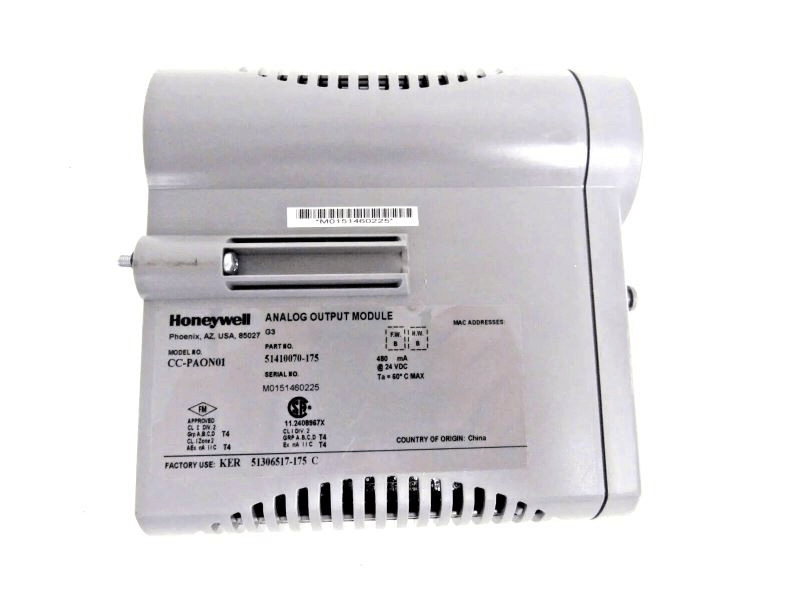

Honeywell CC-PAON01 Analog Output Module
Item Number:CC-PAON01
Brand:Honeywell
Lead Time: In stock
Description:HART Analog Output Module
Payment: T/T
Product Description
Honeywell CC-PAON01 analog output module is a device that can provide high-level constant current for actuators and recording/indicating devices for Experion® PKS C300 control system.
It has many features and configurable functions. CC-PAON01 provides 4-20 mA high-level constant current output for actuators and other devices to control the operation of related equipment.
Features of CC-PAON01
- Safety Configuration: CC-PAON01 supports FAILOPT parameters, users can configure safety state behavior by channel, such as holding the last value or switching to a safe value.
- Output Readback: CC-PAON01 can read the output value and issue an alarm when there is a difference, which allows users to understand the output status and troubleshoot in time.
- Open Circuit Detection: CC-PAON01 can detect and report open circuit conditions in the field, notifying through channel soft fault indication.
Specification
|
Parameter |
Specification |
|
Output Type |
4 - 20 mA |
|
Output Channels |
16 |
|
Output Ripple |
< 100 mV peak - to - peak at power line frequency, across 250 Ω load |
|
Output Temperature Drift |
0.005% of Full Scale/°C |
|
Output Readback Accuracy |
± 4% of Full Scale |
|
Output Current Linearity |
± 0.05% of Full Scale nominal |
|
Resolution |
± 0.05% of Full Scale |
|
Calibrated Accuracy |
± 0.35% of Full Scale (25°C) including linearity |
|
Directly Settable Output Current Range |
0 mA, 2.9 mA - 21.1 mA |
|
Maximum Resistive Load (24 V supply = 22 VDC - 28 VDC) |
800 ohms |
|
Maximum Output Compliant Voltage (24 V supply = 22 VDC - 28 VDC) |
16 V |
|
Maximum Open Circuit Voltage |
22 V |
