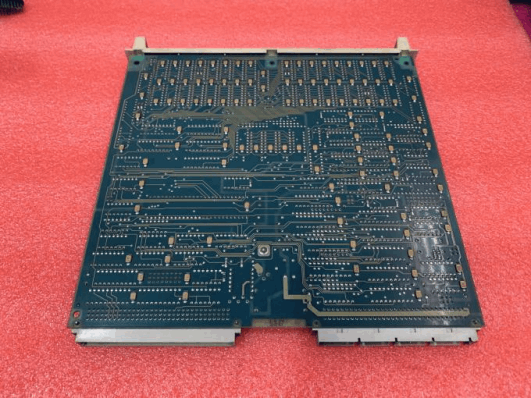

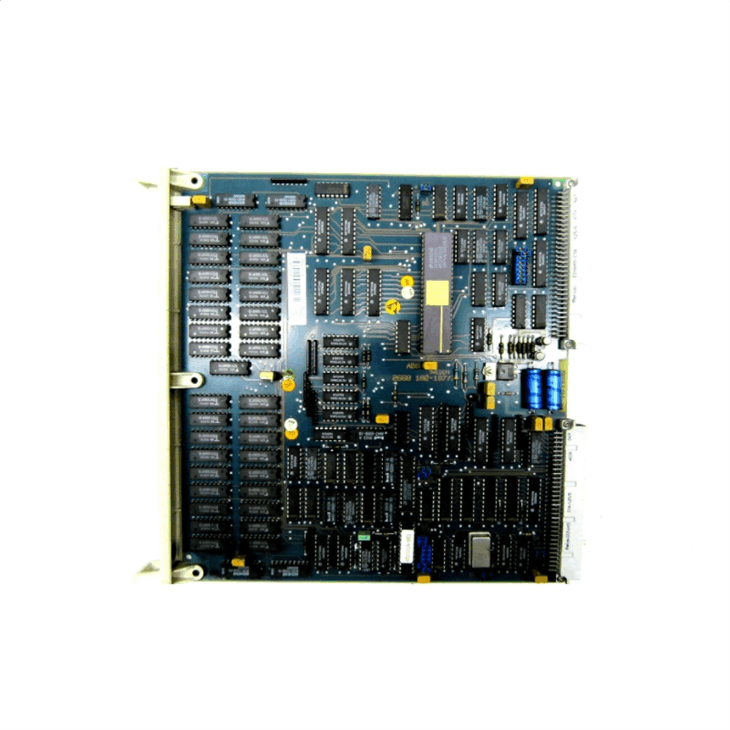

ABB DSMB 175 57360001-KG Memory Board, Dynamic

ABB DSMB 175 57360001-KG memory board is a dynamic memory module for ABB industrial control and automation systems. It has a storage capacity of 4MB and can accommodate a large amount of operating parameters, configuration information and process data. It has read and write functions based on the characteristics of dynamic RAM, which can process and store data in a timely manner, especially in process control scenarios. When writing data, the control circuit manages the conduction and cutoff of the transistor, charging the capacitor for "1" and discharging it for "0".

Function & Features

• Storage capacity: ABB DSMB storage board usually has a storage capacity of 4MB, which can store a large amount of operating parameters, configuration information, process data, etc.

• Read and write function: ABB DSMB has read and write capabilities based on the characteristics of dynamic RAM. Whether it is process control or other places where control parameters need to be updated quickly, it can process and store them in time.

• Data writing: When the ABB DSMB storage board needs to write data to the storage unit, the control circuit controls the conduction and cutoff of the transistor according to the input signal. If "1" is to be written, the capacitor is charged; if "0" is to be written, the capacitor is discharged.

Specifications
