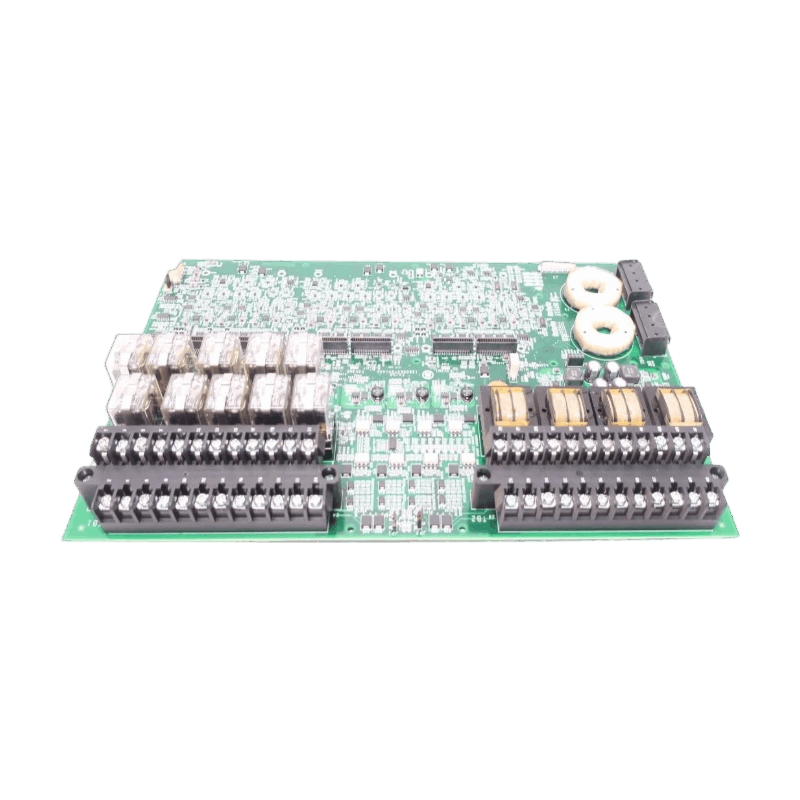

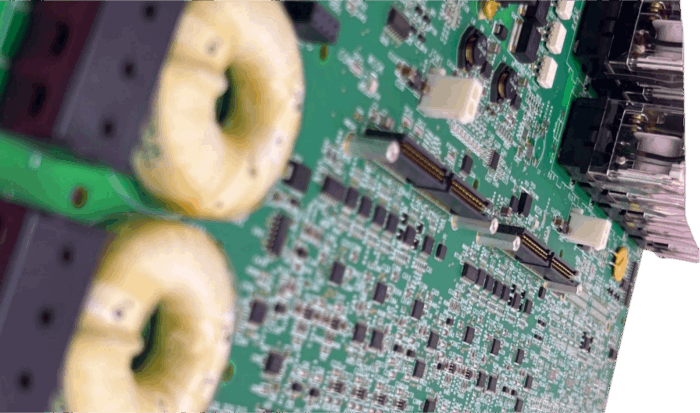

General Electric IS200ESYSH3A | IS200ESYSH3ABB I/O Terminal Board
Item Number: IS200ESYSH3A IS200ESYSH3ABB
Brand: GE
Lead Time: In stock
Description: I/O Terminal Board
Payment: T/T
Product Description
GE IS200ESYSH3A/IS200ESYSH3ABB is an input/output (I/O) terminal board. This board serves as the interface between the control system and external sensors, actuators, and devices (such as generator voltage transformers (PTs), current transformers (CTs), and trip relays), processing all analog and digital input and output signals.
Function & Features
Functional Role: IS200ESYSH3A / IS200ESYSH3ABB represents the excitation control system I/O interface, which provides basic input and output connections for the exciter within the system.
Connection method: All external interfaces are connected through the terminal strips installed on the IS200ESYSH3A motherboard.
Operation mode: The IS200ESYSH3A board is an H3 model and operates in simplex control mode without redundancy.
Technical Specifications
|
Parameter |
Description |
|
Model Number |
IS200ESYSH3A/IS200ESYSH3ABB |
|
Board Type |
|
|
Generator CT Inputs |
2 independent input channels |
|
Generator PT Inputs |
2 independent three - phase voltage inputs |
|
Auxiliary Contact Inputs (DI) |
7 |
|
Trip Relay Outputs (DO) |
2 |
|
Height |
215.45mm |
|
Depth |
169.22 mm |
|
Estimated Net Weight |
0.45 kg |
