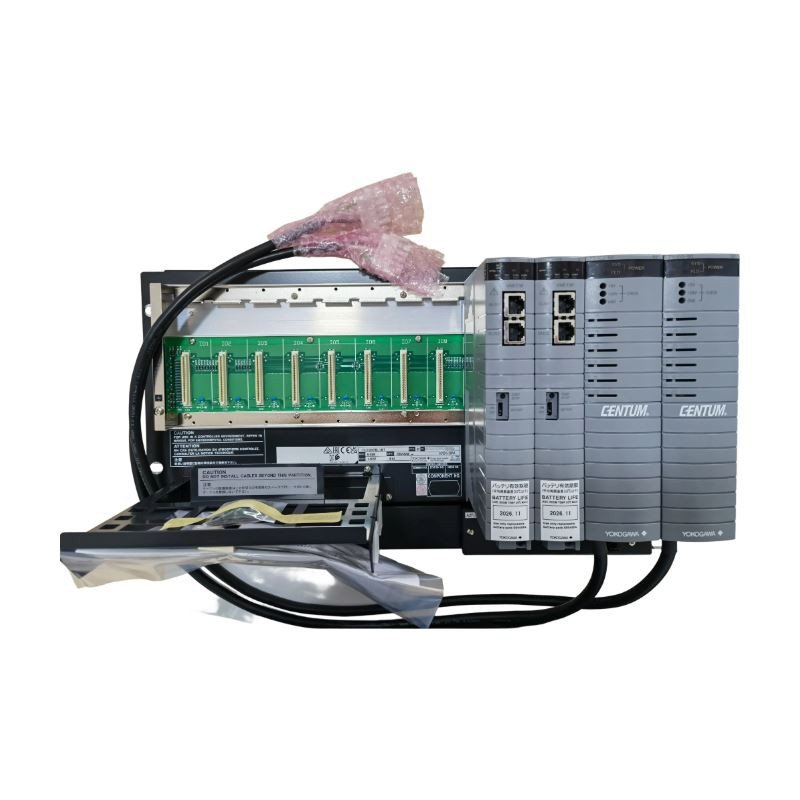

Yokogawa AFV30D-A41252 Field Control Unit
Item Number: AFV30D-A41252
Brand:Spares
Lead Time: In stock
Description:Field Control Unit
Payment: T/T
Product Description
Yokogawa AFV30D-A41252 is a field control unit (FCU) that serves as the processing component for the field control station in the Yokogawa CENTUM VP control system. This unit is a 19-inch rack-mount FIO type. The "D" in the model name stands for Dual, indicating that this FCU supports dual redundancy configurations for the processor module.
Note: The AFV30D-A41252 requires CENTUM VP R6.01 or later version field control station software. Some versions require a software patch supporting CP471. It can only be used in conjunction with the EC401 ESB bus coupler module of style code S3 or later.
Ordering information
| Category | Code | Description |
|---|---|---|
| Model | AFV30D | Duplexed Field Control Unit (for Vnet/IP and FIO, 19-inch Rack Mountable) |
| -A | Standard type (for CP471) (*1) | |
| Suffix Codes | 4 | Dual-redundant Vnet/IP, dual-redundant power supply |
| 1 | Always 1 | |
| 2 | 220-240 V AC power supply (*4) | |
| 5 | Basic type with no explosion protection | |
| 2 | Always 2 (R6.01 or later) |
Function & Features
- Positioning and Application: The AFV30D-A41252 is the core of the field control station (FCS) control function, used to connect ESB bus node units, optical ESB bus node units, and I/O modules.
- Module Configuration: Slots 7 and 8 of the AFV30D-A41252 are used to install EC401/EC402 ESB bus coupler modules. For dual-redundancy configurations, both slots must be installed; for single-redundancy configurations, only slot 7 needs to be installed, and slot 8 should be left empty.
- Optional Configurations for Special Scenarios: The AFV30D-A41252 can be configured with marine standard (option code "/MRN"), ATEX directive compliance (option code "/ATDOC"), and ACUKT compatibility (option code "/HKU") options.
Specification
| Parameter | Description |
|---|---|
| Model Number | AFV30D-A41252 |
| Grounding | M4 screw terminal connection |
| READY Contact Output | M4 screw terminal connection |
| Network | Connect UTP cable (CAT5e or better) to Layer 2 switch. |
| Mounting (19-inch Rack) | Rack mount (M5x8 screws), Insulation bush (accessory) |
| Weight | Approx. 8.0 kg (AFV30D) |
