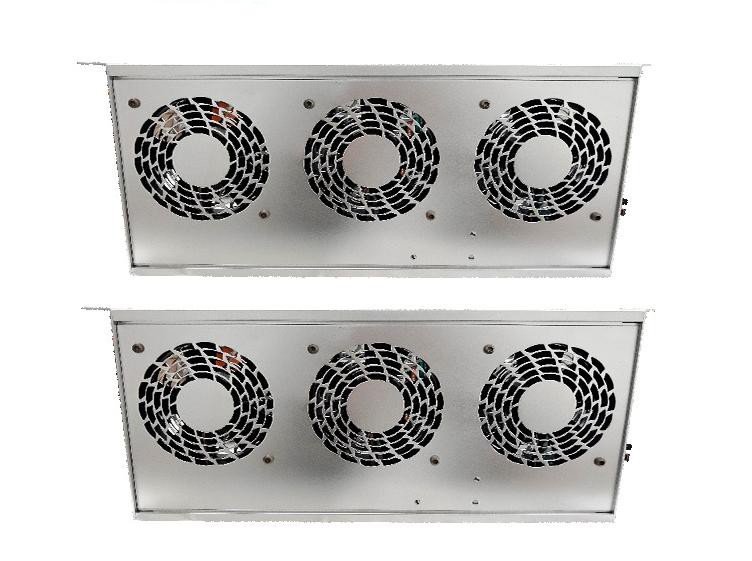

Hima K9203 Rack Fan
Product Description
HIMA K9203 rack fan is a circulation fan designed for 19-inch racks. It is mainly used for forced ventilation. It cools the equipment in the rack by sucking air from below and blowing it out from the top. It can be installed anywhere in a 19-inch rack. It is equipped with 3 axial fans, redundant power supplies, fan operation monitoring and voltage monitoring components. The connector plug can be connected to the power supply, and some terminals can also be connected to redundant power supplies or photoacoustic detectors.
Related products: HIMA K9203A
Function & Features
- 3 axial fans: airflow design, cool air is sucked in from the bottom and hot air is exhausted from the top, optimizing the heat dissipation inside the rack.
- Forced ventilation: K9203 is customized for HIMA 19-inch sub-rack, and the fan layout matches the rack.
- Redundant power supply support: K9203 supports dual power input (connect the backup power supply through terminal 3).
- Alarm interface: Terminals 4~6 can be connected to the sound and light alarm to indicate abnormalities (such as fan stop).
F3238 Specifications
|
Parameter |
Specification |
|
Model |
K9203 |
|
Material |
Aluminum, anodized |
|
Operating Voltage |
24 VDC (-15% to +20%) |
|
Ripple Current |
≤ 15% |
|
Max. Current Draw |
750 mA |
|
Air Flow |
300 m³ per hour |
|
Rated Speed |
2800 min⁻¹ |
|
Sound Pressure Level |
Approx. 55 dB(A) |
|
Lifetime @ 40°C |
62,500 hours |
|
Mounting Space |
19", 1 RU (215 mm depth) |
|
Weight |
1.8 kg |
