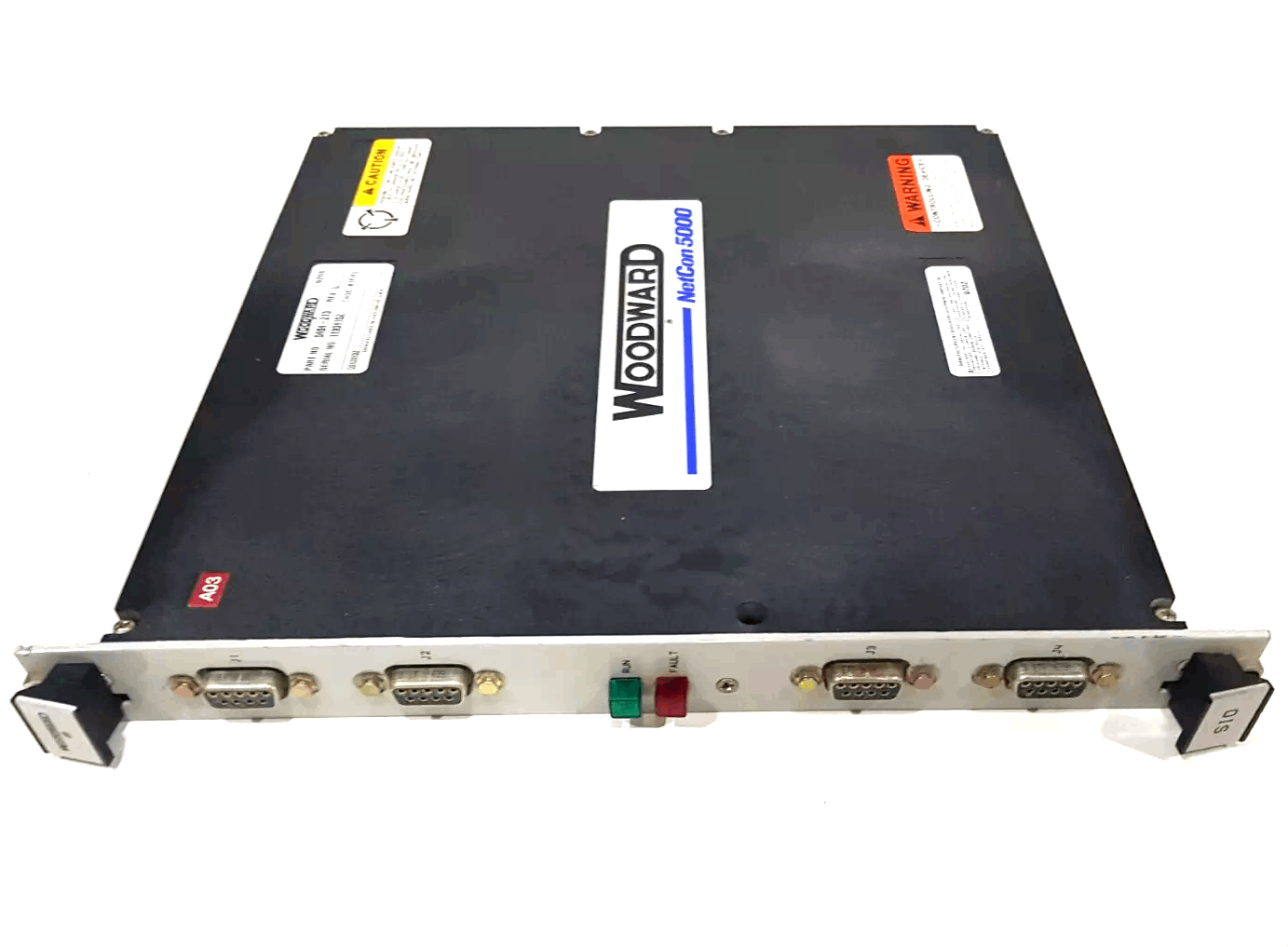

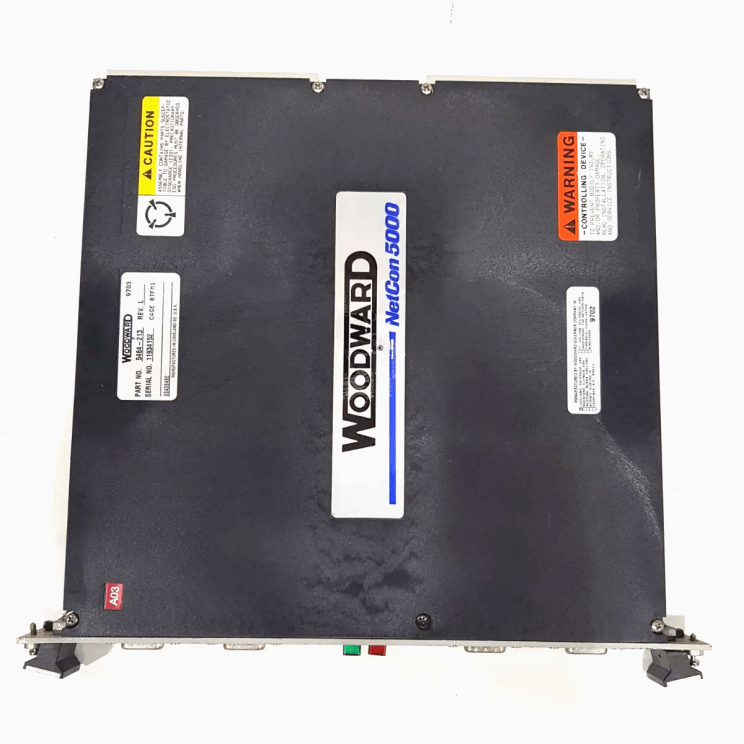

Woodward 5464-213 Netcon Serial I/O Module
Item Number:5464-213
Brand:Woodward
Price:$1
Lead Time: In stock
Description:Netcon Serial I/O Module
Payment: T/T
Product Description
Woodward 5464-213 is a Netcon serial input/output module, belonging to the Woodward 5400 series. This module acts as a bridge between the VME bus and four serial communication ports. It adopts 68030 processor architecture, has no physical switch, and only monitors the status through the FAULT LED indicator.
Function & Features
Port configuration:
- J1/J2 port: standard RS-232 interface
- J3/J4 port: supports RS-232/422/485 three protocols (38.4K/57.6K baud rate must be the same speed)
Processing architecture：
- 68030 processor: efficient management of data transmission between VME bus and serial port
- Local storage: 4KB dual-port RAM, 64KB PROM
Specifications
|
Parameter |
Specification |
|
Processor |
Motorola 68030 |
|
Serial Ports |
4 total: |
|
- Ports 1 & 2: RS-232 (110-38.4 Kbaud) |
|
|
- Ports 3 & 4: RS-232/422/485 (38.4/57.6 Kbaud) |
|
|
Memory |
4KB Dual-Port RAM + 64KB PROM |
|
Dimensions |
30 * 20 * 25 (cm) |
|
Indicators |
Single FAULT LED |
|
Protocol Support |
RS-232, RS-422, RS-485 |
|
VME Bus Standard |
