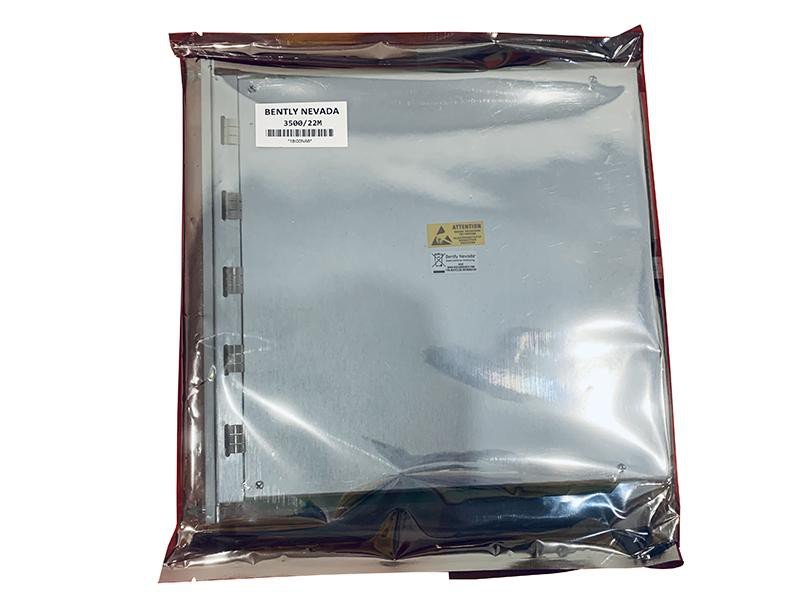

Bently Nevada 3500/22M 138607-01 Transient Data Interface Module
Item Number: 3500/22M 138607-01
Brand:Bently Nevada
Price:$1
Lead Time: In stock
Description: Transient Data Interface Module
Payment: T/T
Product Description
The 3500/22M 138607-01 Transient Data Interface Module (TDI) is a communications and data acquisition module in the Bently Nevada 3500 Series Machinery Monitoring System. It combines the functionality of the 3500/20 Rack Interface Module (RIM) with the data collection capabilities of a communications processor (such as TDXnet), sits in the slot next to the 3500 rack power supply, and interacts with the M Series Monitors (3500/40M, 3500/42M, etc.) to collect transient dynamic (waveform) data and transmit the data to the host software over an Ethernet link.
Function & Features
Supports multiple data types
- Steady-state data (standard feature) to continuously monitor equipment health.
- Transient dynamic (waveform) data (requires optional channel-enabled disk).
- High-resolution transient capture (for vibration, speed, and process signal analysis).
Ethernet Communications-Data is transmitted to
- System1™ Condition Monitoring Software (for predictive maintenance).
- 3500 Configuration Software (for system setup and diagnostics).
- Supports M-Series monitors (e.g., 3500/40M, 3500/42M)
Specifications
|
Parameter |
Details |
| Series | 3500/22M |
| Model number | 138607-01 |
|
Power Consumption |
10.5 Watts |
|
Front Panel |
USB - B |
|
10Base - T/100Base - TX I/O |
10Base - T or 100Base - TX Ethernet, autosensing |
|
100Base - FX I/O |
100Base - FX Fiber - Optic Ethernet |
|
Trip Multiply - Description |
Used to place 3500 rack in Trip Multiply |
|
Trip Multiply - Maximum Current |
<1 mAdc, Dry Contact to Common |
|
Operating Temperature |
-30°C to 65°C (-22°F to +149°F) |
|
Dimensions (Height x Width x Depth) |
241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in) |
|
Weight |
0.91 kg (2.0 lbs) |
Loading comments...
Bently Nevada 3500/22M 138607-01 Transient Data Interface Module
Item Number: 3500/22M 138607-01
Brand:Bently Nevada
Price:$1
Lead Time: In stock
Description: Transient Data Interface Module
Payment: T/T
Product Description
The 3500/22M 138607-01 Transient Data Interface Module (TDI) is a communications and data acquisition module in the Bently Nevada 3500 Series Machinery Monitoring System. It combines the functionality of the 3500/20 Rack Interface Module (RIM) with the data collection capabilities of a communications processor (such as TDXnet), sits in the slot next to the 3500 rack power supply, and interacts with the M Series Monitors (3500/40M, 3500/42M, etc.) to collect transient dynamic (waveform) data and transmit the data to the host software over an Ethernet link.
Function & Features
Supports multiple data types
- Steady-state data (standard feature) to continuously monitor equipment health.
- Transient dynamic (waveform) data (requires optional channel-enabled disk).
- High-resolution transient capture (for vibration, speed, and process signal analysis).
Ethernet Communications-Data is transmitted to
- System1™ Condition Monitoring Software (for predictive maintenance).
- 3500 Configuration Software (for system setup and diagnostics).
- Supports M-Series monitors (e.g., 3500/40M, 3500/42M)
Specifications
|
Parameter |
Details |
| Series | 3500/22M |
| Model number | 138607-01 |
|
Power Consumption |
10.5 Watts |
|
Front Panel |
USB - B |
|
10Base - T/100Base - TX I/O |
10Base - T or 100Base - TX Ethernet, autosensing |
|
100Base - FX I/O |
100Base - FX Fiber - Optic Ethernet |
|
Trip Multiply - Description |
Used to place 3500 rack in Trip Multiply |
|
Trip Multiply - Maximum Current |
<1 mAdc, Dry Contact to Common |
|
Operating Temperature |
-30°C to 65°C (-22°F to +149°F) |
|
Dimensions (Height x Width x Depth) |
241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in) |
|
Weight |
0.91 kg (2.0 lbs) |
