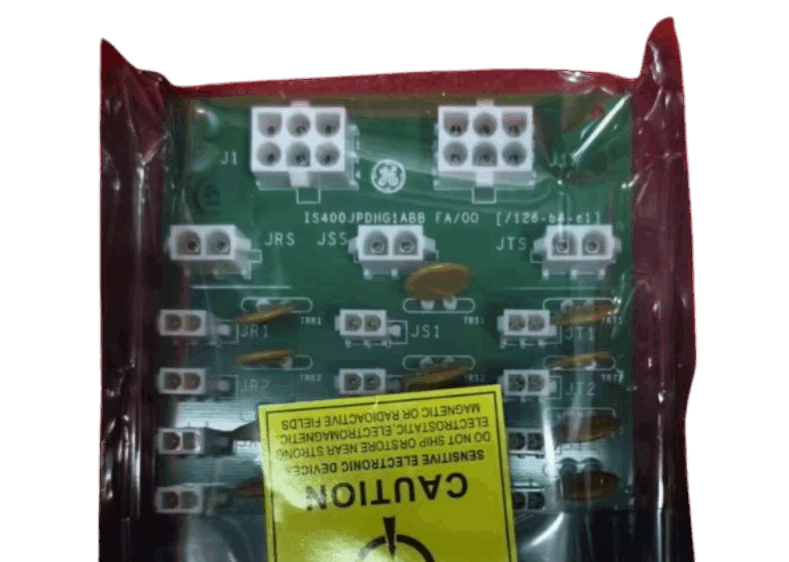

General Electric IS400JPDHG1A Power Distribution Board
Item Number: IS400JPDHG1A
Brand: GE
Lead Time: In stock
Description: Power Distribution Board
Payment: T/T
Product Description
GE IS400JPDHG1A is a power distribution board from the Mark Vie series. This board is a power management hub that receives power from the input power source and distributes it to the components it is connected to.
The IS400JPDHG1A is the power supply for up to 24 Mark Vie I/O packages and 3 Ethernet switches, serving as the "power heart" of the Mark Vie system cabinet.
Function & Features
- Daisy-Chain Expansion: Multiple IS400JPDHG1A modules can be daisy-chained together using the onboard, unfused J1X connector.
- I/O Power Supply: The IS400JPDHG1A divides its 24 outputs into three equal groups of 8, each powered by R, S, and T power supplies.
- Branch Circuit Protection: Each output circuit powering the I/O pack is protected by a positive temperature coefficient fuse.
- Differentiated protection: The IS400JPDHG1A provides protection for all output interfaces of I/O components, but does not provide additional protection for the three output interfaces that power the Ethernet switch.
Technical Specifications
|
Parameter |
Details |
| Model | IS400JPDHG1A |
|
Input Connector |
6-pin J1 connector -3 pins: Connect to three independent 28 V DC power supplies (R, S, T respectively) -3 pins: For common return current |
|
Output Quantity |
24 channels |
|
Grouping Method |
Divided into 3 groups, 8 channels in each group |
|
Protection Method |
No fuse protection, directly from R, S, T input buses |
|
Expansion Connector |
J1X connector (unfused) |
|
Dimensions |
-Height: 224.52 mm -Width: 134.82 mm |
