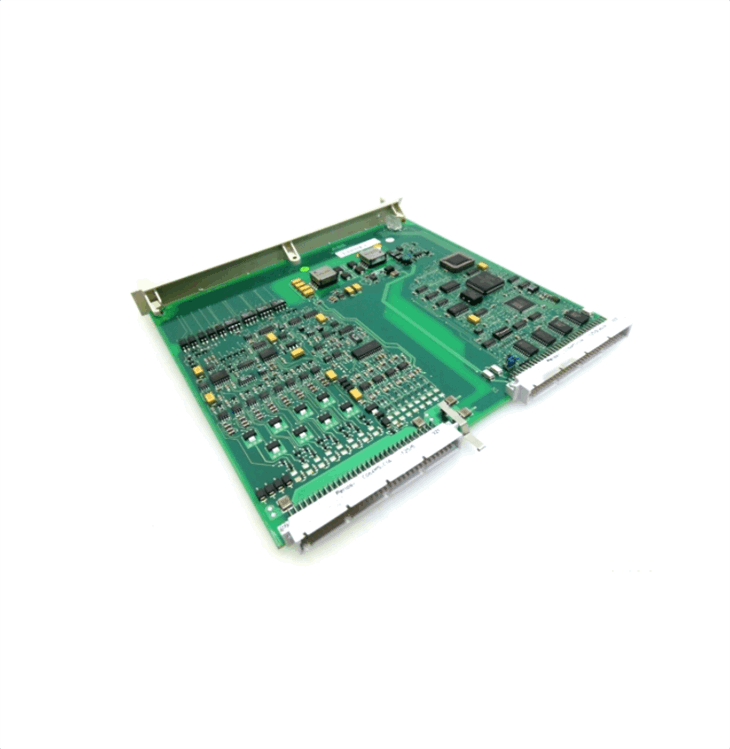

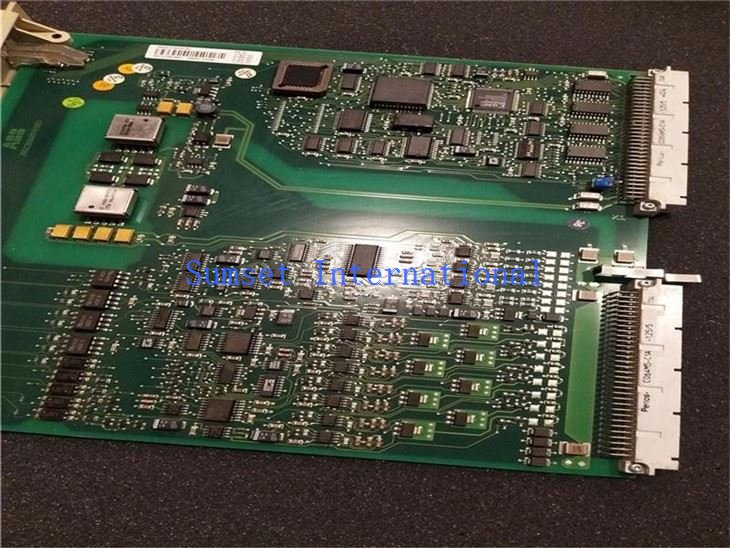

ABB DSAX 110A 3BSE018291R1 Analog I/O Board

ABB DSAX 110A 3BSE018291R1 is an analog input/output card, which is part of ABB Advant Master process control system. ABB DSAX 110A has 8-channel analog input function, collects and processes analog signals such as voltage and current, and feeds back the operating parameters of field equipment to the system. This component is exempted from the relevant restrictions of 2011/65/EU (RoHS) Directive because DSAX 110A contains substances such as lead.

Function & Features

• Channels and connections: ABB DSAX 110A has 8 analog input channels, using direct ground input (single-ended) mode, which can collect voltage signals such as 0 to +10 V, or 0 to +20 mA, 4 to 20 mA current signals (4 - 20 mA signal needs to be matched with 250 Ω shunt resistor, the accuracy is 0.05%; if 500 Ω shunt resistor is used, the accuracy is 0.1% on DSTA 001), which can match a variety of sensor output signals.

• Resolution: ABB DSAX 110A analog input resolution is 12-bit unipolar, which can quantize and convert analog signals more accurately.

• RoHS exemption: ABB DSAX 110A is exempted from the restrictions of the RoHS directive and contains specific substances (such as lead) that exceed the limits allowed by the RoHS directive. Such special components can continue to be used legally in the field of industrial control.

Specifications
