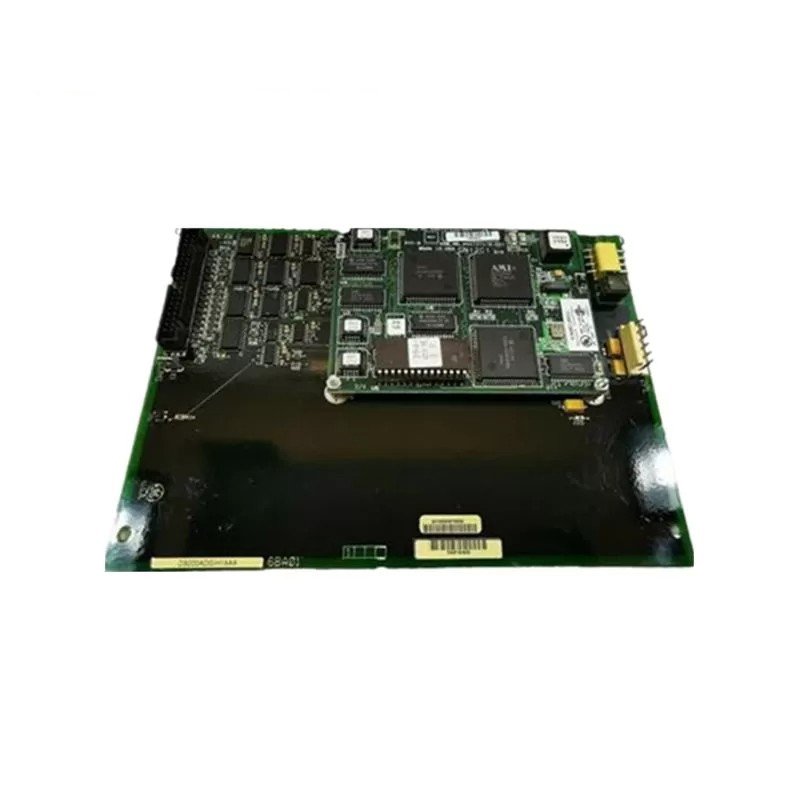

GE Fanuc DS200TCQAG1B Analog I/O Board
Manufacturer: GE Fanuc
Product Number: DS200TCQAG1B
Category: Analog I/O Board (Mark V Speedtronic)
Series: Mark V Speedtronic RST Series
Function: Analog signal conditioning and conversion for turbine control
Input Signal Types: Thermocouple, mV, ±10V, 4-20mA, vibration signals
Output Signal: 4-20 mA or 0-200 mA (jumper selectable)
Channel Count: 8-16 configurable channels
Redundancy: Triple redundant channel architecture for critical signals
Isolation: 500 V DC between input/output/power
Cold Junction Compensation: Built-in for thermocouple measurement
Configuration: Hardware jumpers (J1/J2 for output range, J5/J6 for current selection)
Diagnostic Interface: RS-232 via J7 for online testing
Communication Bus: 3PL data bus, JE pulse/line signals
Operating Temperature: 0°C to +70°C
Power Requirements: +5V, ±12V from TCPS power board
Form Factor: VME 6U, hot-swappable
Dimensions: 233mm × 160mm
System Compatibility: GE Mark V turbine control for gas/steam turbines
Application: Gas turbine exhaust temperature monitoring, compressor stall detection, LVDT position feedback, bearing vibration monitoring, generator synchronization
Product Description
The GE Fanuc DS200TCQAG1B is an analog input/output (I/O) board designed for the Mark V control system by General Electric (GE). It integrates seamlessly into various industrial automation applications.
Key Features and Specifications
- Analog I/O: Handles analog signals from temperature sensors, pressure transducers, and flow meters.
- Mark V Compatibility: Specifically designed for the GE Mark V control system, ensuring smooth integration.
- Reliability: Withstands harsh industrial environments and delivers dependable performance.
- Customization: Offers various configuration options to meet specific needs.
- Compatibility: May also work with other GE Fanuc modules and systems, depending on requirements.
Applications
The DS200TCQAG1B is used in various industrial applications, including:
- Process Control: Monitors and controls process variables such as temperature, pressure, and flow rate.
- Machine Automation: Controls machine functions based on analog sensor inputs.
- SCADA Systems: Integrates with supervisory control and data acquisition systems for remote monitoring and control.
