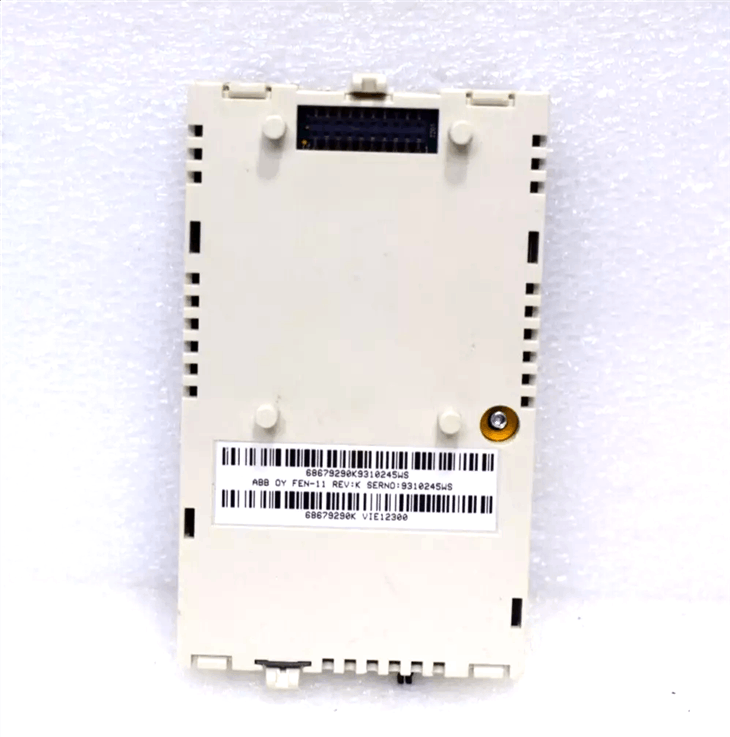

ABB FEN-11 3AFE68784841 Absolute Encoder Interface Module

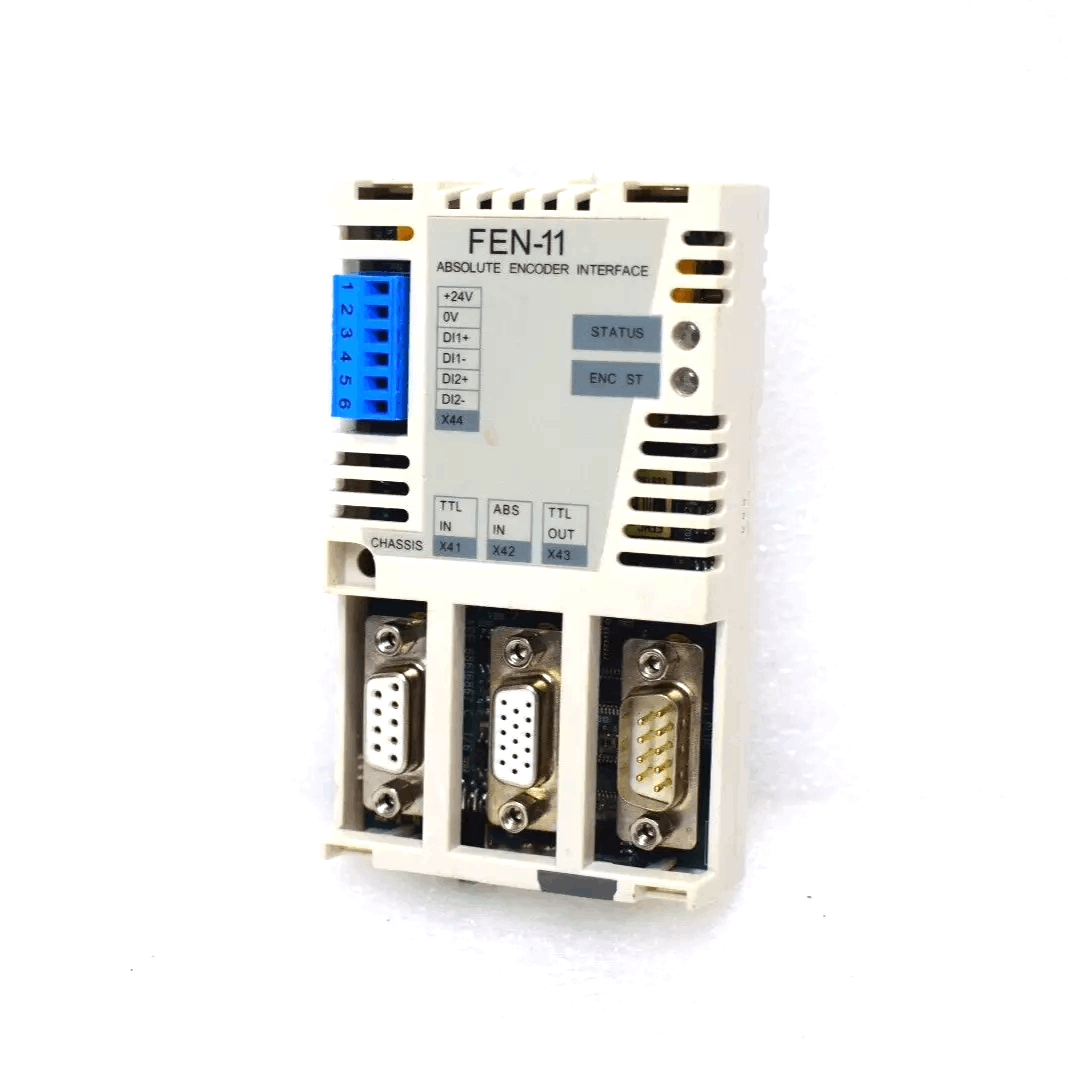

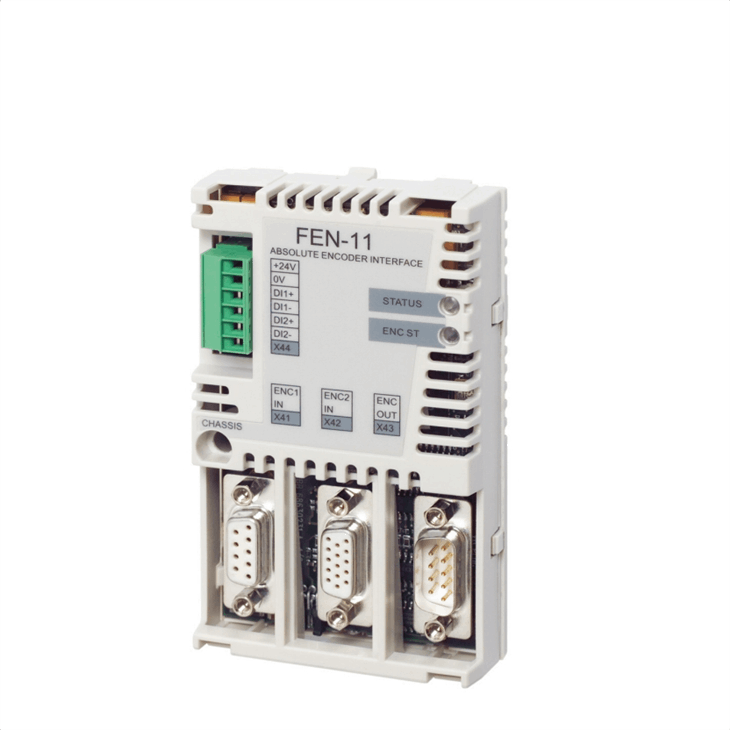

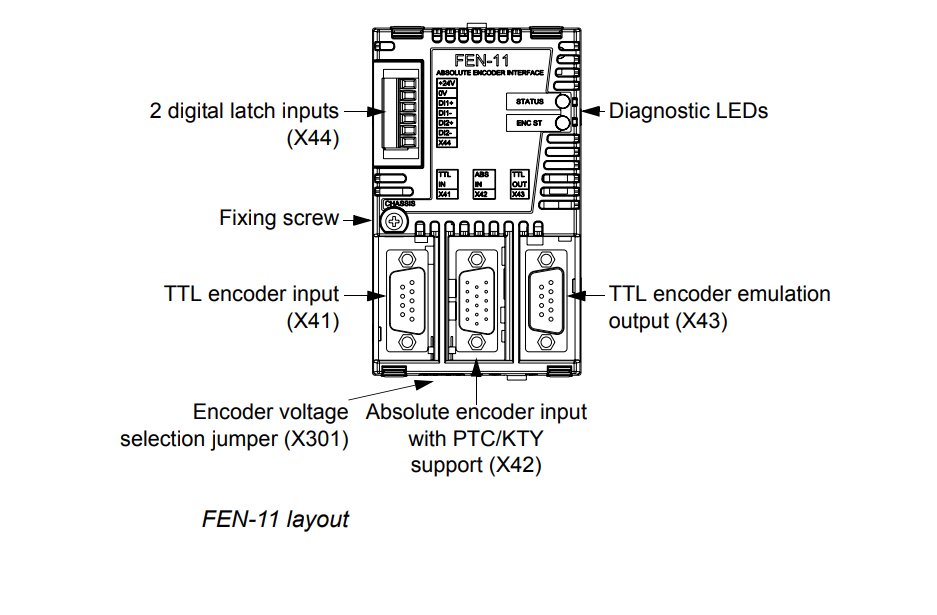

ABB FEN-11 3AFE68784841 absolute encoder interface module provides an interface for absolute encoders with PTC/KTY support, can connect TTL encoders and has TTL encoder simulation output functions, and also supports two digital inputs for position latching. The module needs to be inserted into the option slot of the drive and is fixed by a plastic fixing clip and a screw. The screw is also used to connect to the ground of the cable shield connected to the module and the ground signal connecting the module and the drive. When installed, the signal and power connection to the drive is automatically realized through the 20-pin connector.

Fuctions & Features

• Rich encoder support: ABB FEN-11 module supports multiple types of absolute encoders, including Sin/Cos incremental encoders (1 - 65535 pulses/turn, supporting reference marks and Sin/Cos commutation signals), Endat 2.1 (with or without Sin/Cos signals), Endat 2.2 (with or without Sin/Cos signals), Hiperface, SSI encoders with or without Sin/Cos signals.

• Specific function interface: ABB FEN-11 module has PTC/KTY support function to meet specific temperature detection needs; there is a TTL encoder connection interface and TTL encoder simulation output function, which is convenient for interaction and signal simulation with TTL related devices.

• Position latch function: ABB FEN-11 module supports two digital inputs for position latching, which can accurately record and lock specific position information to provide support for control and positioning.

• Automatic connection feature: During installation, the signal and power connections between the ABB FEN-11 module and the drive are automatically completed through the 20-pin connector, reducing complex wiring and connection operations.

Specification

Appilications of ABB FEN-11 3AFE68784841 Absolute Encoder Interface Module:

• CNC machine tools: When used in CNC machine tools, the ABB FEN-11 module can cooperate with the encoder of the machine tool to control the position and movement trajectory of the tool.

• Elevator and lifting system: In elevator and lifting equipment, the ABB FEN-11 module can monitor the position of the elevator car or lifting platform in real time, and cooperate with the control system to achieve accurate floor positioning and leveling control.

• Textile machinery: The ABB FEN-11 module can be connected to the encoder to monitor and feedback these parameters in real time. Equipment such as looms and spinning machines need to accurately control parameters such as yarn tension, roller speed and position.
