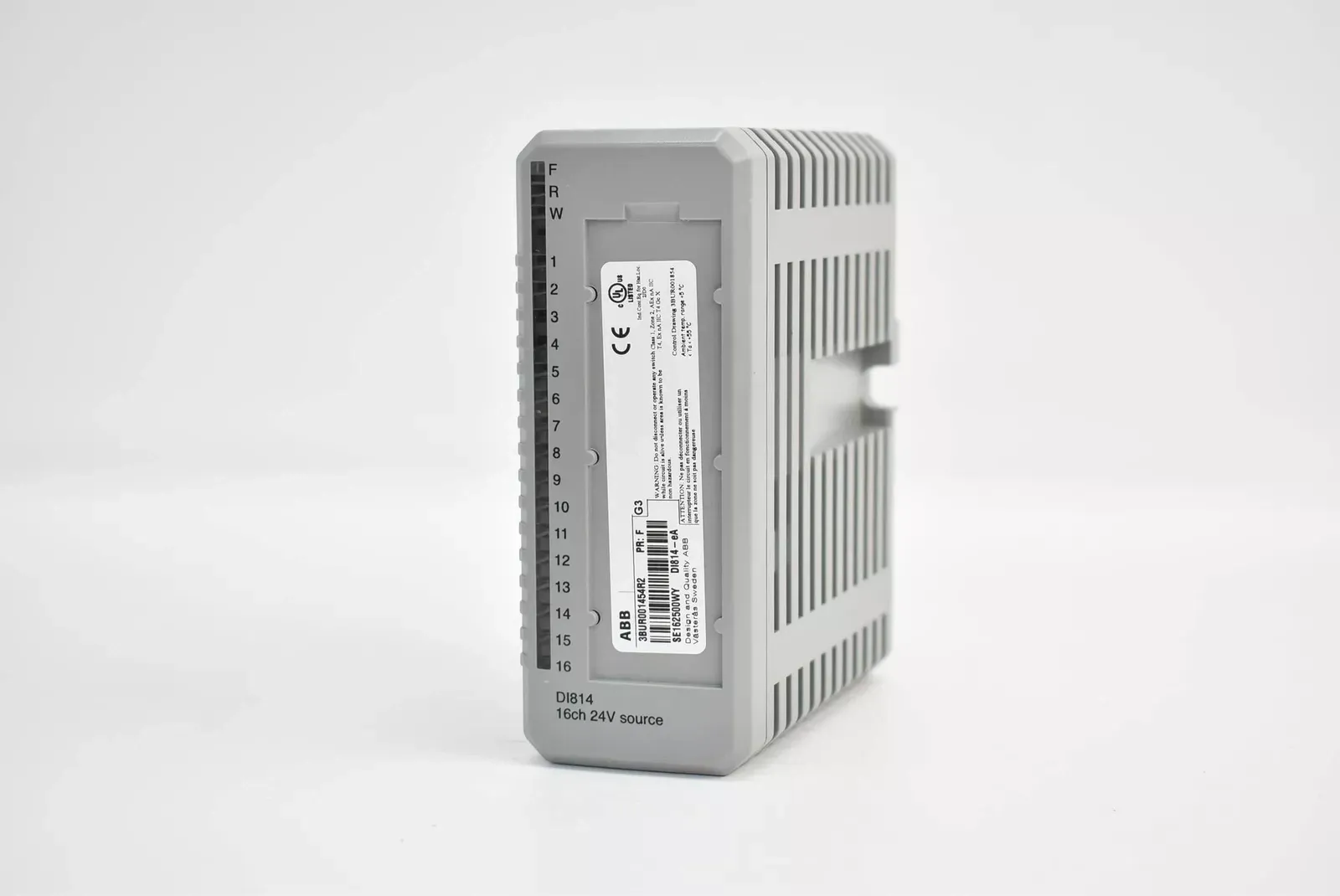

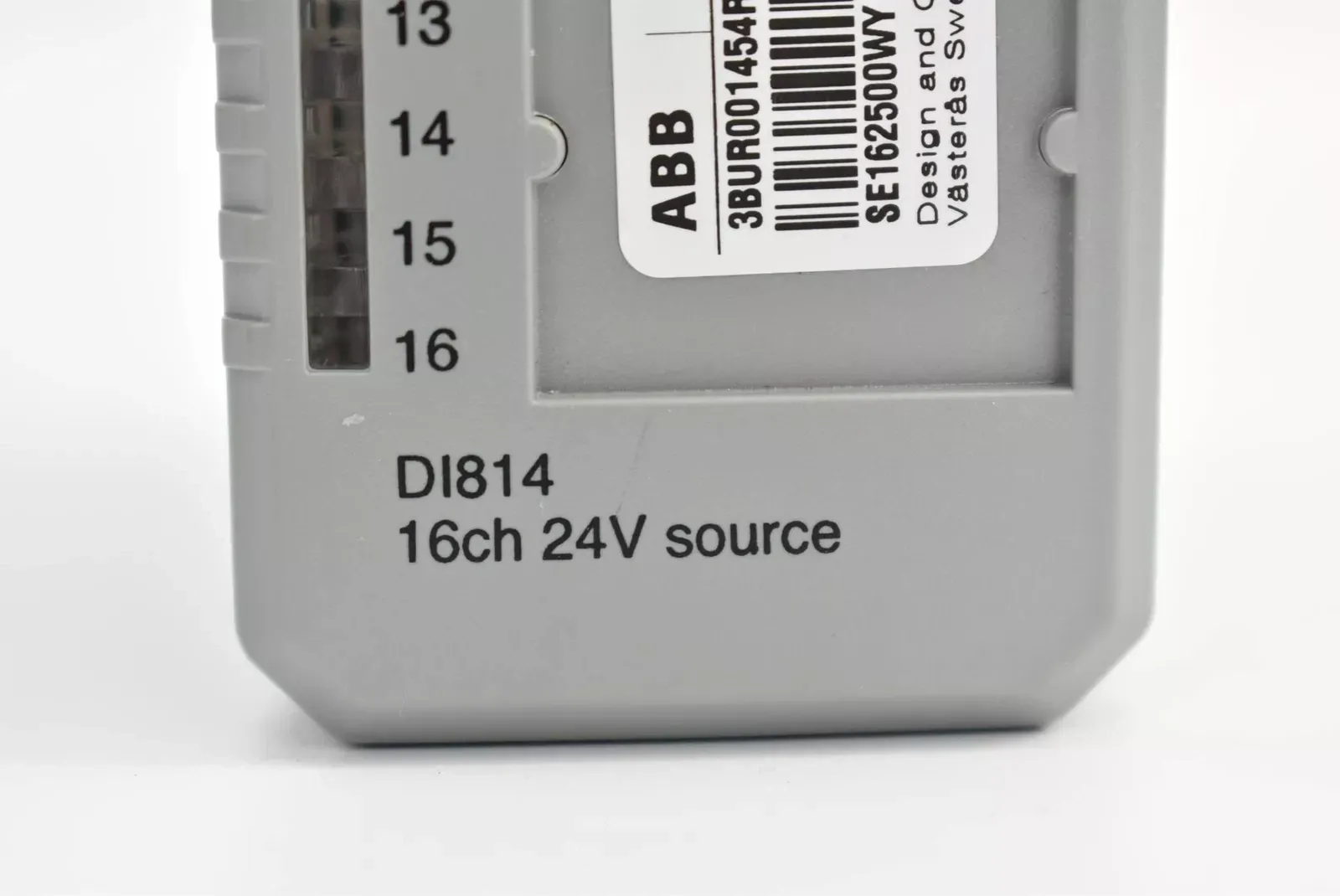

ABB DI814 3BUR001454R1 Digital Input 24V Current 16 Ch
Item Number:DI814 3BUR001454R1
Brand: ABB
Lead Time: In stock
Description:Digital Input 24V Current 16 ch
Payment: T/T
Product Description
ABB DI814 3BUR001454R1 Digital Input Module is designed for industrial applications requiring reliable and accurate digital input handling. It is a 24V DC digital input module with 16 channels, capable of receiving digital signals from various devices, such as switches, sensors, and other control elements.
The input voltage range is 18 to 30 volt dc and the input current source is 6 mA at 24 V. The inputs are divided into two individually isolated groups with eight channels and one voltage supervision input in each group. Every input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier. The process voltage supervision input give channel error signals if the voltage disappears. The error signal can be read through the ModuleBus.
Features
- 16-channel 24V DC input: Supports 16 24V DC input channels, suitable for a variety of industrial applications. Current source input design to ensure signal.
- 2 groups of isolated 8 channels: The input channels are divided into 2 groups, each with 8 channels, with electrical isolation function. Voltage monitoring function to ensure that the input voltage of each group is within a safe range.
- Input status indicator: Each channel is equipped with a status indicator to facilitate real-time monitoring of the input signal status.
Specification
|
Width |
45 mm (1.77") |
|
Depth |
102 mm (4.01"), 111 mm (4.37") including connector |
|
Height |
119 mm (4.7") |
|
Weight |
0.15 kg (0.33 lbs.) |
Environment and certification
|
EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201 |
|
C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2 |
|
ABS, BV, DNV, LR |
|
0 to +55 °C (+32 to +131 °F), approvals are issued for +5 to +55 °C |
|
-40 to +70 °C (-40 to +158 °F) |
|
Degree 2, IEC 60664-1 |
|
ISA-S71.04: G3 |
|
5 to 95 %, non-condensing |
|
55 °C (131 °F), for vertical mounting in compact MTU 40 °C (104 °F) |
Appilications
- Application scenarios of ABB DI814 3BUR001454R1 Digital Input 24V Current 16 Ch Module:
- Industrial automation: used in PLC systems to collect sensor and switch signals. Suitable for production line automation control and monitoring equipment status.
- Process control: In the chemical, oil and gas industries, it is used to monitor and control process parameters and collect field equipment signals to ensure process operation.
- Power system: used in power monitoring systems to collect status signals of circuit breakers, relays and other equipment.
