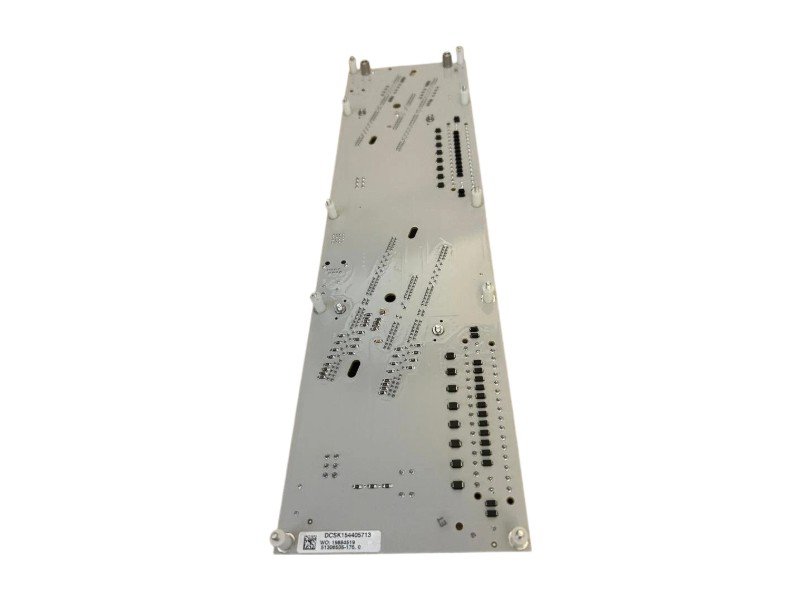

Honeywell FC-IOTA-R24 Redundant I/O Termination Assembly
Item Number:FC-IOTA-R24
Brand:Honeywell
Lead Time: In stock
Description: Redundant I/O Termination Assembly
Payment: T/T
Product Description

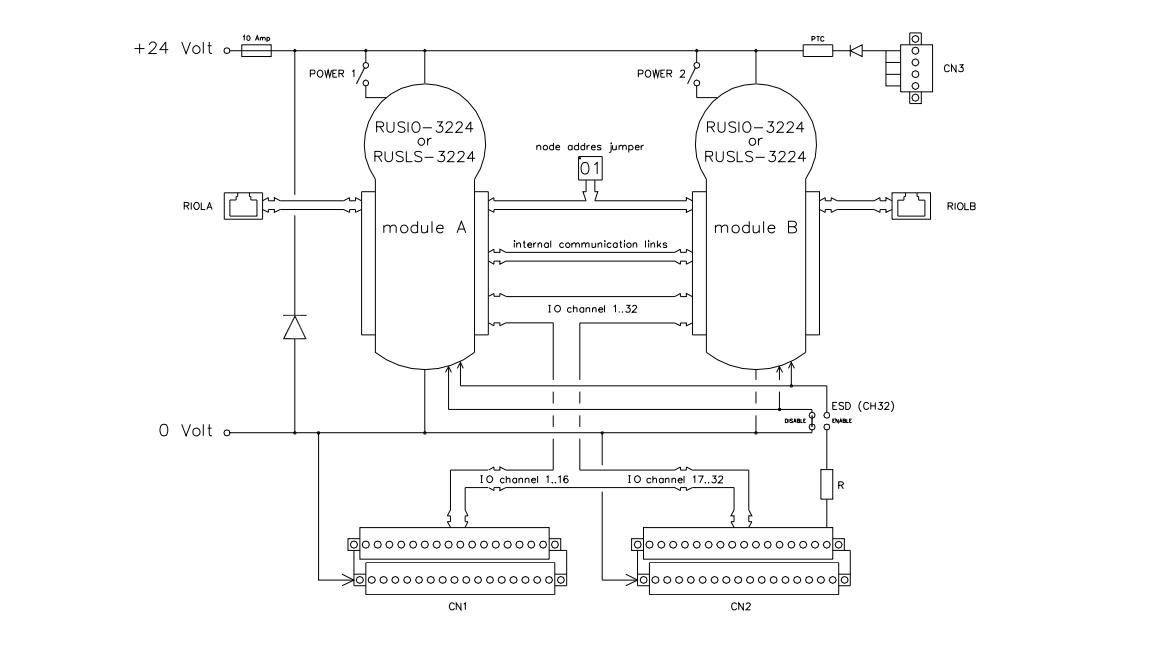

Honeywell FC-IOTA-R24 Redundant I/O Termination Assembly is a universal input/output (I/O) system carrier module that accommodates two redundant RUSIO-3224 or RUSLS-3224 modules, providing 32 universal I/O channels, a dedicated power connector, and a 100MB Ethernet communication interface.
It uses independent switches, jumpers, and links to control the power on and off of the two submodules, set node addresses, and enable/disable the emergency stop (ESD) function. It also supports all I/O types of the submodules.
Function & Features
- Dual Module Support: The Honeywell FC-IOTA-R24 provides two slots for installing two identical I/O modules (RUSIO-3224 or RUSLS-3224), addressed as module 'A' and module 'B'.
- Parallel Operation: Two Honeywell FC-IOTA-R24 I/O modules can be connected in parallel for redundant operation, with each module independently controlling all I/O channels.
- Dedicated Power Supply: The Honeywell FC-IOTA-R24 provides four identical V+ connectors (CN3) specifically for powering active analog input devices (such as two-wire transmitters).
Specifications
| Item | Details |
|---|---|
| Model number | FC-IOTA-R24 |
| Order number | 51306505-175 |
| Pollution | Pollution degree 2 or better |
| Reverse polarity protection | parallel diode (blows the fuse) |
| Rating | 10 Amp, 58V |
| Type | TAC ATO Style Blade Fuse |
| Dimensions (H x W x D) | 64 x 120.7 x 443.2 mm2.52 x 4.75 x 17.45 in |
| Weight |
0.57 kg 1.26 lbs |
FAQ
Q: What is the payment method?
A: T/T
Q: Is technical support available?
A:Yes, we have a professional technical team to address technical issues.
Q: What is the warranty?
A: 1 year
Q: What is the return and exchange policy?
A: Returns or exchanges are accepted within 7 days of receiving the goods if there are any quality issues, excluding damage caused by human error or misuse.
Q:What are the available shipping methods?
A: FedEx, DHL, UPS, and others.
